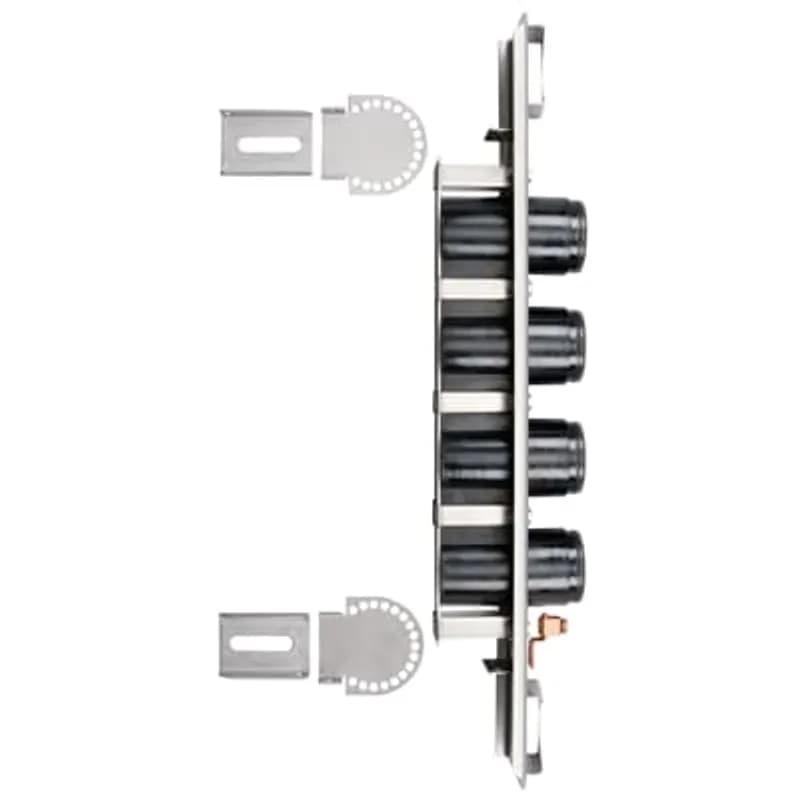

ABB Installation Products K1601WJ4-AB 15/25 kV, 200 Amp Loadbreak, 4-Way Well Junction, Carries Current greater than 1000 Volts.

The K1601WJ4 is a 15/25kV, 200 Amp Loadbreak 4-Way Well Junction.

For the 15kV voltage class, the impulse withstand (BIL) is 95kV.

Add "-5" at the end of the catalog number for junctions with "U" style mounting straps only.

Specify K1601WJ4 for the 15/25kV, 200 Amp, 4-way Loadbreak Junction.

For the 25kV voltage class, the impulse withstand (BIL) is 125kV.

For 25kV class, the operating voltage is 15.2kV Max Phase-to-Ground and 26.3kV Max Phase-to-Phase.

For 15kV class, the operating voltage is 8.3kV Phase-to-Ground and 14.4kV Max Phase-to-Phase.

The K1601WJ4 meets ANSI/IEEE Standard 386, Latest Revision.

It is designed to mate with Elastimold products including 1601A4, 2701A4, 1602A3R, and 276BWP.

The K1601WJ4 provides mating for Elastimold® Elbow connectors through a variety of inserts.
