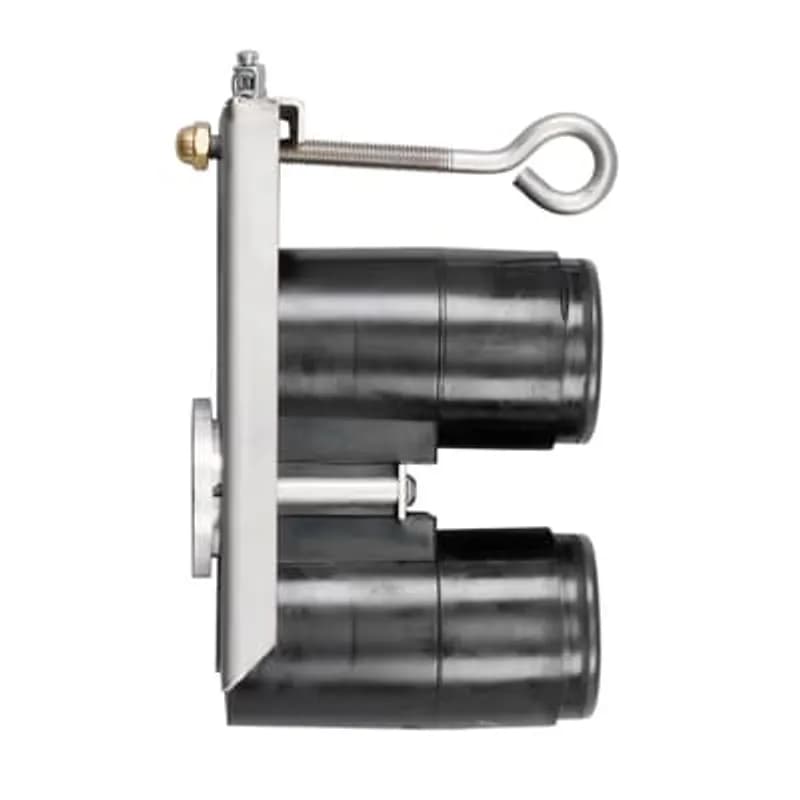

ABB - Installation Products K1601WFTV-BT - 15/25 kV, 200 Amp, Loadbreak, Feed-Thru Well Bracket, Vertical with Bail Tabs

ABB Installation Products K1601WFTV-BT 15/25 kV, 200 Amp, Loadbreak, Feed-Thru Well Bracket, Vertical with Bail Tabs

UPC: 783786970285


Documents & Media
Installation InstructionsSpecification SheetManufacturer Product Website

Contact for Pricing

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

ABB K1601WFTV-BT is a vertical feed-thru well bracket for 15/25 kV medium-voltage systems, rated 200 Amp continuous current. It enables safe loadbreak connection/disconnection for utility/industrial power distribution. Feed-thru design allows conductor pass-through for power line extension or multi-circuit connections. Integrated bail tabs secure mounting hardware in vertical installations. Features 95kV BIL impulse withstand (1.2x50 µs wave) and 34kV AC 1-minute withstand. Supports 200 Amp continuous/loadbreak operation with 10kA symmetrical momentary and fault close capability over 10 cycles. Adjustable bracket allows precise feed-thru tilt and parking stand positioning. Compatible with 15kV class elbow connectors, including Elastimold 370TR test rod, 160GLR grounding elbow, and 160DR insulated cap for testing, grounding, or dead-ending. Fully shielded, submersible design ensures reliable performance in harsh environments.
  • 15/25 kV voltage class with 200 Amp continuous current rating
  • Loadbreak capability for safe energized operation
  • Vertical feed-thru design with adjustable bracket for optimal positioning
  • Meets ANSI/IEEE Standard 386 with 95kV BIL impulse withstand
  • Compatible with 15kV class elbow connectors and Elastimold accessories

Specifications

Application
15/25 kV, 200 Amps
Temperature Rating, Maximum
149 F
Temperature Rating, Maximum
65 C
Temperature Rating, Minimum
-4 F
Temperature Rating, Minimum
-20 C
Type
Feed-Thru Well
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
1.0000 L
Package Weight (Metric)
0.4540 kg
15/25kV, T-Splice 6-3/4 inch Long Bail Assembly, Made of Stainless Steel, Used for Assisting Cable to Transformer Connections. Non-Current Carrying. The 150TB2 bailing assembly kit consists of a modified hold down bail for securing Elastimold® tee splice K150T to a K150DP Deadbreak insulating plug. This assembly provides positive hold down force between the tee splice and the insulating plug.

150-TB-2

15/25kV, T-Splice 6-3/4 inch Long Bail Assembly, Made of Stainless Steel, Used for Assisting Cable to Transformer Connections. Non-Current Carrying. The 150TB2 bailing assembly kit consists of a modified hold down bail for securing Elastimold® tee splice K150T to a K150DP Deadbreak insulating plug. This assembly provides positive hold down force between the tee splice and the insulating plug.
HMI door mounting kit with 15M cable

181B2258

HMI door mounting kit with 15M cable
Polarizing Cover / Hermaphroditic Cover, Black, Nylon, 8 Position, AMPMODU IV/V

103350-4

Polarizing Cover / Hermaphroditic Cover, Black, Nylon, 8 Position, AMPMODU IV/V
900 Amp, 35kV, 600 Series Elbow with Test Point Housing only, with Stud.

776BLR

900 Amp, 35kV, 600 Series Elbow with Test Point Housing only, with Stud.
Red Plastic Cover for TS Elbows, Polyethylene Protective Cap. 1 inch Deep x 2.235 to 2.401 inside Diameter. Narrows Slightly on Inside. Has Flange around Cap Edge.

1600-13-7

Red Plastic Cover for TS Elbows, Polyethylene Protective Cap. 1 inch Deep x 2.235 to 2.401 inside Diameter. Narrows Slightly on Inside. Has Flange around Cap Edge.
200 Amp, 15kV, Loadbreak Insulated Parking Bushing with ground

164SOP-G

200 Amp, 15kV, Loadbreak Insulated Parking Bushing with ground
200 Amp, 15kV, Loadbreak Insulated Parking Bushing, extended

164SOP-E

200 Amp, 15kV, Loadbreak Insulated Parking Bushing, extended
Washer For Feed Through, 15kv, Flange, 1 inch Diameter. Stainless Steel. .165 (8 Gage). Center Hole .406 inch Diameter. Thickness .025 inch.

167-55-3

Washer For Feed Through, 15kv, Flange, 1 inch Diameter. Stainless Steel. .165 (8 Gage). Center Hole .406 inch Diameter. Thickness .025 inch.

Frequently Asked Questions

What is the primary application of the K1601WFTV?

The K1601WFTV is a space-saving, fully shielded, and submersible insulated connector designed for congested areas inside transformers or switchgear.

What is the corona extinction voltage for the K1601WFTV?

The corona extinction voltage is 11kV AC at 3pC sensitivity for the 15kV class and 19kV AC at 3pC sensitivity for the 25kV class.

What is the 15-minute DC withstand rating?

The 15-minute DC withstand rating is 53kV DC for the 15kV class and 78kV DC for the 25kV class.

What is the momentary and fault close rating?

The momentary and fault close rating is 10kA Sym for 10 cycles for both 15kV and 25kV voltage classes.

What items are included in the K1601WFTV kit?

Each kit contains one K1601WFTV feed-thru body, two units of Lubricant 82-08, and one Installation Instruction IS-0505.

What is the impulse withstand rating for the K1601WFTV?

The impulse withstand rating is 95kV BIL for the 15kV class and 125kV BIL for the 25kV class.

What is the one-minute AC withstand rating?

The one-minute AC withstand rating is 34kV AC for the 15kV class and 40kV AC for the 25kV class.

What is the continuous current rating for the K1601WFTV?

The K1601WFTV has a continuous and loadbreak current rating of 200 Amps for both 15kV and 25kV voltage classes.

What is the maximum operating voltage for the 25kV class?

For the 25kV voltage class, the maximum phase-to-ground operating voltage is 15.2kV, and the maximum phase-to-phase is 26.3kV.

What is the maximum operating voltage for the 15kV class?

For the 15kV voltage class, the maximum phase-to-ground operating voltage is 8.3kV, and the maximum phase-to-phase is 14.4kV.

How to Install the K1601WFTV-BT Well Feed-Thru/Grounding Device

Installation guide for mounting and wiring the K1601WFTV-BT well feed-thru/grounding device.

Estimated time: 30m

Tools needed:

Hotstick, Screwdriver

Supplies needed:

Ground lead (No. 14 copper wire or equivalent), Lubricant (supplied), Mounting hardware (supplied)

  1. Prepare for Installation

    DANGER: All apparatus must be de-energized during installation or removal of part(s). Inspect parts for damage, rating and compatibility with mating parts. Check contents of package to ensure they are complete and undamaged. Have all required tools at hand and maintain cleanliness throughout the procedure.

  2. Connect Ground Lead

    Insert the ground lead into the grounding lug provided on the mounting hardware and tighten the lug. The ground lead should be No. 14 copper wire or equivalent. Connect the opposite end of the lead to ground, leaving enough slack to operate with a hotstick.

  3. Prepare Bushing Wells

    Remove the protective shipping caps from the bushing wells. Inspect the bushing wells to ensure they are dry and free from all contaminants. Lubricate the well interface area with the supplied lubricant or ELASTIMOLD approved lubricants. DO NOT SUBSTITUTE. Other lubricants may be harmful to this product and its mating products.

  4. Install Bushings

    Install the bushings into the wells following the installation instructions included with the bushing. IMPORTANT: Protective shipping caps must not be on the bushing wells of the feed-thru when the feed-thru is being used.

  5. Mount the Device

    Attach the feed-thru eye firmly to a hotstick. Using the hotstick, slide the feed-thru onto the parking stand. Unlock the hotstick and back off, to allow space for the eyebolt to be tightened. Tighten the eyebolt by rotating the hotstick clockwise until snug. DO NOT OVERTIGHTEN. Release the hotstick.

  6. Final Checks and Protection

    WARNING: IF ALL OPERATING INTERFACES ARE NOT UTILIZED, AN ELASTIMOLD INSULATED CAP OR INSULATED PLUG MUST BE INSTALLED BEFORE ENERGIZING. DO NOT USE the protective shipping covers for this function as they are not insulated and are only intended to keep the operating interface surfaces clean during handling and installation.
