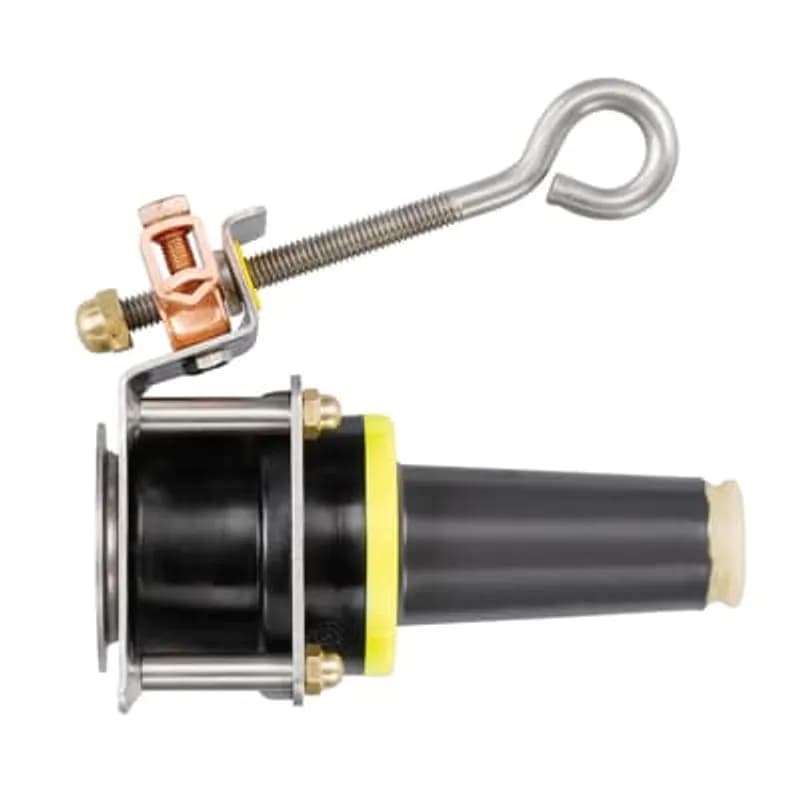

ABB Installation Products 164SOP-G 200 Amp, 15kV, Loadbreak Insulated Parking Bushing with ground
UPC: 075114146272
Documents & Media
Contact for Pricing
Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.
Overview
- 200 Amp current rating
- 15 kV voltage rating
- Loadbreak functionality
- Insulated parking bushing design
- Integrated ground connection
Specifications
Application | 15 kV, 200 Amps |
Current Rating | 200 A |
Temperature Rating, Maximum | 149 F |
Temperature Rating, Maximum | 65 C |
Temperature Rating, Minimum | -40 F |
Temperature Rating, Minimum | -40 C |
Type | Insulated Parking Bushing |
Voltage Rating | 15 kV |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 1.0000 L |
Package Weight (Metric) | 0.4540 kg |
K675TBC
15/25kV, 900 Amp, Deadbreak Bushing for In-Air Applications (Pad-Mounted or Vault-Type or Submersible Transformers or Switchgear). One Factory installed 5/8-11 UNC-2A Stud included, other Stud must be Purchased Separately. Overall Length 13.75 inch, Diameter 4.50 inch. Molded Epoxy with Stainless Steel Flange. Boot and Collar.
167-55-3
Washer For Feed Through, 15kv, Flange, 1 inch Diameter. Stainless Steel. .165 (8 Gage). Center Hole .406 inch Diameter. Thickness .025 inch.1601-492
25-35kV, Bushing Clamp Only, Carbon Steel with Zinc Chromate Plating. Three Sided with Slots in each Corner. 0.4 inch Flange.1601-352TN
15-25-35 kV, Stud, with Hex. Chromium Copper, Matte Finish Electro-Tin Plate. Length 1-5/16 inch, Thread 3/8-16 UNC-2A. Threaded Length 1-1/16 inch.1601-492-2
25-35kV, Bushing Clamp Only, 304 Stainless Steel - no Plating. Three Sided with Slots in each Corner. 0.4 inch Flange.138-366-5-9
TCJ (Transmission Cable Joint) Heat Sink Housing, Outside Diameter 2.75 inch, Bore Diameter 1.25 inch.How to Install the ELASTIMOLD 160DRG/167DRG Insulated Cap with Ground Lead
This guide provides step-by-step instructions for safely installing the ELASTIMOLD 160DRG and 167DRG Insulated Caps with Ground Lead. These caps are designed for insulating, shielding, and watersealing 15kV class loadbreak bushing interfaces. Installation should only be performed by competent personnel trained in high voltage safety practices.
Estimated time: 20m
Tools needed:
Hotstick (fully insulated, 8-foot long)
Supplies needed:
ELASTIMOLD 160DRG or 167DRG Insulated Cap with Ground Lead, ELASTIMOLD approved lubricant
- Connect Electrostatic Grounding Wire
Ensure all apparatus is de-energized during installation. Connect the free end of the electrostatic grounding wire to the system ground. Leave enough slack for hot-stick operation of the insulated cap. CAUTION: Train the grounding wire so it does not contact the bushing interface during operation. WARNING: If the ground lead disconnects during operation, do not attempt to reattach without first pulling the insulated cap off the bushing with the hotstick.
- Prepare Insulated Cap
Remove the protective cover from the insulated cap. Lubricate the cap’s internal mating surface using only the supplied lubricant or ELASTIMOLD approved lubricants. Do not substitute other lubricants, as they may be harmful. Keep the internal mating surface free from dirt and grime. Always replace the protective cover when the cap is not in use.
- Attach and Seat Insulated Cap
Firmly attach a fully insulated, eight-foot long hotstick to the insulated cap's pulling eye. Insert the male contact of the insulated cap into the loadbreak bushing. Push the cap home with a fast, firm, straight motion. Ensure it is fully mated, with the locking ring securely seated. Detach the hotstick from the insulated cap.
