UPC: 783786655953
Contact for Pricing
Overview

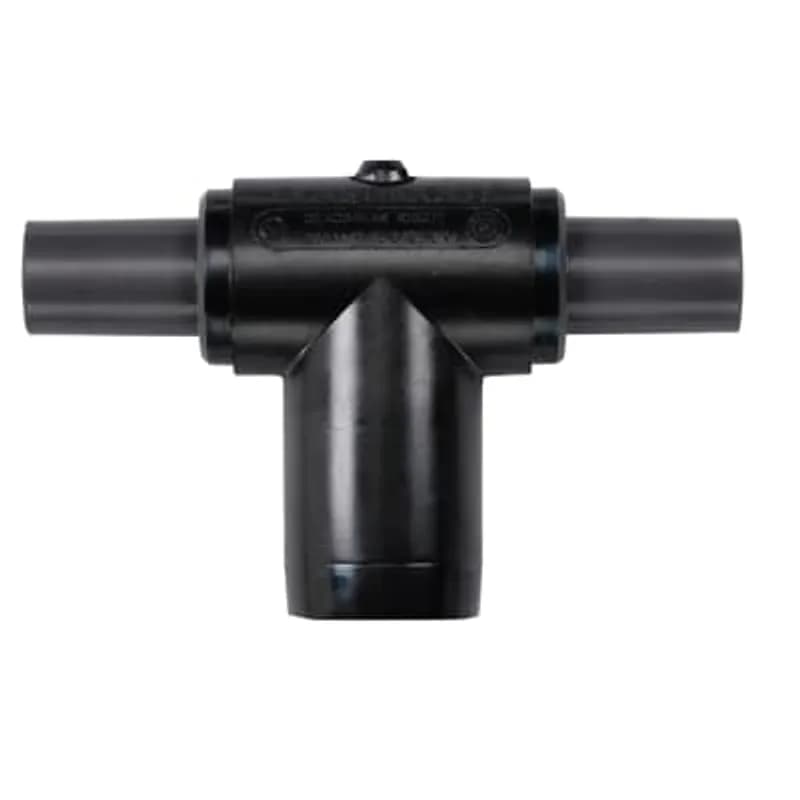

- ABB Deadbreak Tee Connector, SKU: K150T3
- 200 Amp current rating
- 15.2/26.3 kV voltage rating
- EPDM Peroxide Insulation Material
- 7.625 inch width, 4.488 inch socket center height
Specifications
Application | 15/25 kV, 200 Amps |
Connection Type | Deadbreak |
Current Rating | 200 A |
Material | EPDM Peroxide |
Series | K150T3 |
Size | 7.625 inch width, 4.488 inches from bottom edge to Center of Socket |
Temperature Rating, Maximum | 149 F |
Temperature Rating, Maximum | 65 C |
Temperature Rating, Minimum | -40 F |
Temperature Rating, Minimum | -40 C |
Type | Tee Connector |
Voltage Rating | 15.2/26.3 kV |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 1.9700 L |
Package Weight (Metric) | 0.8940 kg |
MCV-6MP-FW-CC
MCV, M23, Field Wireable, 6 Pole, Male Straight, Crimp, 20A, Crimp pins sold separately
225243-E
4 Position Circular Connector, Cable-to-Board, Sealable, Printed Circuit Board, Power, Signal & High Speed Data, Board Mount, A Code, M12 Connector
RSK101
One-Piece Grounding Connector, Shield Diameter Range 1.27mm-2.28mm, Color Red, Copper, Tin Plated, Polyester InsulationFrequently Asked Questions
What are the voltage and current ratings for K150T?
The K150T tee splice is rated for 15/25kV voltage classes and has a continuous current rating of 200 Amps.
What are the operating voltage limits for 15kV systems?
For 15kV systems, the maximum phase-to-ground operating voltage is 8.3kV, and the maximum phase-to-phase is 14.4kV.
What are the operating voltage limits for 25kV systems?
For 25kV systems, the maximum phase-to-ground operating voltage is 15.2kV, and the maximum phase-to-phase is 26.3kV.
What are the operating voltage limits for 25kV systems?
For 25kV systems, the maximum phase-to-ground operating voltage is 15.2kV, and the maximum phase-to-phase is 26.3kV.
What are the operating voltage limits for 15kV systems?
For 15kV systems, the maximum phase-to-ground operating voltage is 8.3kV, and the maximum phase-to-phase is 14.4kV.
What are the voltage and current ratings for K150T?
The K150T tee splice is rated for 15/25kV voltage classes and has a continuous current rating of 200 Amps.
What are the operating voltage limits for 15kV systems?
For 15kV systems, the maximum phase-to-ground operating voltage is 8.3kV, and the maximum phase-to-phase is 14.4kV.
What are the operating voltage limits for 25kV systems?
For 25kV systems, the maximum phase-to-ground operating voltage is 15.2kV, and the maximum phase-to-phase is 26.3kV.
What are the voltage and current ratings for K150T?
The K150T tee splice is rated for 15/25kV voltage classes and has a continuous current rating of 200 Amps.
What is the Basic Impulse Level (BIL) for 25kV class?
For the 25kV voltage class, the Basic Impulse Level (BIL) is 125kV.
How to Install the K150T3 Deadbreak Tee Splice
Instructions for installing and connecting the K150T3 deadbreak tee splice, ensuring proper assembly and sealing.
Estimated time: 45m
Tools needed:
Silicone grease applicator, Bailing assembly installation tool (if applicable)
Supplies needed:
K150T3 Tee Splice kit, Silicone lubricant (supplied), Nylon Venting Rod (supplied), ELASTIMOLD bailing assembly (recommended, sold separately), Mating connectors (elbows, receptacles, or caps)
- Inspect and Prepare Components
Verify that all components in the K150T3 kit are present and undamaged. Ensure mating parts are compatible with the tee splice and cable. Read all installation instructions before beginning. Maintain a clean work area.
- Lubricate and Protect Plug Ends
Apply the supplied silicone lubricant to the plug ends of the K150T3. Do not substitute lubricants. Keep protective caps on the plug ends until final connections are made to prevent contamination.
- Position Mating Connectors and Train Cables
Ensure that the cables connected to the mating parts are properly trained. The cable entrances should not be strained, and the cables should be positioned at a 90-degree angle from the center line of the K150T3.
- Assemble Mating Connectors to Tee Splice
Insert the supplied nylon venting rod into the receptacle portion of a mating connector. Push the connector onto the corresponding tee body junction until it is fully seated. Remove the nylon rod to allow air to escape. Repeat for the other end of the tee body junction.
- Verify Proper Assembly and Bailing
Confirm that the gap between the skirts of the mating part and the tee splice is 3/32" (2.4mm) or less. This gap is critical for proper bailing. If using a bailing assembly, follow its specific installation instructions to secure the connectors and prevent separation due to cable movement. Ensure all apparatus is de-energized before proceeding.
