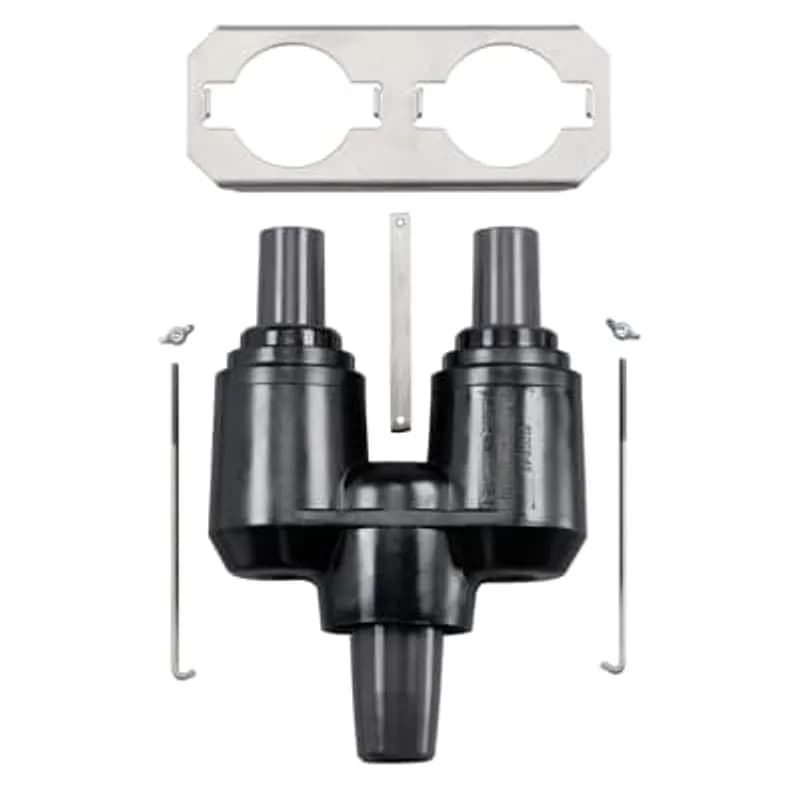

ABB Installation Products K1502-A1 15/25kV 200 Amp, Deadbreak Feed-Thru Insert, Bails are required, but not included, order…
UPC: 783786625642
Contact for Pricing
Minimum Qty: 5
Multiplier: 5
*Contact for lower quantities*
Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.
Overview
- 15/25kV voltage rating with 200 Amp continuous current capacity
- Fully rotatable 360° for flexible cable routing and installation
- Meets ANSI/IEEE Standard 386 for 15kV and 25kV class systems
- Deadbreak design enables safe de-energized connections
- Compatible with Elastimold® universal bushing wells and specified mating products
Specifications
Application | Fully-shielded, fully submersible separable insulated connector designed for de-energized operation. The feed-thru insert fits a standard ANSI bushing well interface. Designed for use as an apparatus bushing interface |
Material | EPDM-Rubber |
Size | 9.82 inch (249.4 mm) long, 3.22 inch (81.8 mm) wide, 8.00 inch (203.2 mm) wide |
Special Features | 15/25kV, 200 Amp Deadbreak Rated. Fits standard Elastimold bushing well. Peroxide-cured insulation and jacket. Provision for ground wire connection. Provides extra deadbreak tap for well type connection. Rotatable for 360 degree mounting |
Standard | ANSI/IEEE 386 |
Temperature Rating, Maximum | 149 F |
Temperature Rating, Maximum | 65 C |
Temperature Rating, Minimum | -40 F |
Temperature Rating, Minimum | -40 C |
Type | Feed-Thru Insert |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 6.0700 L |
Package Weight (Metric) | 2.7530 kg |
K675TBC
15/25kV, 900 Amp, Deadbreak Bushing for In-Air Applications (Pad-Mounted or Vault-Type or Submersible Transformers or Switchgear). One Factory installed 5/8-11 UNC-2A Stud included, other Stud must be Purchased Separately. Overall Length 13.75 inch, Diameter 4.50 inch. Molded Epoxy with Stainless Steel Flange. Boot and Collar.
K150S
15/25kV 200 Amp, Deadbreak In-Line Junction, Bails are required, but not included, order separately.
200AT
15-35kV 200 Amp Loadbreak Assembly Tool, internal torquing feature. 12.34 inch long x 3.00 inch wide. 5/16 inch Hex Drive. Has Eye instead of T-Handle.
K1601WJ4-N
25kV, 200 Amp, Deadbreak Junction Well, with Stainless Steel Brackets and Hold Down Strap, No Parking StandFrequently Asked Questions
What is the voltage rating of the K1502-A1?
The ABB K1502-A1 has a voltage rating of 15/25kV.
What is the current capacity of this feed-thru insert?
The K1502-A1 is rated for 200 Amps.
Does the K1502-A1 include bails for installation?
No, bails are required for installation but are not included with the K1502-A1. They must be ordered separately.
Can the feed-thru insert be positioned in any direction?
Yes, the K1502-A1 is fully rotatable, allowing for 360-degree positioning.
What is the purpose of the bail assembly?
The bail assembly is required to secure the feed-thru insert to the bushing well.
How to Install the K1502A1 Deadbreak Feed-Thru Insert
This guide provides step-by-step instructions for the safe installation and initial setup of the K1502A1 Deadbreak Feed-Thru Insert in a clampable apparatus bushing well. Ensure all apparatus is de-energized before beginning installation.
Estimated time: 1h
Tools needed:
Wire strippers, Connector tool
Supplies needed:
K1502A1 Deadbreak Feed-Thru Insert, Stainless Steel Plate, Bar, Stainless Steel Hook Bolts, Stainless Steel Wing Nuts, Lubricant (supplied), Copper wire No. 14 AWG (2.5mm²) or equivalent, Suitable connector for grounding wire
- Check Bushing Well Mounting Bolt Height
When installing the K1502A1 feed-thru insert in a clampable apparatus bushing well, check the height of the mounting bolts. Ensure hardware does not protrude more than 1/2 inch (12mm) above the top of the apparatus bushing well. If bolts protrude excessively, consult the apparatus manufacturer for proper shortening methods.
- Inspect and Lubricate Components
Inspect the apparatus bushing well to ensure it is dry and free from all contaminants. Lubricate the bushing well, its outer well surface, and the bushing well interface and cuff area of the feed-thru insert using only the supplied lubricant or ELASTIMOLD approved lubricants. DO NOT SUBSTITUTE other lubricants, as they may harm the product and its mating products.
- Install and Align Feed-Thru Insert
Place the lubricated portion of the feed-thru insert into the apparatus bushing well. Rotate the feed-thru insert clockwise until it is fully seated. DO NOT FORCE or overtighten, as this may damage the bushing well threads. The insert has a special 180-degree adjustment feature; rotate it counter-clockwise up to a half turn to achieve the desired alignment. A definite stop will indicate the end of the adjustment range.
- Secure Feed-Thru Insert with Mounting Hardware
Assemble the hook bolts into the bushing well tabs. While holding the plate in position, slide the bar over the hook bolts and then assemble the wing nuts. Tighten the wing nuts securely by hand.
- Install Electrostatic Grounding Wire
Push a length of No. 14 AWG (2.5mm²) copper wire, or equivalent, through one of the grounding tabs on the feed-thru insert. Form a small loop and twist it tight, being careful not to damage the conductive shield. Connect the free end of the wire to the system ground using a suitable connector. Ensure the grounding wire does not contact the bushing interface, adjacent bushing interfaces, or interfere with accessories on nearby parking stands.
- Prepare for Mating Products and Connect
Remove any protective shipping covers from the feed-thru insert. Thoroughly wipe the bushing interface clean of any contaminants and lubricate it. Install and bail the mating products (such as elbows, elbow arresters, or insulated caps) to the feed-thru insert, following the specific instructions provided with those mating products.
