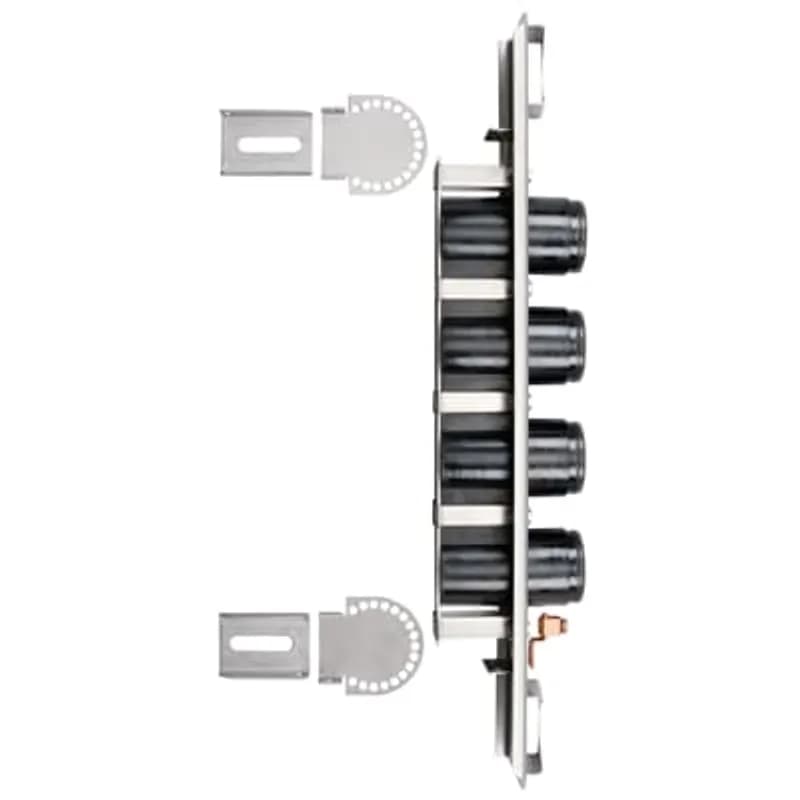

ABB Installation Products K1601WJ4-N 25kV, 200 Amp, Deadbreak Junction Well, with Stainless Steel Brackets and Hold Down…

The K1601WJ4 is a 15/25kV, 200 Amp Loadbreak 4-Way Well Junction.

For the 15kV voltage class, the operating voltage is 8.3kV Phase-to-Ground, with a maximum phase-to-phase of 14.4kV.

The junction is supplied with a replaceable stud. A replacement stud can be ordered separately by specifying 1000-150.

To order junctions with "U" style mounting straps only, add "-5" at the end of the catalog number.

To order the standard 15/25kV, 200 Amp, 4-way Loadbreak Junction, specify K1601WJ4.

The BIL is 95kV for the 15kV class and 125kV for the 25kV class.

For the 25kV voltage class, the maximum phase-to-ground operating voltage is 15.2kV, with a maximum phase-to-phase of 26.3kV.

The K1601WJ4 junction meets ANSI/IEEE Standard 386, Latest Revision.

Yes, Elastimold® loadbreak junctions are designed for energized or de-energized operation.

The junction includes mounting hardware suitable for both flat and curved mounting positions, allowing up to 60° of inclination.
