UPC: 783786470464
Contact for Pricing
Minimum Qty: 20
Multiplier: 20
*Contact for lower quantities*
Overview

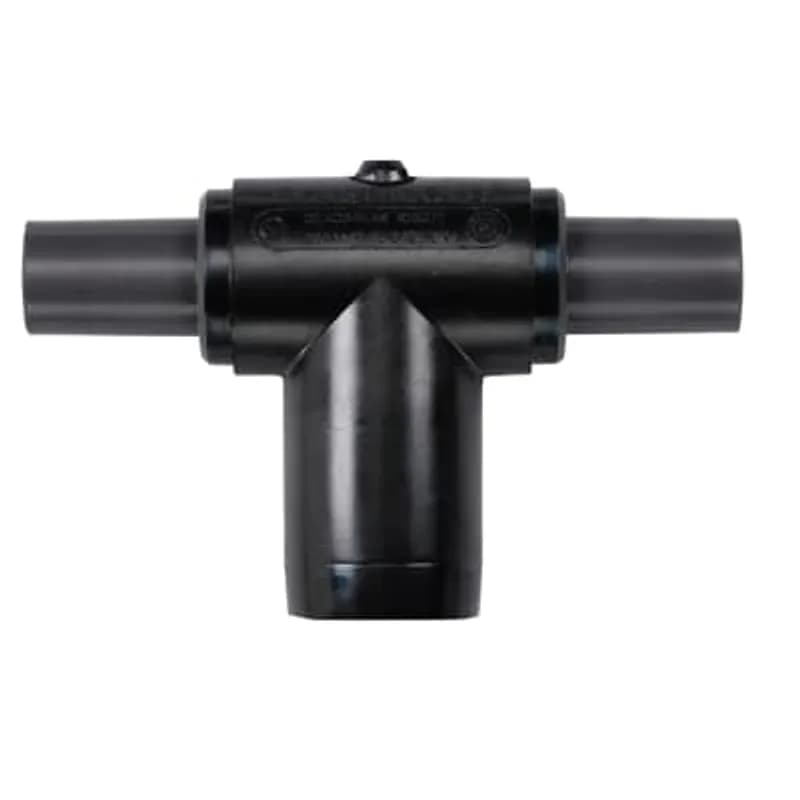

- 15/25kV Voltage Rating
- 200 Amp Current Rating
- Deadbreak Tee Splice Design
- Manufacturer: ABB - Installation Products
- Bails Required (Sold Separately)
Specifications
Application | Fully shielded, fully submersible, separable insulated connectors designed to provide a three-way, dis-connectable cable connection. The dis-connectable feature can be used only when the circuit is de-energized |
Current Rating | 200 A |
Material | EPDM-Rubber |
Size | 3.63 inches (92.0 mm) Top of T Center to Bottom, 7.63 inch (193.7 mm) Wide |
Special Features | 15/25kV, 200 Amp Deadbreak Tee Splice. Fully shielded, fully submersible molded rubber housing. 100 percent peroxide-cured construction includes insulation and conductive EPDM materials. Wide cable range with minimum number of sizes |
Standard | ANSI/IEEE 386 |
Temperature Rating, Maximum | 149 F |
Temperature Rating, Maximum | 65 C |
Temperature Rating, Minimum | -40 F |
Temperature Rating, Minimum | -40 C |
Type | Tee Splice |
Voltage Rating | 15/25kV |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 1.7500 L |
Package Weight (Metric) | 0.7940 kg |
F4-PS-W-NP
Non-Insulated Parallel Splice Connector For Wire Range #4 AWG, Circular Mil Range 33,100-52,600, Length 0.531 Diameter 0.41, Nickel Plated
AS-K1-H6
Power Distribution Block (1) 2/0-14 AWG Primary (6) 4-14 AWG Secondary Power Distribution Blocks are made of high strength, high-conductivity aluminum alloy and are mounted in a high-strength glass-filled polyester base. Each block can stand alone or combine with other blocks to form a multi-block set.
![Splices, Tap Splice, 17 – 13 AWG Wire Size, 1 – 2.5 mm² Wire Size, 2048 – 5178 CMA Wire Size, Brass, Blue, Length 1.374 in [34.9 mm], Bag, ELECTRO-TAP](/_next/image?url=%2Fimage_coming_soon.jpg&w=3840&q=75)
735398
Splices, Tap Splice, 17 – 13 AWG Wire Size, 1 – 2.5 mm² Wire Size, 2048 – 5178 CMA Wire Size, Brass, Blue, Length 1.374 in [34.9 mm], Bag, ELECTRO-TAPPAA4009-3
Parallel Groove Clamp, Hex Head Bolt, Contax Filled, Main 400 kcmil - 1/0 Aluminum 336 ACSR - 1/0 ACSR, 1/0 ACSR - 6 ACSR with Armor TAP 400 kcmil - 1/0 Aluminum 336 ACSR - 1/0 ACSR
PAE3921-79-2SCE
Parallel Groove Clamp, Aluminum Hardware, Pre-filler with Contax Inhibitor, Conductor Range Main 397.5 ACSR - 3/0 STR 2/0 - 6 AR, TAP 2/0 STR - 6 Solid 6 AR
Frequently Asked Questions
What is the voltage rating for the ABB K150T?
The ABB K150T has a voltage rating of 15/25kV.
What is the current rating of the K150T deadbreak tee splice?
The K150T deadbreak tee splice is rated for 200 Amps.
Are bails included with the ABB K150T deadbreak tee splice?
No, bails are required but not included with the ABB K150T and must be ordered separately.
What type of splice is the ABB K150T?
The ABB K150T is a deadbreak tee splice.
Who manufactures the K150T deadbreak tee splice?
The K150T deadbreak tee splice is manufactured by ABB - Installation Products.
How to Install the K150T Deadbreak Tee Splice
This guide provides step-by-step instructions for the safe and proper installation of the K150T Deadbreak Tee Splice, including lubrication, cable training, and connection procedures. Ensure all apparatus is de-energized before beginning.
Estimated time: 30m
Tools needed:
Nylon Venting Rod
Supplies needed:
K150T Deadbreak Tee Splice, Silicone Grease, ELASTIMOLD Bailing Assembly
- De-energize and Inspect Apparatus
Ensure all apparatus is de-energized before beginning installation or removal of parts. Inspect all K150T components and mating parts for any damage, verify their ratings, and confirm compatibility. This product must be installed only by competent personnel trained in high voltage electrical equipment safety practices.
- Prepare Bailing Assembly and Lubricate Plug Ends
Prior to making connections, refer to the appropriate ELASTIMOLD bailing assembly instructions and prepare the bailing assembly. Remove the protective caps from the K150T plug ends and lubricate them thoroughly with the supplied silicone grease. Do not substitute the lubricant. Keep plug ends clean until final connections are made.
- Train Cables and Connect Mating Parts
Before installing mating parts onto the K150T, properly train the cables of these parts to prevent strain on the cable entrances. Ensure cable entrances remain at a 90-degree angle from the K150T's center line. Insert the nylon venting rod into the receptacle portion of the desired mating connector, then push the connector onto the K150T tee body junction as far as possible. Remove the nylon rod to complete the connection. Repeat this procedure for the other end of the tee body junction.
- Verify Connection and Secure with Bailing Assembly
Achieve proper installation when the gap between the skirts of the mating part and the K150T tee body junction is 3/32” (2.4mm) or less. Once the gap is verified, mechanically secure the assembled connectors using the appropriate ELASTIMOLD bailing assembly (e.g., 15TB3 for elbow connectors, 15TB4 for straight receptacles) to prevent separation due to cable movement. Follow the bailing assembly's specific installation instructions.
