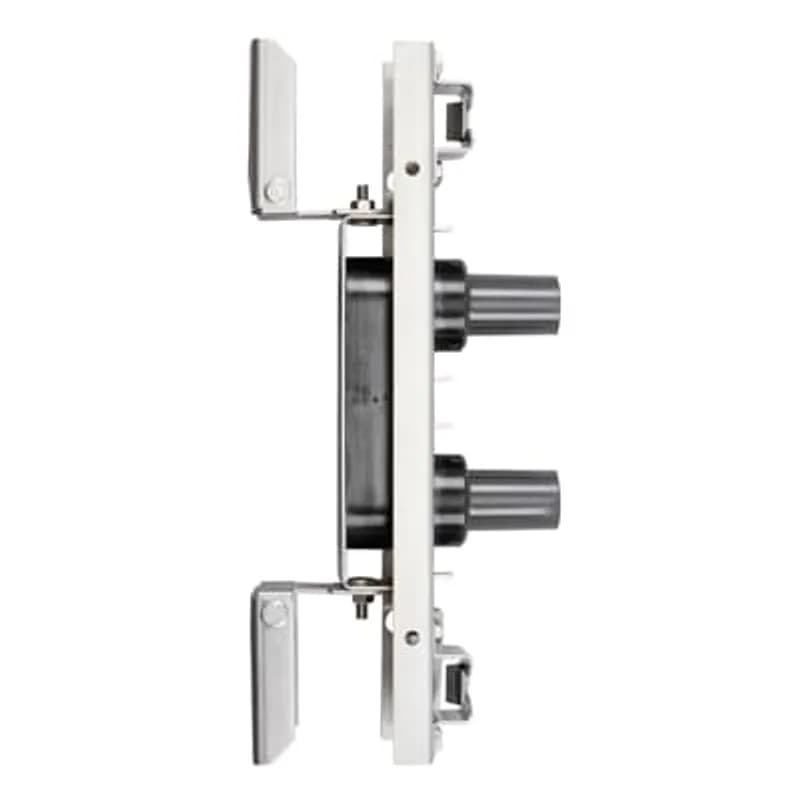

ABB Installation Products K1501J2U-8 200 Amp, 15/25kV, Deadbreak Elbow, 2 Point Junction. Bails are required but not…
UPC: 783786369850
Contact for Pricing
Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.
Overview
- 200 Amp continuous current rating with 10kA momentary withstand
- Fully shielded, fully submersible molded rubber housing with EPDM materials
- 4" center-to-center spacing for precise component alignment
- Compatible with Elastimold® elbow connectors (156LR, K150T, K150DR, K151SR)
- Manufactured by ABB Installation Products for quality assurance
Specifications
Application | 15/25 kV, 200 Amps |
Connection Type | Deadbreak |
Current Rating | 200 A |
Poles | 2 |
Series | K1501J2U |
Size | 4 inches (center to center spacing) |
Temperature Rating, Maximum | 149 F |
Temperature Rating, Maximum | 65 C |
Temperature Rating, Minimum | -40 F |
Temperature Rating, Minimum | -40 C |
Type | Elbow 2 Point Junction |
Voltage Rating | 15/25 kV |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 0.0100 L |
Package Weight (Metric) | 0.0050 kg |
150-TB-2
15/25kV, T-Splice 6-3/4 inch Long Bail Assembly, Made of Stainless Steel, Used for Assisting Cable to Transformer Connections. Non-Current Carrying. The 150TB2 bailing assembly kit consists of a modified hold down bail for securing Elastimold® tee splice K150T to a K150DP Deadbreak insulating plug. This assembly provides positive hold down force between the tee splice and the insulating plug.
775BIPSP
35kV, 900Amp, Deadbreak, Insulating Plug with Cap, Factory assembled Stud, which is not field removable.
600ATL
Hex Rod, Steel, Plated, Single Use Hex Rod Assembly Tool. This item is to be used in place of the 600ATM. This is a one time use tool. It is designed to break when the correct torque is reached. Overall Length 10 inch. 3/8 inch across Flat, 27/64 inch across corners. Break Point at 3/4 inch.650LINK-C-IK
15 kV, 600 Amp, CAM-OP Installation Kit, Includes CAM-OP Link, Elbow, Insulating Cap, Retainer Sleeave Contacts and Instructions.
Frequently Asked Questions
What is the current rating of this deadbreak elbow?
The ABB K1501J2U-8 deadbreak elbow has a current rating of 200 Amps.
What is the voltage class for the K1501J2U-8?
This deadbreak elbow is rated for 15/25kV voltage class applications.
What is the center-to-center spacing on this elbow?
The center-to-center spacing for this ABB deadbreak elbow is 4 inches.
Are bails included with the deadbreak elbow?
No, bails are required for installation and operation but are not included. They must be ordered separately.
What type of junction does the K1501J2U-8 offer?
The K1501J2U-8 is a 2-point junction deadbreak elbow.
How to Install K1501 Series Deadbreak Junctions
This guide provides step-by-step instructions for the safe and proper installation and mounting of ELASTIMOLD K1501J2U-8, K1501J3U-8, and K1501J4U-8 deadbreak junctions on flat surfaces.
Estimated time: 1h
Tools needed:
Wrench or Socket Set, Drill, Wire Strippers, Measuring Tape, Marking Tool
Supplies needed:
Suitable Fasteners (user-supplied), Ground Wire (user-supplied, sized appropriately), Hold-down Bails (supplied with elbow), Lubricant (included with junction), K1501 Series Deadbreak Junction (K1501J2U-8, K1501J3U-8, or K1501J4U-8), Universal Mounting Brackets (included with junction)
- De-energize Apparatus and Verify Safety
DANGER: All apparatus must be de-energized during installation or removal of any part(s). Verify that all apparatus is de-energized before beginning the installation. Ensure all individual user, local, and national work rules are followed. Do not touch or move energized products.
- Prepare for Mounting
Determine the desired mounting angle (adjustable from 0° through 45° above or below the horizontal in 15° increments) and the desired direction of the slotted bracket. Loosely attach the pre-assembled universal mounting brackets to the junction back plate. Place the junction assembly against the wall in the desired location and mark the slot locations on the wall for drilling.
- Mount Brackets to Wall
Remove the slotted mounting brackets from the junction assembly. Attach the brackets securely to the wall using suitable fasteners (supplied by the user) at the marked locations. CAUTION: One or both of the mounting brackets can be reversed to change the distance required between bolt centers.
- Assemble Junction to Brackets
Re-assemble the deadbreak junction to the slotted mounting brackets. Tighten all bolts securely to ensure no movement during operation. Verify that the parking stands are in an upright position.
- Connect System Ground
Attach a suitable wire to the ground lug on the junction. Connect this wire to the system ground. Ensure the ground wire is sized to carry the rated fault current or the system fault current if less than the product rating.
- Attach Hold-Down Bails
Attach the hold-down bails (supplied with the elbow connector) to the junction. All 200A deadbreak connectors must be mechanically secured with bails when connected.
