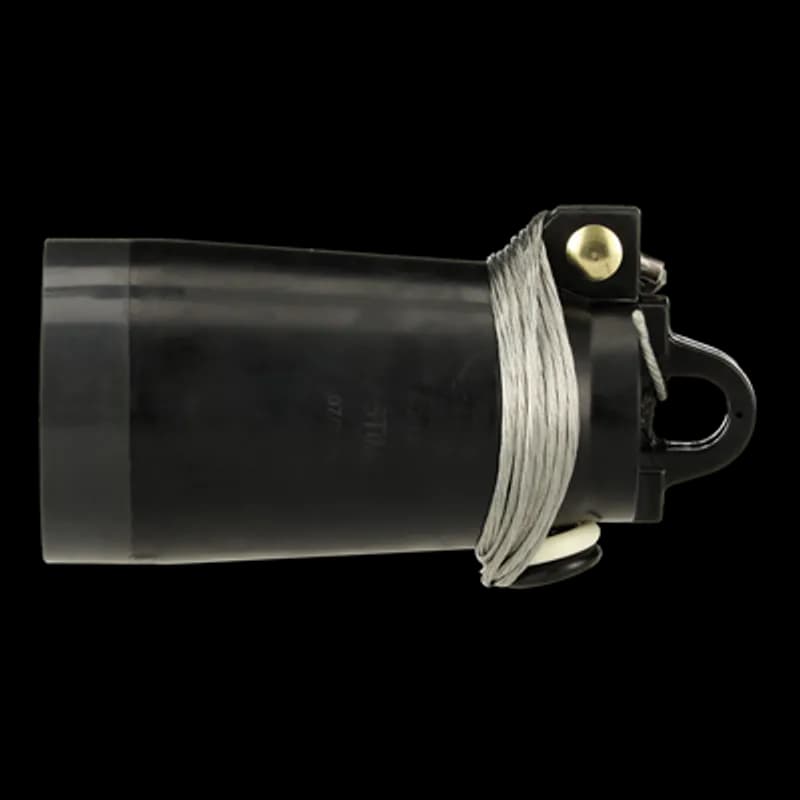

ABB Installation Products 167DRGA-5 200 Amp, 15kV, Insulated Cap with Ground, without Probe, Equipped with Insulated Cuff.
UPC: 783786396719
Contact for Pricing
Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.
Overview
- 200 Amp current rating
- 15kV voltage insulation
- Integrated ground connection
- Equipped with insulated cuff
- Designed without a probe
Specifications
Application | 15 kV, 200 Amps |
Temperature Rating, Maximum | 149 F |
Temperature Rating, Maximum | 65 C |
Temperature Rating, Minimum | -40 F |
Temperature Rating, Minimum | -40 C |
Type | Insulated Cap with Ground |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 0.0200 L |
Package Weight (Metric) | 0.0090 kg |
K675TBC
15/25kV, 900 Amp, Deadbreak Bushing for In-Air Applications (Pad-Mounted or Vault-Type or Submersible Transformers or Switchgear). One Factory installed 5/8-11 UNC-2A Stud included, other Stud must be Purchased Separately. Overall Length 13.75 inch, Diameter 4.50 inch. Molded Epoxy with Stainless Steel Flange. Boot and Collar.
675VSA
900 Amp, 15/25kV, Deadbreak, Vault Stretcher Threaded Stud. 2.779 inch long x 5/8 inch Diameter. 5/6-11 UNC Thread on Both Ends. Tin Plated Copper.
K1501-A1(1)-H
200 Amp, 15/25kV, DeadBreak Elbow, Bushing Insert, Bails are required, but not included, order separately.
750-J2-5
35kV 600 Series Deadbreak 2-Point Junction, includes Rubber Junction, Stainless Steel U-Straps and Back Plate, No Bracket
3701A3(1)-H
200 Amp, 35kV Loadbreak Bushing Insert, Includes internal torquing feature using 200AT Assembly Tool. Includes a black vent ring.Frequently Asked Questions
Does the 167DRG meet industry standards?
Yes, the 167DRG meets ANSI/IEEE Standard 386, Latest Revision.
Is there a version of the 167DRG available without a probe?
Yes, the 167DRG is also available without a probe; specify model 167DRGA when ordering.
What items are included in the 167DRG kit?
Each kit contains one 167DRG insulated cap, one 82-08 lubricant, and one IS-0892 installation instruction.
What is the BIL impulse withstand rating for the cap?
The 167DRG has a 95kV BIL impulse withstand rating, measured with a 1.2 x 50 microsecond wave.
What are the AC and DC withstand voltage ratings?
The 167DRG has a 34kV AC one-minute withstand and a 53kV DC fifteen-minute withstand rating.
What material is the 167DRG cap made from?
The 167DRG insulated cap is made from molded EPDM Rubber.
What type of ground lead is included with the cap?
The 167DRG includes an integral ground lead wire, which is #14 AWG, attached as part of the assembly.
Can the 167DRG cap be operated with a hot stick?
Yes, the 167DRG insulated cap is hot stick operable and includes a provision for hotstick operation.
Which Elastimold products are compatible with the 167DRG?
The 167DRG is compatible with Elastimold® 1601A4 bushing inserts, 164FT feed thrus, 1602A3R feed-thru inserts, and 164 series junctions.
What is the primary use of the 167DRG insulated cap?
The 167DRG insulated cap is a fully shielded, submersible, hot stick operable connector designed for energized operation on 15kV class loadbreak systems. It is used to "dead-end" specific Elastimold® mating products.
How to Install the 167DRG Insulated Cap with Ground Lead
This guide provides instructions for safely installing the 167DRG Insulated Cap with Ground Lead onto a 15kV class loadbreak bushing interface, ensuring proper insulation, shielding, and watersealing.
Estimated time: 15m
Tools needed:
Hotstick
Supplies needed:
167DRG Insulated Cap with Ground Lead, Lubricant
- Prepare for Installation and Safety Checks
Before starting, ensure all apparatus is de-energized. Inspect the 167DRG Insulated Cap and mating parts for damage, proper rating, and compatibility. Gather all required tools and maintain a clean work area. This product should only be installed by competent personnel trained in high voltage safety practices.
- Connect the Electrostatic Grounding Wire
Connect the free end of the electrostatic grounding wire to the system ground. Ensure enough slack for hot-stick operation and train the wire so it does not contact the bushing interface during operation. WARNING: If the ground lead disconnects during operation, do not attempt to reattach without first pulling the insulated cap off the bushing with the hotstick.
- Prepare the Insulated Cap for Mating
Remove the protective cover from the insulated cap. Lubricate the cap’s internal mating surface using only the supplied or ELASTIMOLD approved lubricant. Do not substitute other lubricants, as they may be harmful to this product and its mating products. Keep the internal mating surface free from dirt and grime.
- Install the Insulated Cap onto the Bushing
Firmly attach a hotstick to the insulated cap's pulling eye. Carefully insert the male contact of the insulated cap into the loadbreak bushing. Push the cap home with a fast, firm, straight motion, ensuring it is fully mated and the locking ring is seated. Once fully seated, detach the hotstick from the insulated cap.
