Contact for Pricing
Minimum Qty: 50
Multiplier: 50
*Contact for lower quantities*
Overview

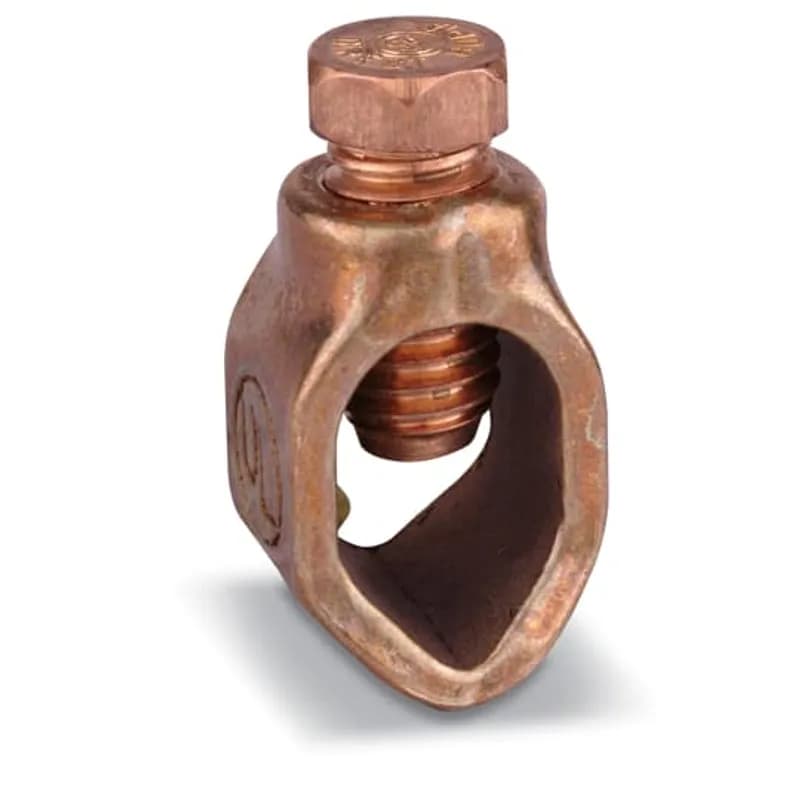

- Designed for 5/8 inch ground rods
- Accommodates wire range from 1/0 stranded to 8 solid
- Tin-plated for corrosion resistance
- Hex head screw for secure tightening
- Manufactured by ABB - Installation Products (SKU: JAB58HP)
Specifications
Material | Tin Plated |
Mounting Type | Hex Head Screw |
Size | Rod 5/8 inch, Wire Range 1/0 Stranded - 8 Solid |
Standard | UL E3060 |
Type | Ground Rod Clamp |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 0.1200 L |
Package Weight (Metric) | 0.0540 kg |
CNB4K
Green bonding cage nut, includes 4 #12-24 bonding cage nuts (.06 .11 thick panel) and 4 #12-24 x 1/2" bonding screws with #2 Phillips/slotted combo hex head (use 5/16" or 8mm socket). Ideal for patch panel applications.
80011-1000
Universal #10-12-14 green grounding clips. The clips are green zinc plated chromate. This sheet identifies the product as a grounding device or assembly.
SP4SL
Long Stud Single Service Post Connectors for Conductors 1 - 8 Stranded, 2 - 8 Solid, Stud Size 3/8 - 16 x 1 1/8
J
Cast Bronze Ground Clamp for Wire Range 10 Sol - 2 Str, Water Pipe Size 1/2 - 1, Height 2-3/4 Inch, Width 2-11/32 Inch
JD
Cast Bronze Ground Clamp for Wire Range 10 - 2, Water Pipe Size 1/2-1 Inch, Rated for Direct Burial
Frequently Asked Questions
Are the dimensions provided for reference or exact?
All dimensions provided in the document are for reference only, and the right is reserved to deviate from them.
What is the screw thread size for JAB58 clamps?
The screw thread size for JAB58 clamps is 7/16-14 UNC-2A.
Is the JAB58HP clamp UL listed?
No, the JAB58HP clamp is not UL listed. This is indicated by a general note in the documentation.
What is the compatible wire range for JAB58 clamps?
JAB58 clamps are compatible with a wire range from 1/0 STR. (53.4 mm^2) down to 8 SOL. (8.3 mm^2).
What is the nominal rod diameter for JAB58 clamps?
The JAB58 clamp is designed for a nominal rod diameter of 5/8 inches (15.8 mm).
What does the 'P' in JAB58HP signify?
The suffix 'P' in the catalog number indicates that the clamp is tin-plated.
What is the compatible wire range for JAB58 clamps?
JAB58 clamps are compatible with a wire range from 1/0 STR. (53.4 mm^2) down to 8 SOL. (8.3 mm^2).
What does the 'P' in JAB58HP signify?
The suffix 'P' in the catalog number indicates that the clamp is tin-plated.
What is the nominal rod diameter for JAB58 clamps?
The JAB58 clamp is designed for a nominal rod diameter of 5/8 inches (15.8 mm).
Is the JAB58HP clamp UL listed?
No, the JAB58HP clamp is not UL listed. This is indicated by a general note in the documentation.
