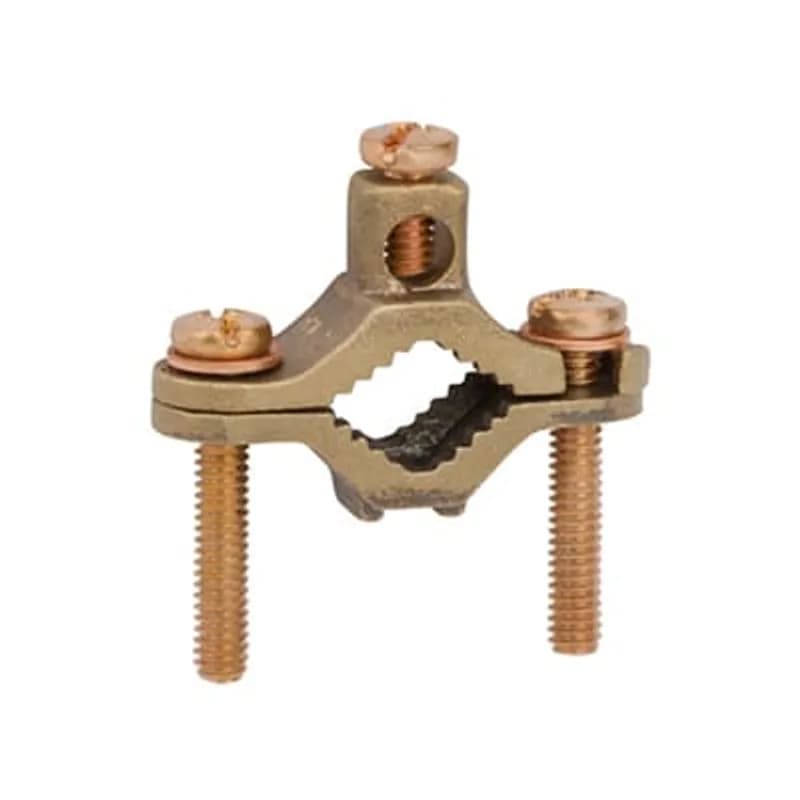

ABB - Installation Products JD - Cast Bronze Ground Clamp for Wire Range 10 - 2, Water Pipe Size 1/2-1 Inch, Rated for Direct Burial
More images
ABB - Installation Products

JD

UPC: 783786801053

Documents & Media
Specification SheetManufacturer Product Website

Contact for Pricing

Minimum Qty: 100

Multiplier: 100

*Contact for lower quantities*

Overview

The ABB JD Cast Bronze Ground Clamp is engineered for reliable grounding connections in demanding applications. Constructed from durable cast bronze, this clamp is specifically designed to accommodate wire sizes ranging from 10 AWG to 2 AWG, ensuring compatibility with common electrical conductors. Its robust design also features a water pipe size range of 1/2 inch to 1 inch, making it suitable for grounding water pipe systems. A key feature of the JD series clamp is its direct burial rating, allowing for secure and permanent installation directly in the ground without the need for additional protective enclosures. This makes it an ideal choice for utility installations, underground electrical systems, and any application requiring a direct earth connection. The cast bronze material provides excellent conductivity and corrosion resistance, crucial for long-term performance in exposed environments. Manufacturer: ABB - Installation Products. SKU: JD. UNSPSC Code: 39121613. This clamp offers a straightforward and effective method for establishing a secure ground connection, meeting essential safety and electrical code requirements. Its specific sizing for both wire and pipe ensures a tight and dependable fit, minimizing resistance and maximizing grounding efficiency.
  • Material: Cast Bronze for superior conductivity and corrosion resistance.
  • Wire Range: Accommodates conductors from 10 AWG to 2 AWG.
  • Water Pipe Size: Fits pipe diameters from 1/2 inch to 1 inch.
  • Direct Burial Rated: Suitable for permanent installation in the ground.
  • Manufacturer: ABB - Installation Products, SKU: JD.

Specifications

Conductor Material
Bronze
Insulation
No
Special Features
High-strength, high conductivity copper alloy (over 80 percent copper)
Standard
UL E3060
Type
Ground Clamp
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
0.1900 L
Package Weight (Metric)
0.0860 kg
Pipe Ground Clamp Bronze Pipe Size 1-1/4 in - 2in - Wire Size 10 Solid - 2 Stranded for Bare Wire

PGCB125200

Pipe Ground Clamp Bronze Pipe Size 1-1/4 in - 2in - Wire Size 10 Solid - 2 Stranded for Bare Wire
Waterpipe Ground Clamp for Wire Range 4 - 4/0, Water Pipe Size 6 , Bronze Saddle with Bronze U-Bolt

3906BU

Waterpipe Ground Clamp for Wire Range 4 - 4/0, Water Pipe Size 6 , Bronze Saddle with Bronze U-Bolt
Access floor grounding clamp for 1 1/2" round pedestals.

GPQC15-1/0

Access floor grounding clamp for 1 1/2" round pedestals.
This is a ground clamp for direct burial use. It is made of bronze conductor material and is intended to accommodate bare cable. The size is 1/2"–1" and it is for bare wire #2, 4, 6, 8 and 10 AWG copper.

95154

This is a ground clamp for direct burial use. It is made of bronze conductor material and is intended to accommodate bare cable. The size is 1/2"–1" and it is for bare wire #2, 4, 6, 8 and 10 AWG copper.
Cast Bronze Ground Clamp for Wire Range 10 - 3/0, Water Pipe Size 1/2 - 1, Conduit Size 1

JP1

Cast Bronze Ground Clamp for Wire Range 10 - 3/0, Water Pipe Size 1/2 - 1, Conduit Size 1
Ground Clamp Connector for Wire Range #4 Str. - 4/0 Str. Carriage Bolt Size 3/8 - 16

10103-TB

Ground Clamp Connector for Wire Range #4 Str. - 4/0 Str. Carriage Bolt Size 3/8 - 16
Copper Lay-In Lug, Wire Range #14 - #4 AWG, Stud Size 0.22 Inch, Height 0.78 Inch, Width 0.38 Inch, Length 1.07 Inches

CULL4-14

Copper Lay-In Lug, Wire Range #14 - #4 AWG, Stud Size 0.22 Inch, Height 0.78 Inch, Width 0.38 Inch, Length 1.07 Inches
Tinned Copper Flexible Braids for Grounding, 76800 Circular Mil Area, Bolt Hole 7/16, 18 inch length, Number of Braids in Ferrule 1, 1 Bolt Hole per Ferrule

FBD18-1

Tinned Copper Flexible Braids for Grounding, 76800 Circular Mil Area, Bolt Hole 7/16, 18 inch length, Number of Braids in Ferrule 1, 1 Bolt Hole per Ferrule
