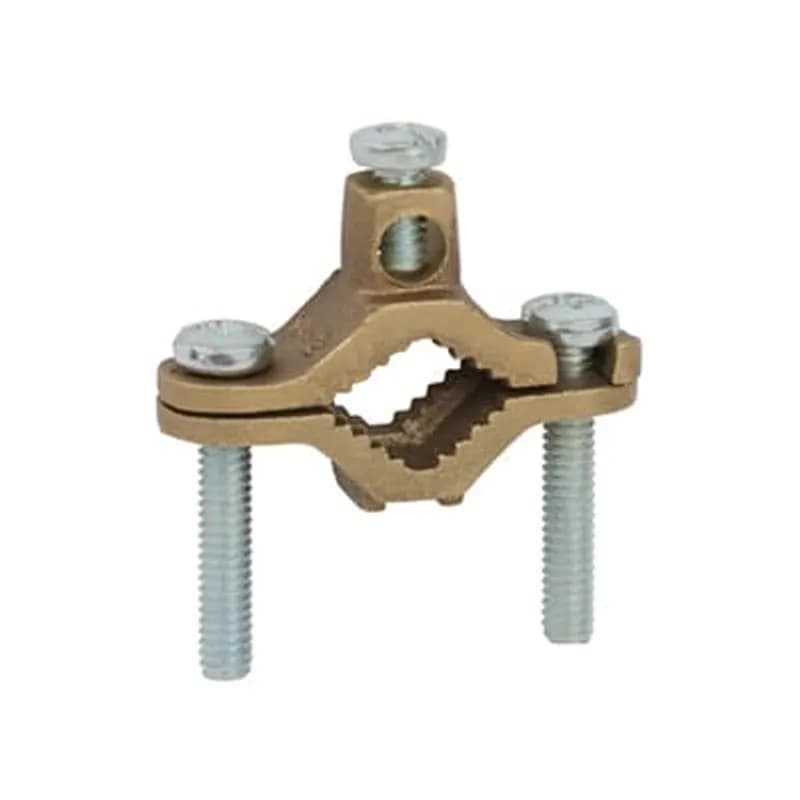

ABB - Installation Products J - Cast Bronze Ground Clamp for Wire Range 10 Sol - 2 Str, Water Pipe Size 1/2 - 1, Height 2-3/4 Inch, Width 2-11/32 Inch

ABB Installation Products J Cast Bronze Ground Clamp for Wire Range 10 Sol - 2 Str, Water Pipe Size 1/2 - 1, Height…

UPC: 783786801121


Documents & Media
Specification SheetManufacturer Product Website

Contact for Pricing

Minimum Qty: 100

Multiplier: 100

*Contact for lower quantities*

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The ABB Installation Products J cast bronze ground clamp (SKU: J) is engineered for reliable grounding connections between copper conductors and metallic water pipes or copper tubing. Constructed from a high-strength, high-conductivity copper alloy, this clamp ensures superior electrical continuity and corrosion resistance, making it suitable for industrial and commercial applications. The J clamp is designed to accommodate copper wire sizes ranging from #10 AWG solid to #2 AWG stranded. It also fits water pipe sizes from 1/2 inch to 1 inch, offering versatility for various grounding system requirements. Key dimensions include a height of 2-3/4 inches and a width of 2-11/32 inches, facilitating integration into standard grounding configurations while providing robust mechanical strength. The clamp features plated screws for enhanced durability, particularly in direct burial or outdoor installations. This model is part of ABB's extensive range of grounding and bonding solutions, designed for safety and performance in electrical infrastructure. The cast bronze construction offers excellent resistance to environmental factors, ensuring a long service life. Its precise design allows for a secure mechanical grip on both the conductor and the pipe, minimizing resistance and maximizing safety. The ABB J ground clamp is an essential component for maintaining effective grounding in electrical panels, utility substations, and building grounding systems.
  • Constructed from high-strength, high-conductivity copper alloy for superior electrical continuity.
  • Accommodates copper wire sizes from #10 AWG solid to #2 AWG stranded.
  • Designed to fit water pipe sizes ranging from 1/2 inch to 1 inch.
  • Features plated screws for enhanced corrosion resistance in outdoor or direct burial applications.
  • Compact dimensions (2-3/4" height, 2-11/32" width) for easy integration into grounding systems.

Specifications

Conductor Material
Bronze
Insulation
No
Material
Cast Bronze
Series
J
Size
Wire Range 10 Sol - 2 Str, Water Pipe Size 1/2 - 1, Height 2-3/4 Inch, Width 2-11/32 Inch
Special Features
Cast of high-strength, highly conductive copper alloy
Standard
UL E3060
Type
Ground Clamp
Package Dimensions (L x W x H)
5 IN x 4.37 IN x 6.5 IN
Package Dimensions (L x W x H)
12.7 cm x 11.0998 cm x 16.51 cm
Package Weight (Imperial)
0.1500 L
Package Weight (Metric)
0.0680 kg
