NSI Industries RDC1/0 - Ratchet Drive Crimping Tool APPLICATIONS: Ratchet Drive Crimping Tool is for non-insulated terminals from 6 to 1/0 AWG and insulated terminals from 22 to 8 AWG. Rugged, compact, and lightweight. Requires minimum effort due to ratchet action, ensuring an excellent crimp every time. FEATURES: TYPE: Insulated and Uninsulated ACTION: Ratchet INSULATED USE: Terminals 22 to 8 AWG NON-INSULATED USE: Terminals 6 to 1/0 AWG MANUFACTURER: NSi Industries PART NUMBER: RDC 1/0 UPC: 662381055309
NSI Industries

RDC1/0

UPC: 662381055309

Contact for Pricing

Overview

The NSi Industries RDC1/0 Ratchet Drive Crimping Tool (SKU: RDC1/0) is a rugged, compact, and lightweight crimper designed for professional-grade wire termination applications. Engineered for insulated terminals ranging from 22 to 8 AWG and non-insulated terminals from 6 to 1/0 AWG, this tool delivers consistent, high-quality crimps with minimal operator effort thanks to its ratchet-driven action. The integrated rotating die wheel features six-position die pockets with push-button lockout for rapid die changeover, eliminating the need for separate dies and reducing downtime in high-volume applications. Built for durability, the RDC1/0 features polypropylene handles that provide chemical resistance and a cushioned, non-slip grip for secure operation even in demanding environments. The tool’s compact design ensures easy maneuverability in tight spaces, while its lightweight construction reduces user fatigue during extended use. The ratchet mechanism ensures uniform crimp pressure, eliminating inconsistencies and ensuring reliable electrical connections every time. Ideal for electrical contractors, maintenance technicians, and industrial facilities, the RDC1/0 supports a wide range of terminals, including non-insulated tubular terminals (S Series), heavy-duty ring terminals (P Series), and copper code conductor lugs. Compatible with select Panduit and other industry-standard terminals, this tool meets UL Listed and CSA Certified requirements when used as specified. The RDC1/0 is manufactured by NSi Industries, a trusted name in wire termination tools, and distributed by Gross Automation for reliable service and support. Key benefits include: - Ratchet-driven action for consistent, high-quality crimps with minimal effort - Integrated six-position die wheel for quick die changeover without additional tools - Polypropylene handles with chemical resistance and non-slip grip for enhanced safety - Compact and lightweight design for easy handling in confined spaces - Supports a broad range of terminal sizes for versatile applications - UL Listed and CSA Certified for compliance with industry standards
  • Ratchet-driven action ensures consistent, high-quality crimps with minimal operator effort
  • Integrated six-position die wheel with push-button lockout for rapid die changeover
  • Supports insulated terminals from 22 to 8 AWG and non-insulated terminals from 6 to 1/0 AWG
  • Polypropylene handles provide chemical resistance and cushioned, non-slip grip
  • Compact and lightweight design for easy maneuverability in tight spaces

Specifications

Application
Crimping
Connector Type
Miniterms
Handle Color
Green
Handle Type
Steel
Material
Steel
Overall Length
16 IN
Special Features
For Non-Insulated Terminals 6-1/0 AWG - Insulated Terminals 22-8 AWG
Type
Ratchet Drive Crimper
Wire Size
6-1/0 AWG Un-Insulated - 22-8 AWG Insulated
Wire Size, Maximum
1/0 AWG
Wire Size, Minimum
6 AWG
Package Dimensions (L x W x H)
19 IN x 0.75 IN x 5.75 IN
Package Dimensions (L x W x H)
48.26 cm x 19.05 mm x 14.605 cm
Package Weight (Imperial)
4.700 L
Package Weight (Metric)
2.132 kg

Similar Products

RDC50A

Color: Ivory

Material: Aluminum

Maximum Operating Temperature: 300 F

RDC50S

Color: Ivory

Maximum Operating Temperature: 1000 F

Minimum Operating Temperature: -60 F

RDC50SS

Color: Ivory

Material: Stainless Steel

Maximum Operating Temperature: 1000 F

RDC75A

Color: Ivory

Material: Aluminum

Maximum Operating Temperature: 300 F

RDC75S

Color: Ivory

Maximum Operating Temperature: 1000 F

Minimum Operating Temperature: -60 F

RDC75SS

Color: Ivory

Material: Stainless Steel

Maximum Operating Temperature: 1000 F

You May Also Be Interested In

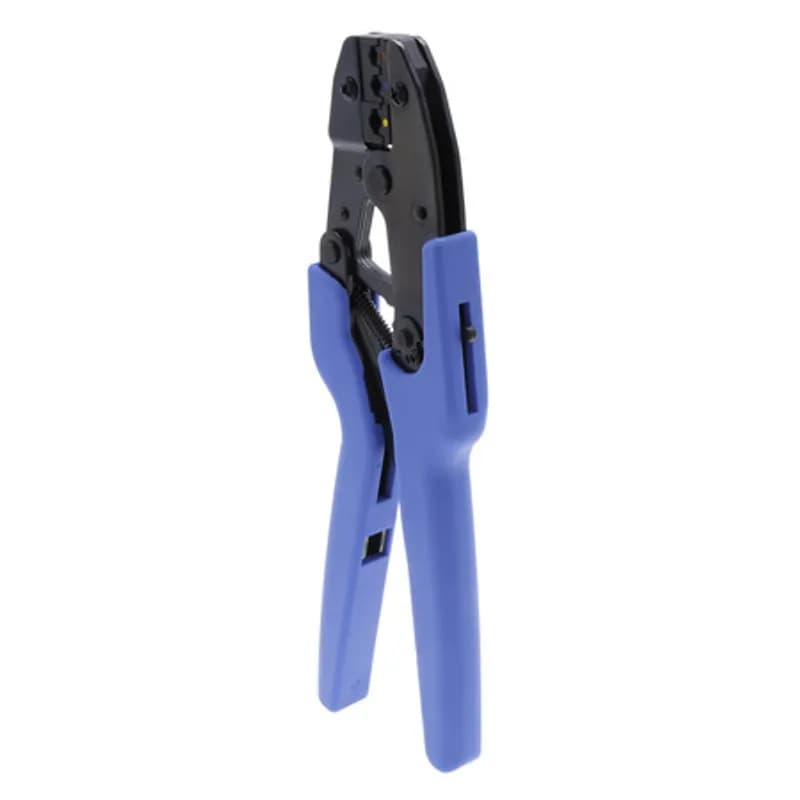

Insulated Miniterm Tool APPLICATIONS: A ratchet-action crimping tool for quality crimping of insulated terminals and connectors, including rings, spades, male plugs, female receptacles, and disconnects in 22/18, 16/14, and 12/10 AWG wire sizes. FEATURES: TYPE: Insulated ACTION: Ratchet CRIMPS: Insulated connectors, terminals, rings, spades, male plugs and female receptacles WIRE SIZE: 22/18, 16/14, 12/10 AWG UPC: 662381055019

NH-1

Insulated Miniterm Tool APPLICATIONS: A ratchet-action crimping tool for quality crimping of insulated terminals and connectors, including rings, spades, male plugs, female receptacles, and disconnects in 22/18, 16/14, and 12/10 AWG wire sizes. FEATURES: TYPE: Insulated ACTION: Ratchet CRIMPS: Insulated connectors, terminals, rings, spades, male plugs and female receptacles WIRE SIZE: 22-8 AWG

NH-4

Insulated Miniterm Tool APPLICATIONS: A ratchet-action crimping tool for quality crimping of insulated terminals and connectors, including rings, spades, male plugs, female receptacles, and disconnects in 22/18, 16/14, and 12/10 AWG wire sizes. FEATURES: TYPE: Insulated ACTION: Ratchet CRIMPS: Insulated connectors, terminals, rings, spades, male plugs and female receptacles WIRE SIZE: 22-10 AWG

NH-3

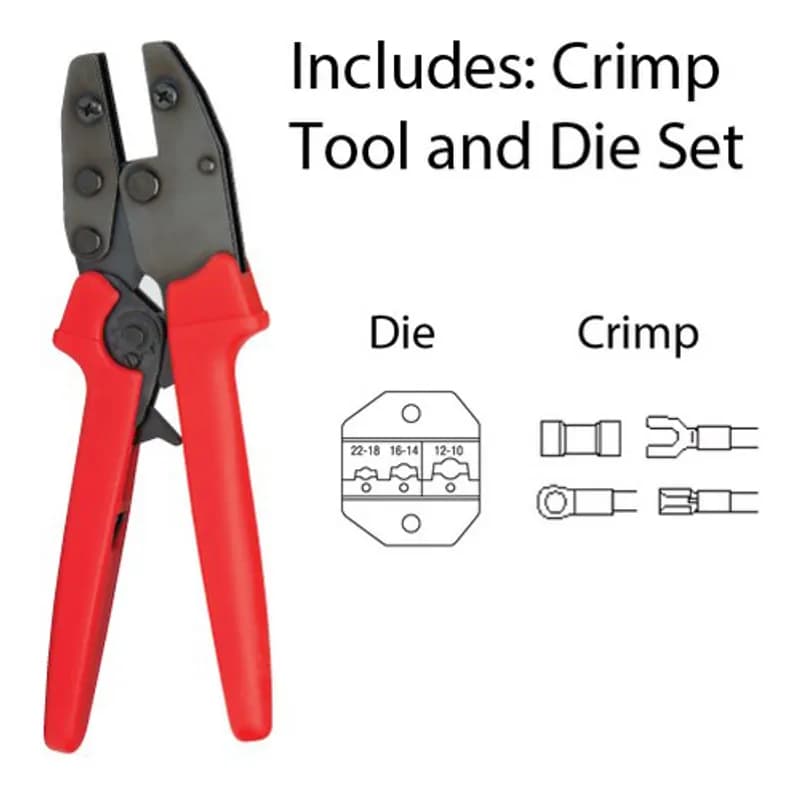

9" Crimp Tool-Insulated Terminals

16501C

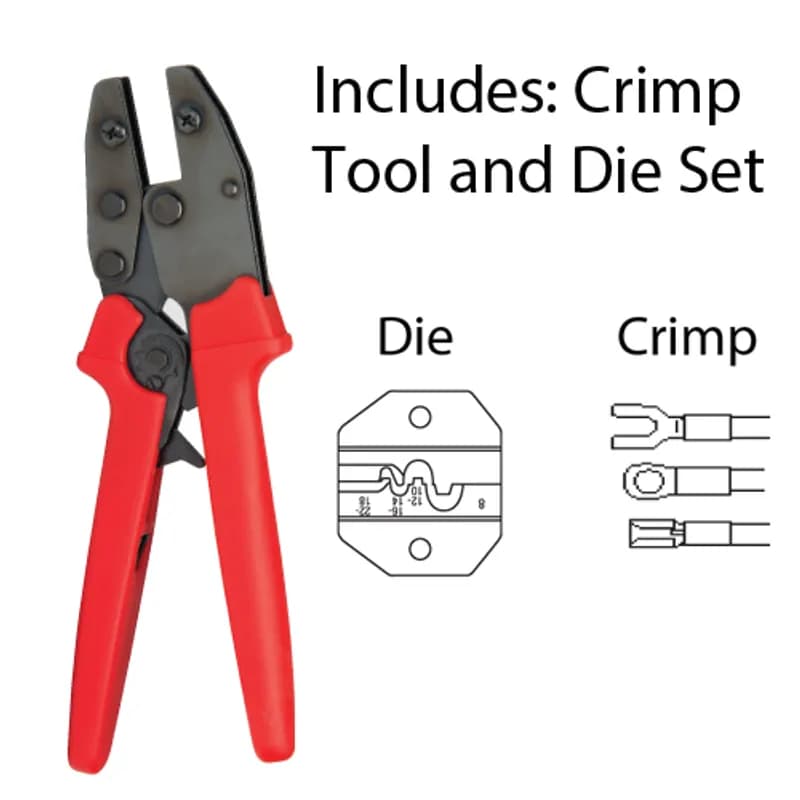

9" Crimp Tool Non-Insulated Terminals
