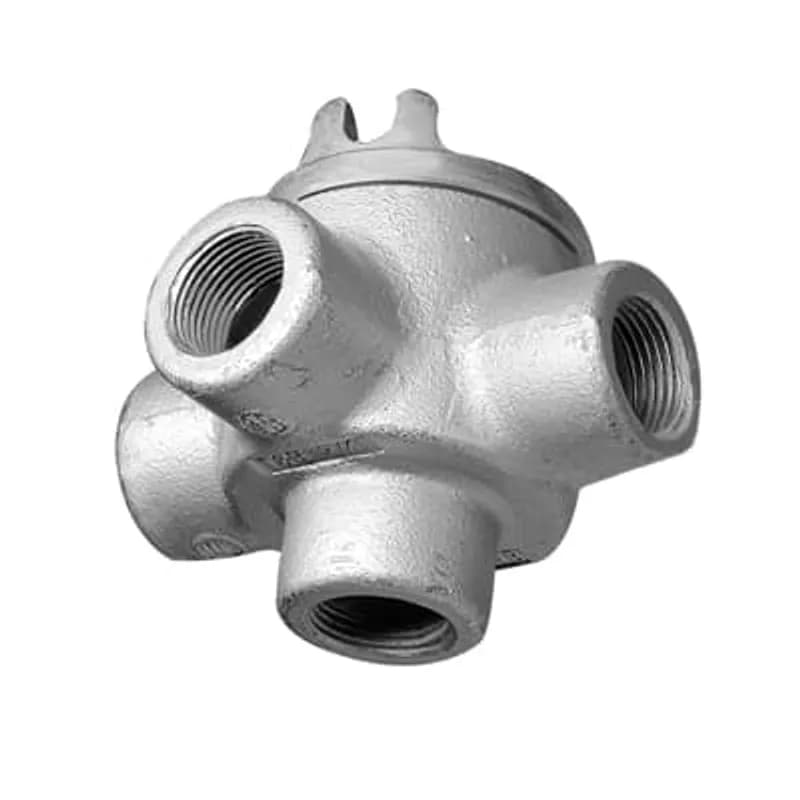

ABB - Installation Products GUAW24-TB - 3/4 Inch GUAW Hazardous Location Conduit Outlet Box, Box Ductile Iron Zinc Plated, Cover Die Cast Aluminum, 6.5 Cubic Inch

ABB Installation Products GUAW24-TB 3/4 Inch GUAW Hazardous Location Conduit Outlet Box, Box Ductile Iron Zinc Plated, Cover…

UPC: 786210344898


Documents & Media
Specification SheetManufacturer Product Website

Contact for Pricing

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The ABB GUAW Hazardous Location Conduit Outlet Box, SKU GUAW24-TB, is engineered for critical applications within hazardous environments. This 3/4 inch conduit box is constructed with a durable ductile iron body, finished with a zinc plating for enhanced corrosion resistance. The cover is manufactured from die-cast aluminum, providing a robust seal and additional protection against environmental ingress. With an internal volume of 6.5 cubic inches, this box offers sufficient space for wiring connections and splices in Class I, Division 1 and 2, and Class II, Division 1 and 2 hazardous locations. The GUAW series from ABB Installation Products is designed to maintain the integrity of electrical conduit systems where flammable gases, vapors, or combustible dusts may be present. Its construction materials are selected for their resilience and ability to withstand the challenging conditions typical of industrial settings such as chemical plants, refineries, and manufacturing facilities. The precise sizing and material composition ensure compliance with safety standards for hazardous area installations. This outlet box serves as a vital junction point, facilitating the safe and reliable distribution of power and control signals while preventing the escape of internal sparks or flames that could ignite external flammable atmospheres. The combination of ductile iron and die-cast aluminum ensures long-term operational reliability and safety. For installations requiring dependable conduit protection in hazardous zones, the ABB GUAW series offers a specified and compliant solution.
  • 3/4 Inch conduit size
  • Ductile Iron Zinc Plated Box Construction
  • Die Cast Aluminum Cover
  • 6.5 Cubic Inch Internal Volume
  • Designed for Hazardous Locations

Specifications

Application
GUA Boxes Can Be Used for Hazardous Location Conduit Runs for the Following: (1) Allows for Mounting of Fixutre Outlets When Used with Appropriate Covers, (2) Provides Easy Access to Wiring, (3) Provides Junction In Conduit for Wire Pulling and Splices, (4) Changes Direction In Rigid Conduit Systems, (5) Attaches Two or More Pieces of Conduit Long Runs, (6) Guards Against Damage to Wires In Rigid Conduit
Finish
Zinc Plated
Hub Size
3/4
Material Quality
Ductile Iron
Special Features
All Hubs Have a Minimum of Five Full Threads and Integral Bushing
Standard
UL E202368, CSA
Type
GUA Conduit Outlet Boxes & Covers-Explosionproof
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
2.2900 L
Package Weight (Metric)
1.0390 kg
Type LR Conduit Body, Volume 12 Cubic Inches, Size 3/4 Inch, Length 6-9/32 Inches, Width 2-1/32 Inches, Material PVC, Color Gray, For use with Schedule 40 and 80 Conduit

E985EL

Type LR Conduit Body, Volume 12 Cubic Inches, Size 3/4 Inch, Length 6-9/32 Inches, Width 2-1/32 Inches, Material PVC, Color Gray, For use with Schedule 40 and 80 Conduit
1 Inch GUAD Hazardous Location Conduit Outlet Box, Box Ductile Iron Zinc Plated, Cover Die Cast Aluminum, 16 Cubic Inch

GUAD36-TB

1 Inch GUAD Hazardous Location Conduit Outlet Box, Box Ductile Iron Zinc Plated, Cover Die Cast Aluminum, 16 Cubic Inch
3/4 Inch GUAT Hazardous Location Conduit Outlet Box, Box Ductile Iron Zinc Plated, Cover Die Cast Aluminum, 13.3 Cubic Inch

GUAT26-TB

3/4 Inch GUAT Hazardous Location Conduit Outlet Box, Box Ductile Iron Zinc Plated, Cover Die Cast Aluminum, 13.3 Cubic Inch
2-1/2 Inch Form 8, LL Conduit Body, Body Material Gray Iron with Zinc Plating and Baked On Epoxy Powder Coat with BlueKote Internal Coating for Use with Rigid/IMC Conduit

LL78

2-1/2 Inch Form 8, LL Conduit Body, Body Material Gray Iron with Zinc Plating and Baked On Epoxy Powder Coat with BlueKote Internal Coating for Use with Rigid/IMC Conduit
1-1/4 Inch Form 7 (LB) Back Opening Pre-Assembled Conduit Body, Cover and Gasket, Body Material Gray Iron/Zinc Plating and Baked On Epoxy Powder Coat with BlueKote Internal Coating, Cover Material and Finish Stamped Steel/Zinc Plating

LB47CG-TB

1-1/4 Inch Form 7 (LB) Back Opening Pre-Assembled Conduit Body, Cover and Gasket, Body Material Gray Iron/Zinc Plating and Baked On Epoxy Powder Coat with BlueKote Internal Coating, Cover Material and Finish Stamped Steel/Zinc Plating
1 Inch Form 7 (TB) Pre-Assembled Conduit Body, Cover and Gasket, Body Material Gray Iron/Zinc Plating and Baked On Epoxy Powder Coat with BlueKote Internal Coating, Cover Material and Finish Stamped Steel/Zinc Plating

TB37CG-TB

1 Inch Form 7 (TB) Pre-Assembled Conduit Body, Cover and Gasket, Body Material Gray Iron/Zinc Plating and Baked On Epoxy Powder Coat with BlueKote Internal Coating, Cover Material and Finish Stamped Steel/Zinc Plating
1 Inch BlueKote Thru-Feed Form 7 Pre-Assembled Conduit Body, Cover and Gasket, Body Material Gray Iron/Zinc Plating and Baked On Epoxy Powder Coat with BlueKote Internal Coating, Cover Material and Finish Stamped Steel/Zinc Plating

C37CG-TB

1 Inch BlueKote Thru-Feed Form 7 Pre-Assembled Conduit Body, Cover and Gasket, Body Material Gray Iron/Zinc Plating and Baked On Epoxy Powder Coat with BlueKote Internal Coating, Cover Material and Finish Stamped Steel/Zinc Plating
2 Inch EYD Drain Seal, Body and Inspection or Drain Cover Gray Iron and/or Ductile Iron, Closure for Drain Aluminum, or Ductile Iron, Small Closure Plug Gray Iron and/or Steel, Drain Stainless Steel, Removable Nipples Steel

EYD61-TB

2 Inch EYD Drain Seal, Body and Inspection or Drain Cover Gray Iron and/or Ductile Iron, Closure for Drain Aluminum, or Ductile Iron, Small Closure Plug Gray Iron and/or Steel, Drain Stainless Steel, Removable Nipples Steel
