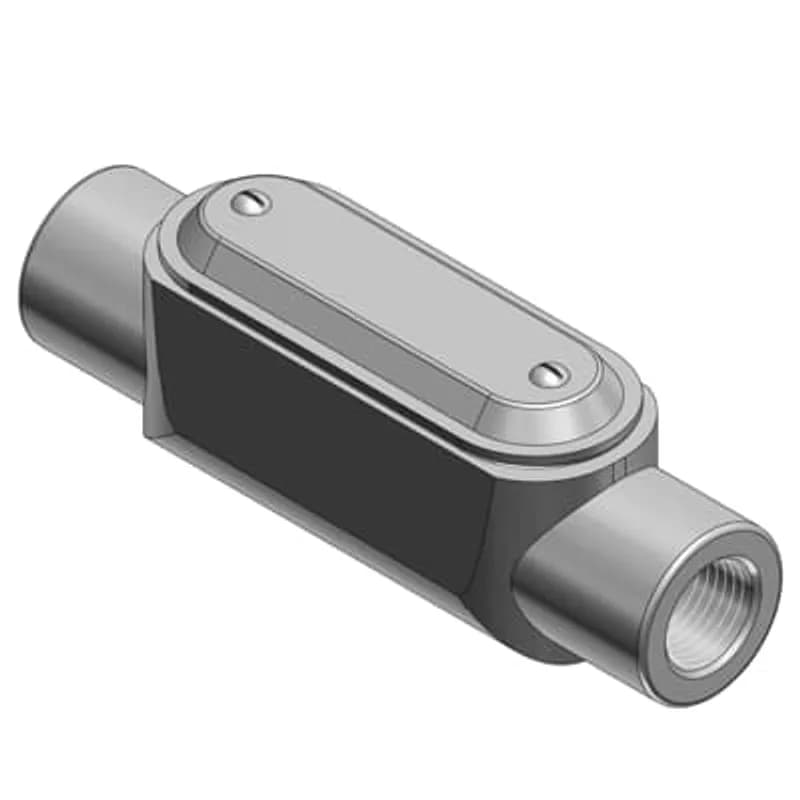

ABB - Installation Products C37CG-TB - 1 Inch BlueKote Thru-Feed Form 7 Pre-Assembled Conduit Body, Cover and Gasket, Body Material Gray Iron/Zinc Plating and Baked On Epoxy Powder Coat with BlueKote Internal Coating, Cover Material and Finish Stamped Steel/Zinc Plating

ABB Installation Products C37CG-TB 1 Inch BlueKote Thru-Feed Form 7 Pre-Assembled Conduit Body, Cover and Gasket, Body…

UPC: 786210916811


Documents & Media
Specification SheetManufacturer Product Website

Contact for Pricing

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The ABB C37CG-TB is a 1-inch BlueKote Form 7 thru-feed conduit body from ABB Installation Products, designed for robust electrical installations. This conduit body features a triple-layer protection system, including two layers of epoxy coating and an internal BlueKote coating, specifically engineered to combat corrosion. The internal BlueKote surface coating also reduces the force required for pulling wires through the conduit. Constructed from gray iron with zinc plating and a baked-on epoxy powder coat, the body provides durable protection. The cover is made of stamped steel with zinc plating, ensuring longevity and a secure seal with the included gasket. This pre-assembled unit simplifies installation by combining the conduit body, cover, and gasket. The Form 7 design facilitates thru-feed applications, allowing for smooth cable passage without sharp edges that could damage insulation. It supports 90-degree bends, enabling efficient conduit routing in confined spaces. Compatible with standard 1-inch trade size conduit, this product is suitable for various industrial and commercial environments where moisture, chemicals, or physical impact are concerns. Key Specifications: - Manufacturer: ABB - Installation Products - SKU: C37CG-TB - Brand: T&B Fittings - Product Name: BlueKote® conduit bodies - Form Type: Form 7 - Shape Type: C (This indicates a specific conduit body shape, typically a "C" shape for access) - Hub Size: 1 Inch - Body Material: Gray Iron with Zinc Plating, Epoxy Powder Coat, BlueKote Internal Coating - Cover Material & Finish: Stamped Steel with Zinc Plating - Color: Gray - Features: Triple-layer protection, internal BlueKote coating for enhanced corrosion resistance and reduced wire pull force, pre-assembled with cover and gasket. Ideal for manufacturing plants, data centers, commercial buildings, and outdoor installations.
  • 1 Inch BlueKote Form 7 thru-feed conduit body
  • Gray iron body with zinc plating, epoxy powder coat, and BlueKote internal coating
  • Stamped steel cover with zinc plating
  • Triple-layer corrosion protection
  • Pre-assembled with cover and gasket for easy installation

Specifications

Application
Conduit Bodies are Installed In Conduit Systems to Connect Sections, Act As Pull Outlets When Conductors are Being Installed and Provide Easy Access for Splices In Branch Conductors
Color
Blue
Finish
Zinc Plated with Epoxy Powder Coat
Form
Form 7
Hub Size
1
Material
Gray Iron with Zinc Plating and Epoxy Powder Coat
Material Quality
Malleable Iron
Material Quality
Other
Series
Form 7
Size
1 Inch
Special Features
BlueKote Teflon Based Internal Finish Provides a Slick, Easy-Glide Internal Surface Which Significantly Lowers the Amount of Force Necessary to Pull Wires
Standard
UL E2969, CSA
Type
Pre-Assembled Form 7 Conduit Body, Cover & Gasket
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
2.3300 L
Package Weight (Metric)
1.0570 kg
