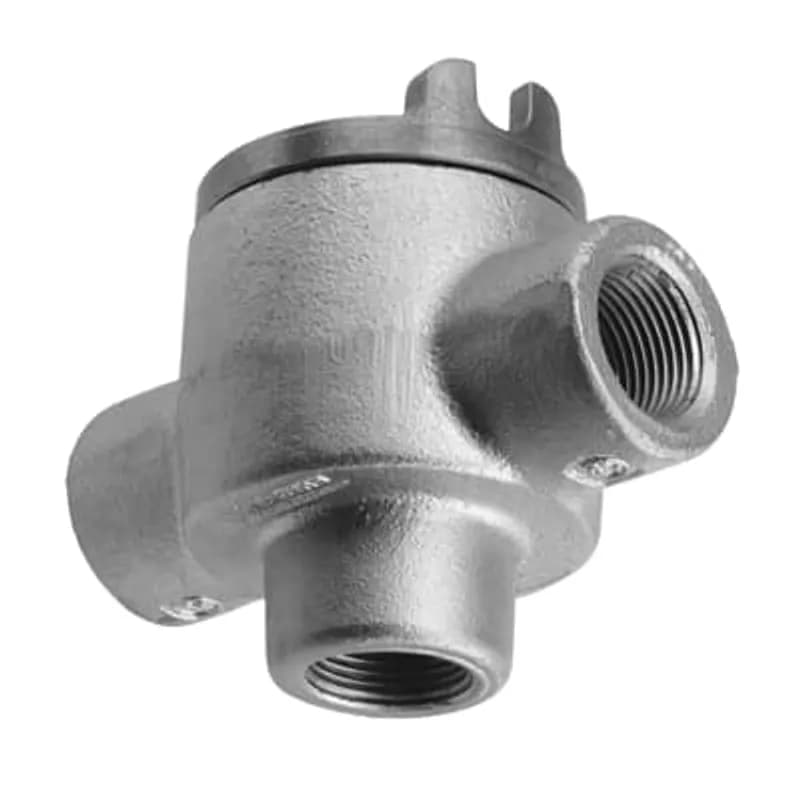

ABB - Installation Products GUAD36-TB - 1 Inch GUAD Hazardous Location Conduit Outlet Box, Box Ductile Iron Zinc Plated, Cover Die Cast Aluminum, 16 Cubic Inch

ABB Installation Products GUAD36-TB 1 Inch GUAD Hazardous Location Conduit Outlet Box, Box Ductile Iron Zinc Plated, Cover…

UPC: 786210982069

Documents & Media
Specification SheetManufacturer Product Website

Contact for Pricing

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The ABB Installation Products GUAD36-TB is a 1-inch hazardous location conduit outlet box designed for use in classified areas where flammable gases, vapors, or combustible dusts may be present. The box features a ductile iron body with zinc plating for corrosion resistance and a die-cast aluminum cover for durability. With a 16 cubic inch internal volume, it provides ample space for wire connections and splicing in industrial environments. This outlet box is constructed to meet hazardous location requirements, ensuring safe operation in NEC Class I, Division 1 & 2, Groups A, B, C, and D, as well as Class II, Division 1 & 2, Groups E, F, and G. The zinc-plated ductile iron body offers superior strength and protection against mechanical damage, while the aluminum cover provides a lightweight yet robust sealing surface. The GUAD36-TB is UL-listed and suitable for use in oil and gas, chemical processing, mining, and other industries where explosion-proof electrical installations are required. Its compact 1-inch trade size makes it ideal for tight spaces or conduit runs where larger boxes are impractical. The 16 cubic inch capacity accommodates standard wire gauges and fittings, reducing the need for additional junction boxes.
  • 1-inch trade size conduit outlet box for hazardous locations
  • Ductile iron body with zinc plating for corrosion resistance
  • Die-cast aluminum cover for durability and easy access
  • 16 cubic inch internal volume for wire connections and splicing
  • UL-listed for NEC Class I, Division 1 & 2, Groups A-D and Class II, Division 1 & 2, Groups E-G

Specifications

Application
GUA Boxes Can Be Used for Hazardous Location Conduit Runs for the Following: (1) Allows for Mounting of Fixutre Outlets When Used with Appropriate Covers, (2) Provides Easy Access to Wiring, (3) Provides Junction In Conduit for Wire Pulling and Splices, (4) Changes Direction In Rigid Conduit Systems, (5) Attaches Two or More Pieces of Conduit Long Runs, (6) Guards Against Damage to Wires In Rigid Conduit
Finish
Zinc Plated
Hub Size
1
Material
Ductile Iron Zinc Plated, Die Cast Aluminum
Material Quality
Ductile Iron
Series
GUAD
Size
1 Inch
Special Features
All Hubs Have a Minimum of Five Full Threads and Integral Bushing
Standard
UL E202368, CSA
Type
GUA Conduit Outlet Boxes & Covers-Explosionproof
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
2.5400 L
Package Weight (Metric)
1.1520 kg
