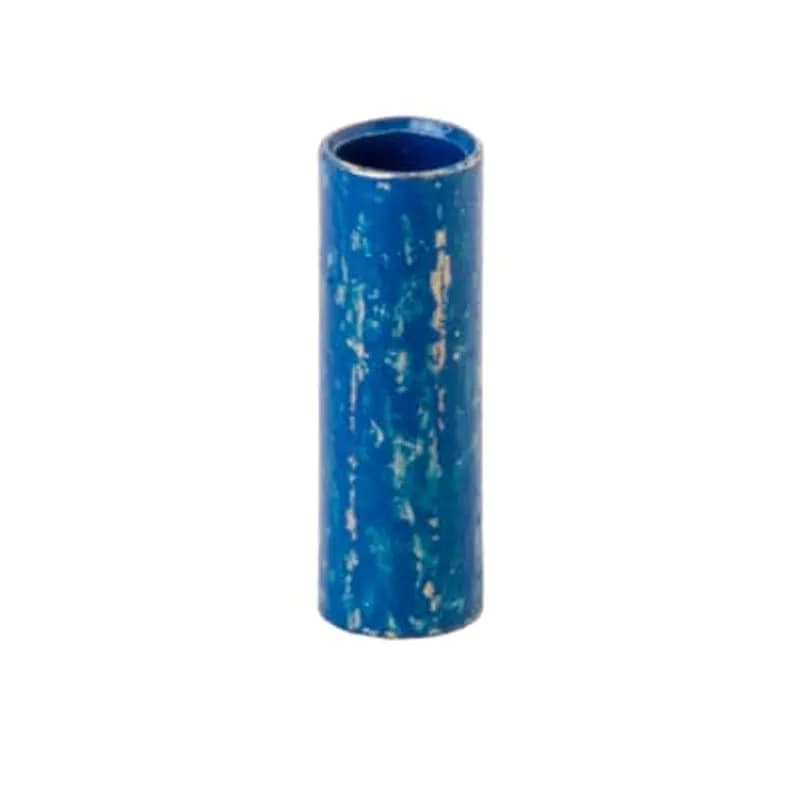

ABB Installation Products GSB080 Two Piece Inner Sleeve Connector for Hexagonal Range, Length 5/16 Inch/7.9mm, Inner…
UPC: 786210812823
Documents & Media
Contact for Pricing
Minimum Qty: 1000
Multiplier: 1000
*Contact for lower quantities*
Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.
Overview
- Two-piece inner sleeve connector for hexagonal range applications.
- Constructed from durable hard bronze with tin plating for conductivity and corrosion resistance.
- Precise dimensions: 0.080" (2.00mm) Inner Diameter, 0.1035" (2.63mm) Outer Diameter.
- Compact length of 5/16" (7.9mm) for space-constrained installations.
- Blue color coding for easy identification and organization.
Specifications
Color | Blue |
Material | Hard Bronze |
Material | Hard Bronze, Tin Plated |
Size | [object Object] |
Special Features | Shielded cable grounding system made of 2 cylindrical sleeves (inner sleeve + outer sleeve), for solderless crimp connection. Inner sleeve for the Hexagonal Range (the corresponding outer sleeve is crimped with a hand tool and the result is a hexagonal-shaped crimp), for grounding shielded and coaxial cables. The sleeves are color coded according to their size. Millions of installations in communications, aerospace, electronic, telephone, radio and TV applications |
Type | Two-Piece Inner Sleeve Connector |
Package Dimensions (L x W x H) | 2.09 IN x 1.1 IN x 2.9 IN |
Package Dimensions (L x W x H) | 5.3086 cm x 2.794 cm x 7.366 cm |
Package Weight (Imperial) | 0.0010 L |
Package Weight (Metric) | 0.0010 kg |
GSB194
Two Piece Inner Sleeve Connector for Hexagonal Range, Length 5/16 Inch/7.9mm, Inner Diameter .194 Inches/4.93mm, Outer Diameter .226 Inches/5.76mm, Color Blue, Hard Bronze, Tin Plated
GSB071
Two Piece Inner Sleeve Connector for Hexagonal Range, Length 7.9mm, Inner Diameter 1.87mm, Outer Diameter 2.44mm, Color Green, Hard Bronze, Tin Plated
GSB080NP
Two Piece Inner Sleeve Connector for Hexagonal Range, Length 5/16 Inch/7.9mm, Inner Diameter .080 Inches/2.00mm, Outer Diameter .103 Inches/2.63mm, Color Blue, Hard Bronze, Nickel Plated
KVF18-4FB-M
Vinyl Fully Insulated Female Bullet Receptacle Wire Range 22-16 Bolt Hole n/a, Package of 1000
KN18-10R-M
Nylon Insulated Ring Terminal, Length .858 Inches, Width .315 Inches, Bolt Hole #10, Wire Range #22-#16 AWG, Color Red, Copper, Tin PlatedFrequently Asked Questions
What is the color code for the GSB080 connector?
The color code for the GSB080 connector is blue.
What material is the GSB080 connector made from?
The GSB080 connector is made from commercial bronze, specifically ASTM B36 (UNS C22000).
What is the maximum operating temperature for tin plated GSB080 parts?
Tin plated parts, including GSB080, should not be exposed to temperatures above 150 C.
What is the finish of the GSB080 connector?
The GSB080 connector has an electro tin plate finish, equivalent to ASTM B545 Class A per MIL-T-10727A Type1.
What is the maximum operating temperature for tin plated GSB080 parts?
Tin plated parts, including GSB080, should not be exposed to temperatures above 150 C.
What is the finish of the GSB080 connector?
The GSB080 connector has an electro tin plate finish, equivalent to ASTM B545 Class A per MIL-T-10727A Type1.
What material is the GSB080 connector made from?
The GSB080 connector is made from commercial bronze, specifically ASTM B36 (UNS C22000).
What is the color code for the GSB080 connector?
The color code for the GSB080 connector is blue.
What is the color code for the GSB080 connector?
The color code for the GSB080 connector is blue.
What is the maximum operating temperature for tin plated GSB080 parts?
Tin plated parts, including GSB080, should not be exposed to temperatures above 150 C.
