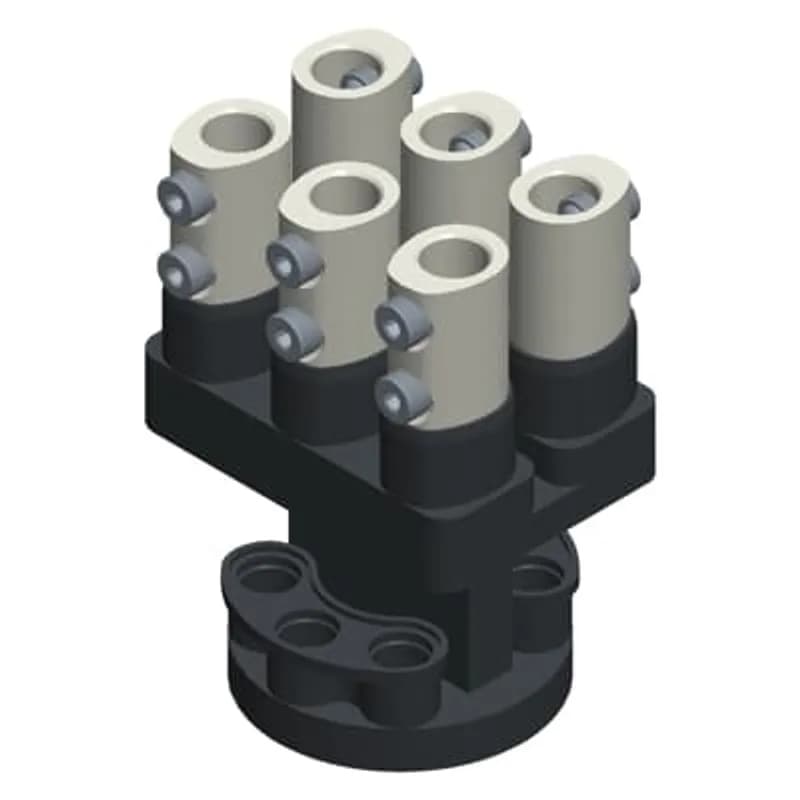

ABB - Installation Products FTVB1000-33CUAWR438 - Tin Plated Copper Network Connector, (6) 1/0 to 1000 kcmil Outlets 4-3/8 inch Bolt Circle with (6) Insulating Rockets. Two Holes per Port - Tapped at 7/8-14 UNF-2B (Two Rows of Three Ports). 10-7/16 inch tall, 7-7/64 x 5 inch wide Port Base attached to 5-1/2 inch Outside Diameter Bolt Circle. Black PVC Coating. Includes (6) Plugs with Tethers, (12) 7/8-14 x 1-5/16 inch Screws, (8) Stainless Steel 10-24 x 1 inch Screws. Silicon Grease.

ABB Installation Products FTVB1000-33CUAWR438 Tin Plated Copper Network Connector, (6) 1/0 to 1000 kcmil Outlets 4-3/8 inch Bolt…

UPC: 075114392280


Documents & Media
Manufacturer Product Website

Contact for Pricing

Minimum Qty: 3

Multiplier: 3

*Contact for lower quantities*

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The ABB FTVB1000-33CUAWR438 is a tin-plated copper network connector designed for robust electrical connections. This unit features six (6) 1/0 to 1000 kcmil outlets, arranged in two rows of three ports each, on a 4-3/8 inch bolt circle. Each port is tapped at 7/8-14 UNF-2B, accommodating two holes for secure termination. The connector boasts a substantial overall height of 10-7/16 inches, with a port base measuring 7-7/64 x 5 inches, attached to a 5-1/2 inch outside diameter bolt circle. A durable black PVC coating provides environmental protection. Included with the FTVB1000-33CUAWR438 are six (6) insulating rockets, six (6) plugs with tethers for safe handling, twelve (12) 7/8-14 x 1-5/16 inch screws for port connections, and eight (8) stainless steel 10-24 x 1 inch screws for mounting. Silicon grease is also supplied to ensure optimal conductivity and longevity of connections. This connector is part of the FTVB series from ABB Installation Products, offering reliable stud-mount connections with screw termination. Its construction from tin-plated copper ensures excellent conductivity and corrosion resistance, while the PVC coating adds an extra layer of insulation and protection against environmental factors. The generous outlet capacity and robust construction make it suitable for high-capacity power distribution and network applications where reliability is paramount. SKU: FTVB1000-33CUAWR438. UNSPSC Code: 39121443.
  • Tin Plated Copper Network Connector with Black PVC Coating
  • Six (6) 1/0 to 1000 kcmil Outlets on 4-3/8 inch Bolt Circle
  • Ports Tapped at 7/8-14 UNF-2B (Two Rows of Three Ports)
  • Dimensions: 10-7/16 inch tall, 7-7/64 x 5 inch wide Port Base, 5-1/2 inch Bolt Circle
  • Includes Insulating Rockets, Plugs with Tethers, Screws, and Silicon Grease

Specifications

Color
Black
Conductor Range
1/0 to 1000 kcmil
Connection
Mechanical
Finish
Tin Plated
Insulation
Black PVC Coating and EPDM Rubber Insulated Rockets
Material
Copper
Number of Conductors
6
Size
10-7/16 inch tall, 5-1/2 inch wide Base Diameter
Special Features
Includes (6) Plugs, (12) 7/8-14 UNF-2B x 1.312 inch Screws, (8) Stainless Steel 10-24 x 1 inch Screws. Silicon Grease
Type
Network Connector
Width
5-1/2 in
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
21.0000 L
Package Weight (Metric)
9.5260 kg
