ABB - Installation Products FS 175-5 AWR - Aluminum Flood-Seal 175 Series connectors - one-way configuration, length 15 inch, outlets 5, includes Insulating Rockets.
ABB - Installation Products

FS 175-5 AWR

UPC: 075114398275

Documents & Media
Manufacturer Product Website

Contact for Pricing

Minimum Qty: 3

Multiplier: 3

*Contact for lower quantities*

Overview

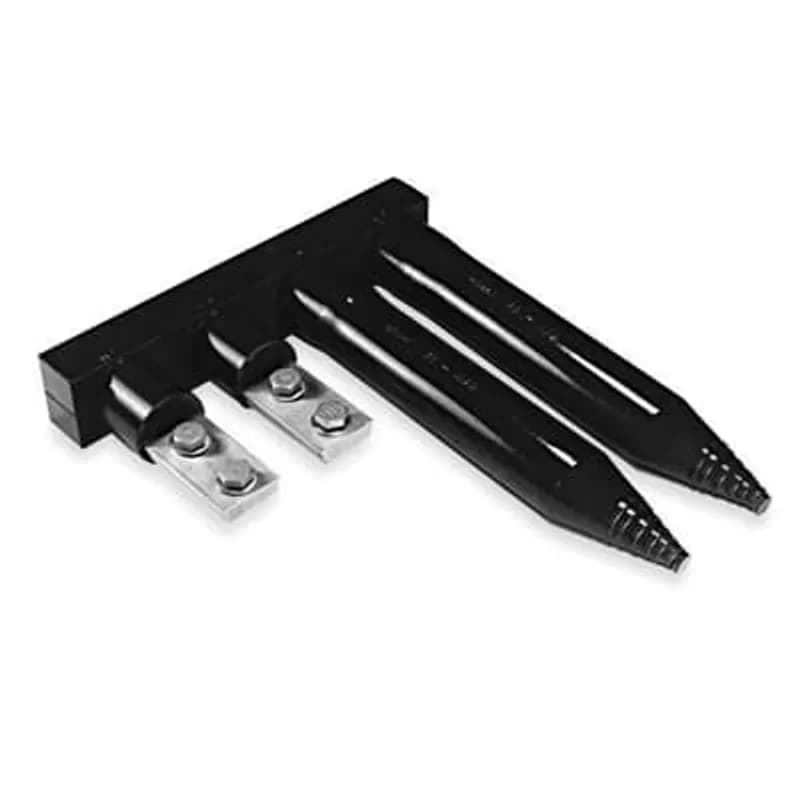

The ABB FS 175-5 AWR is a 175 Series Aluminum Flood-Seal connector designed for secure and reliable electrical connections. This specific model features a one-way configuration, a substantial 15-inch length, and accommodates five outlets. It is supplied with Insulating Rockets, which are crucial for ensuring proper insulation and preventing electrical shorts, especially in demanding industrial environments. The Flood-Seal design inherently offers protection against environmental ingress, making it suitable for applications where moisture or dust may be present. Constructed from aluminum, this connector provides good conductivity and corrosion resistance. The 175 Series is part of ABB's Installation Products catalog, known for its focus on electrical infrastructure components. This connector is ideal for splicing and terminating aluminum conductors in various industrial settings, including power distribution, control systems, and general electrical installations where a robust and sealed connection is paramount. The inclusion of Insulating Rockets simplifies the installation process while enhancing safety and long-term performance. SKU: FS 175-5 AWR.
  • ABB 175 Series Aluminum Flood-Seal Connector
  • One-way configuration
  • 15-inch length
  • Accommodates 5 outlets
  • Includes Insulating Rockets for enhanced safety and insulation

Specifications

Application
High Conductivity Aluminum Connector
Color
Black
Conductor Range
1/0 to 2000 kcmil
Connection
Mechanical
Insulation
EPDM Rubber
Material
Aluminum Connector, EPDM Rubber Insulation
Number Of Conductors
5
Size
15 inch
Special Features
EPDM Rubber Insulation Precision Molded for Uniform Quality. Connector made of Extruded High-Conductivity Electrolytic Aluminum for added Dimensional Stability. All Connectors are 100 Percent Hi-Pot tested at 4000 Volts for 60 seconds
Type
Flood Seal Multi Port Connector 175 Series
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
9.8200 L
Package Weight (Metric)
4.4540 kg
Aluminum Flood-Seal 175 Series connectors - two-way configuration, length 18 in , outlets 12

FS 66-175

Aluminum Flood-Seal 175 Series connectors - two-way configuration, length 18 in , outlets 12
Aluminum Sweetheart Flood Seal, Twin Screw Mechanical Connector for 350 kcmil. One-Way Outlets, Cable Range #6 to 350 kcmil with Streetlight option. Length 5-1/4 inch. 3 outlets. Each Outlet has two 5/8-18 UNF-2B Taps spaced on 7/8 inch centers. Black PVC Coated. Comes with Two Single Outlet Covers and One Outlet Cover with Streetlight. Includes Silicone Grease and Six 5/8-18 x .829 inch Screws. Less than 1000 volts.

UH 3 SLR

Aluminum Sweetheart Flood Seal, Twin Screw Mechanical Connector for 350 kcmil. One-Way Outlets, Cable Range #6 to 350 kcmil with Streetlight option. Length 5-1/4 inch. 3 outlets. Each Outlet has two 5/8-18 UNF-2B Taps spaced on 7/8 inch centers. Black PVC Coated. Comes with Two Single Outlet Covers and One Outlet Cover with Streetlight. Includes Silicone Grease and Six 5/8-18 x .829 inch Screws. Less than 1000 volts.
Aluminum Universal Quick Disconnect Transformer Connector Kit, Cable Range #6 to 500 Kcmil, Streetlight #14 to #2, Kit Includes (2) Bars with Boots and (1) Bare Bar.

EZB 6500 SLK

Aluminum Universal Quick Disconnect Transformer Connector Kit, Cable Range #6 to 500 Kcmil, Streetlight #14 to #2, Kit Includes (2) Bars with Boots and (1) Bare Bar.
Tin Plated Copper VISO Block Connector with Black PVC Coating. Four FS 1175 EPDM Rubber Insulating Rocket/Towers, 5-3/4 inch Outside Diameter Bolt Circle with 4-3/8 inch Bolt Diameter. Less Than 1000 Volts. 4-1/2 inch wide x 11-1/8 inch tall. Hardware includes (8) 1/2-13 UNC-2A Zinc Plated Steel Bolts with Captive Belleville Washers.

FTVB 175-22 CUAWR438

Tin Plated Copper VISO Block Connector with Black PVC Coating. Four FS 1175 EPDM Rubber Insulating Rocket/Towers, 5-3/4 inch Outside Diameter Bolt Circle with 4-3/8 inch Bolt Diameter. Less Than 1000 Volts. 4-1/2 inch wide x 11-1/8 inch tall. Hardware includes (8) 1/2-13 UNC-2A Zinc Plated Steel Bolts with Captive Belleville Washers.
Tin Plated Copper VISO Block Connector with Black PVC Coating. Four FS 1175 EPDM Rubber Insulating Rocket/Towers, 4-3/4 inch Outside Diameter Bolt Circle with 3-1/4 inch Bolt Diameter. Less Than 1000 Volts. 4-51/64 inch wide x 11-1/8 inch tall. Hardware includes (8) 1/2-13 UNC-2A Zinc Plated Steel Bolts with Captive Belleville Washers.

FTVB 175-22 CUAWR325

Tin Plated Copper VISO Block Connector with Black PVC Coating. Four FS 1175 EPDM Rubber Insulating Rocket/Towers, 4-3/4 inch Outside Diameter Bolt Circle with 3-1/4 inch Bolt Diameter. Less Than 1000 Volts. 4-51/64 inch wide x 11-1/8 inch tall. Hardware includes (8) 1/2-13 UNC-2A Zinc Plated Steel Bolts with Captive Belleville Washers.
Flood Seal 95 Series Terminal Force-Fit Kit with Hex Head Bolt, Aluminum, Insulating Outlet Sleeve, Wire Size - Concentric 336.4 to 350 kcmil, Compressed 350 kcmil, Compact 350 kcmil, Installation Dies 1 1/8-1, 299-655, 96, 13A, 321, 326. Includes Center-Formed Lug, Insulating Rocket, Hex Head Bolt, Belleville Washer and Installation Instructions. Lug is 3-1/16 inch long x 1-1/16 inch Diameter. Pad has one Hole 13/32 inch Diameter and is 3/4 inch long. Pre-fille with Oxide Inhibitor and has Brown Cap. Dual Rated for Aluminum and Copper Conductors

CFB 350 CSH

Flood Seal 95 Series Terminal Force-Fit Kit with Hex Head Bolt, Aluminum, Insulating Outlet Sleeve, Wire Size - Concentric 336.4 to 350 kcmil, Compressed 350 kcmil, Compact 350 kcmil, Installation Dies 1 1/8-1, 299-655, 96, 13A, 321, 326. Includes Center-Formed Lug, Insulating Rocket, Hex Head Bolt, Belleville Washer and Installation Instructions. Lug is 3-1/16 inch long x 1-1/16 inch Diameter. Pad has one Hole 13/32 inch Diameter and is 3/4 inch long. Pre-fille with Oxide Inhibitor and has Brown Cap. Dual Rated for Aluminum and Copper Conductors
Flood Seal, Copper Multi-Port Connector, for Wire Size #14 to 1/0, 4 Outlets, less than 1000 Volts. 3-15/64 inch long x 3/4 inch wide x 3.4 inch tall. Four Taps of 7/16-20 UNF-2B. Santoprene/Elastron coated. Includes Four Hex Drive Stainless Steel Set Screws 7/16-20 x 5/8 inch, Four Black Plugs, Four Caps and Instruction Sheet.

RAB 1/0-4 CU

Flood Seal, Copper Multi-Port Connector, for Wire Size #14 to 1/0, 4 Outlets, less than 1000 Volts. 3-15/64 inch long x 3/4 inch wide x 3.4 inch tall. Four Taps of 7/16-20 UNF-2B. Santoprene/Elastron coated. Includes Four Hex Drive Stainless Steel Set Screws 7/16-20 x 5/8 inch, Four Black Plugs, Four Caps and Instruction Sheet.
Tin Plated Copper Transformer Stud Adapter, 1-1/4 inch to 12-Hole Pad Stud Adapter, 12 Hole Pad, less than 1000 Volts. Pad 4 inch wide x 10-3/4 inch long x 1/4 inch thick with Twelve 9/16 inch Diameter holes on 1-3/4 inch centers. Stud tapped at 1 1/4-12 UNF-2B.

2042-41

Tin Plated Copper Transformer Stud Adapter, 1-1/4 inch to 12-Hole Pad Stud Adapter, 12 Hole Pad, less than 1000 Volts. Pad 4 inch wide x 10-3/4 inch long x 1/4 inch thick with Twelve 9/16 inch Diameter holes on 1-3/4 inch centers. Stud tapped at 1 1/4-12 UNF-2B.
