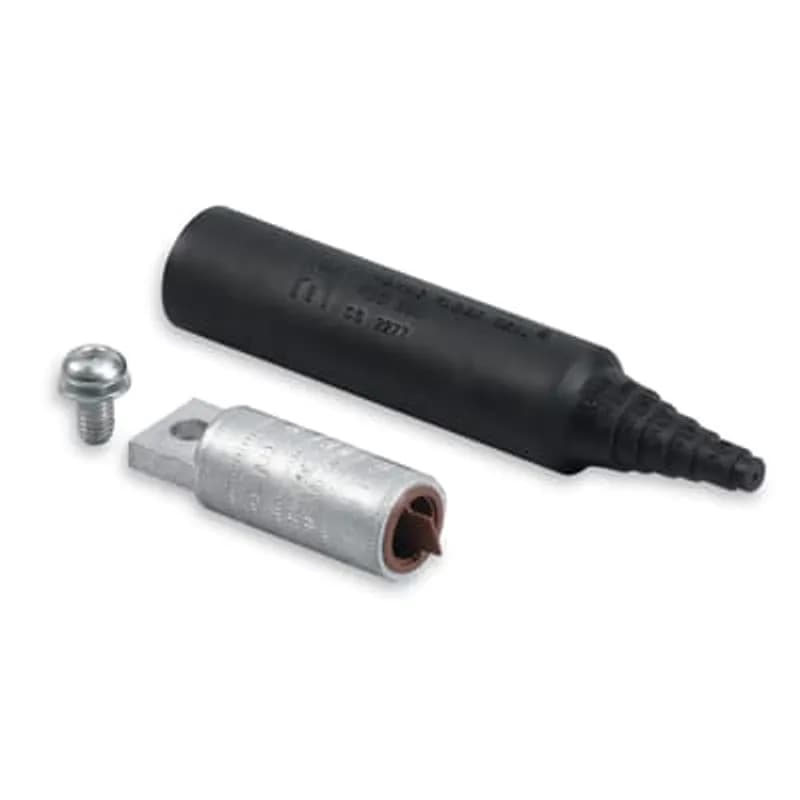

ABB Installation Products CFB 350 CSH Flood Seal 95 Series Terminal Force-Fit Kit with Hex Head Bolt, Aluminum, Insulating…
UPC: 075114402798
Documents & Media
Contact for Pricing
Minimum Qty: 50
Multiplier: 50
*Contact for lower quantities*
Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.
Overview
- Dual Rated for Aluminum and Copper Conductors
- Force-Fit design for secure connections
- Pre-filled with Oxide Inhibitor and Brown Cap
- Includes Center-Formed Lug, Insulating Sleeve, Hex Bolt, Belleville Washer
- Compatible with wire sizes 336.4 to 350 kcmil
Specifications
Application | Multi-port Connector |
Color | Black |
Conductor Range | 336.4 to 350 kcmil |
Connection | Compression |
Insulation | yes |
Material | Aluminum |
Special Features | Insulating Flood-Seal Rocket. Hex Head Screw |
Type | Flood Seal Multi Port Force Fit Connector |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 0.2900 L |
Package Weight (Metric) | 0.1320 kg |
RAB 4 OR
Multi Seal, Aluminum Insulated Bus Connector, #12 Solid - 350 kcmil, Aluminum and Copper, Four Conductor. Outward Rocket.
RAB 1/0-4 CU
Flood Seal, Copper Multi-Port Connector, for Wire Size #14 to 1/0, 4 Outlets, less than 1000 Volts. 3-15/64 inch long x 3/4 inch wide x 3.4 inch tall. Four Taps of 7/16-20 UNF-2B. Santoprene/Elastron coated. Includes Four Hex Drive Stainless Steel Set Screws 7/16-20 x 5/8 inch, Four Black Plugs, Four Caps and Instruction Sheet.
2042-41
Tin Plated Copper Transformer Stud Adapter, 1-1/4 inch to 12-Hole Pad Stud Adapter, 12 Hole Pad, less than 1000 Volts. Pad 4 inch wide x 10-3/4 inch long x 1/4 inch thick with Twelve 9/16 inch Diameter holes on 1-3/4 inch centers. Stud tapped at 1 1/4-12 UNF-2B.
RAB 1/0-3 CU
Flood Seal, Copper Multi-Port Connector, for Wire Size #14 to 1/0, 3 Outlets, less than 1000 Volts. 2-23/64 inch long x 3/4 inch wide x 3.4 inch tall. Three Taps of 7/16-20 UNF-2B. Santoprene/Elastron coated. Includes Three Hex Drive Stainless Steel Set Screws 7/16-20 x 5/8 inch, Three Black Plugs, Three Caps and Instruction Sheet.
UH 500-6 CURMH
Tin Plated Copper Flood Seal, Black PVC Coating, Twin Screw Mechanical Connector, #2 to 500 kcmil, 6 Outlets, Assembled with Rockets, with Mounting Brackets. Base 12-5/8 inch with (2) 2 inch x 6 inch legs with one 53/64 inch diameter hole on each side of base on each leg - Legs are on 7 inch centers. Connectors - 4-3/4 inch tall with two 13/16 inch diameter holes per connector on 1-5/16 inch center. Also includes (4) DELRIN Grommets Supplied for Mounting Purposes for 1/2 inch Hardware.
2043-7 V1
Tin Plated Copper Transformer Stud Adapter, 4/0 STR Copper, Stud Size 1/2 inch - Tapped 1/2-11 UNC-2B. Length 3-3/8 inch, Outside Diameter 7/8 inch. Oil Stop. Dies TX, 71, 168, 18, 840.
2042-39
Stud Adapter, Tin Plated Copper, Secondary, Transformer Spade, 7/8 inch stud to Six 9/16 inch Diameter holes on 1-3/4 inch centers NEMA pad 5-1/2 x 3 x 1/4 inch, Bolt 1/2 inch1 A 2270-250
Tin Plated Aluminum Threaded Adapter, Electrical Connector Greater than 1000 volts, Length 3-1/8 inch x Outside Diameter 29/32 inch. 250 kcmil Stranded. Dies TX, 249, 840 and 11A. Includes Oxide Inhibitor and Caps. Tapped at 5/8-11 UNC-2B.How to Install the FLOOD-SEAL® FS-95 Connector Kit
This guide provides step-by-step instructions for installing the FLOOD-SEAL® FS-95 Connector Kit, a force-fit type connector. Ensure installation is performed by trained installers in accordance with all applicable local, state, and national electrical codes, installation standards, and safety rules.
Estimated time: 30m
Tools needed:
Cable cleaning tool, Pencil, Cutting tool, Crimping tool, Wrench
Supplies needed:
FLOOD-SEAL® FS-95 Connector Kit, Cable, Lug, Bus, Silicone grease
- Clean the Cable
Clean the cable thoroughly before proceeding with the installation of the rocket sleeve.
- Pencil the Cable Insulation
Mark the cable insulation with a pencil as indicated by the connector specifications.
- Select the Correct Cut Ring
Refer to the cable range numbers embossed on each cut ring of the rocket sleeve. Match the conductor size being installed to the appropriate cut ring.
- Cut the Sleeve Tip
Cut off the tip of the rocket sleeve up to the selected ring. The correct cut will ensure the required conductor range remains visible on the sleeve.
- Lubricate and Install Rocket Sleeve
Lubricate both ends of the rocket sleeve and the cable with silicone grease. Hold the cable at an angle to the sleeve's opening. Twist the rocket sleeve while pushing it onto the cable until it is fully seated.
- Compress the Lug
Compress the lug onto the cable using the appropriate crimping tool to ensure a secure electrical connection.
- Position the Rocket Sleeve
Slide the rocket sleeve over the lug and onto the shoulder of the bus. Ensure the rocket sleeve butts firmly against the rubber of the connector bar.
- Bolt the Terminal
Bolt the terminal securely to the bus, ensuring all connections are tight and meet specified torque requirements.
