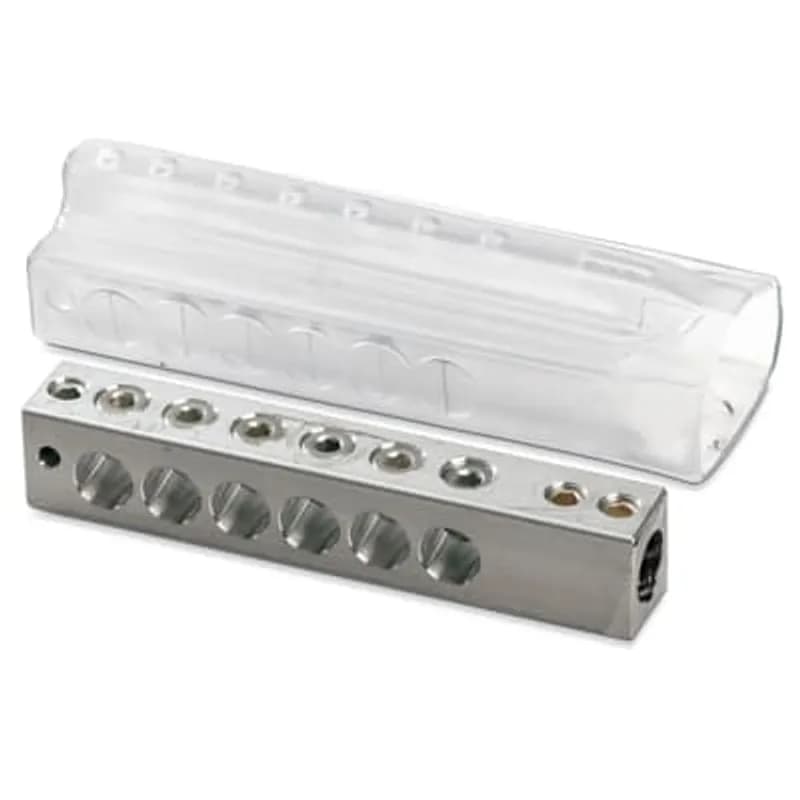

ABB - Installation Products EZB 6500 SLK - Aluminum Universal Quick Disconnect Transformer Connector Kit, Cable Range #6 to 500 Kcmil, Streetlight #14 to #2, Kit Includes (2) Bars with Boots and (1) Bare Bar.

ABB Installation Products EZB 6500 SLK Aluminum Universal Quick Disconnect Transformer Connector Kit, Cable Range #6 to 500…

UPC: 075114400374


Documents & Media
Manufacturer Product Website

Contact for Pricing

Minimum Qty: 6

Multiplier: 6

*Contact for lower quantities*

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The ABB EZB 6500 SLK is a robust Aluminum Universal Quick Disconnect Transformer Connector Kit, engineered by ABB Installation Products for reliable electrical connections. This kit is designed to accommodate a wide range of cable sizes, including #6 to 500 Kcmil for general applications and #14 to #2 for streetlight applications. The EZB 6500 SLK facilitates quick and secure connections, minimizing installation time and potential for error in critical infrastructure projects. Its universal design ensures compatibility with various transformer and electrical system configurations, making it a versatile component for utility, industrial, and municipal installations. The kit includes two insulated bars with boots and one bare bar, providing a complete solution for establishing safe and efficient electrical pathways. The aluminum construction offers excellent conductivity and corrosion resistance, ensuring long-term performance in diverse environmental conditions. The quick disconnect feature allows for rapid assembly and disassembly, which is invaluable during maintenance, upgrades, or emergency repairs. This connector kit is an essential component for ensuring the integrity and operational continuity of electrical distribution systems. Its straightforward design and durable materials contribute to a dependable and cost-effective electrical connection solution. The SKU for this product is EZB 6500 SLK. The UNSPSC code is 39121443.
  • Universal Aluminum Quick Disconnect Transformer Connector Kit
  • Accommodates cable sizes #6 to 500 Kcmil
  • Suitable for streetlight applications (#14 to #2)
  • Kit includes (2) bars with boots and (1) bare bar
  • Durable aluminum construction for conductivity and corrosion resistance

Specifications

Conductor Range
#6 to 500 kcmil
Connection
Mechanical
Finish
Bare
Insulation
False
Material
Aluminum
Size
8-3/4 in
Special Features
(2) Bars with Boots and (1) Bare Bar
Standard
ANSI C119.4
Type
Quick Disconnect Transformer Connector
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
5.5000 L
Package Weight (Metric)
2.4950 kg
Aluminum Quick Disconnect Transformer Connector, 6 Position, 8.328 Long, 6-500 MCM, Right Hand With PVC Cover

RAU 6500-6868 R-1

Aluminum Quick Disconnect Transformer Connector, 6 Position, 8.328 Long, 6-500 MCM, Right Hand With PVC Cover
Copper Reducing Adapter, 500 kcmil to 4/0. Length 2-13/32 inch. Outside Diameter 53/64 inch. Inside Diameter 39/64 inch on one side and 37/64 inch on other side. Ridged.

500 R 4/0

Copper Reducing Adapter, 500 kcmil to 4/0. Length 2-13/32 inch. Outside Diameter 53/64 inch. Inside Diameter 39/64 inch on one side and 37/64 inch on other side. Ridged.
Copper Reducing Coupler, 500 to 350 kcmil. Length 2.5 inch. Split along length. Ridged.

500 R 350

Copper Reducing Coupler, 500 to 350 kcmil. Length 2.5 inch. Split along length. Ridged.
Tin Plated Copper VISO Block Connector with Black PVC Coating. Four FS 1175 EPDM Rubber Insulating Rocket/Towers, 5-3/4 inch Outside Diameter Bolt Circle with 4-3/8 inch Bolt Diameter. Less Than 1000 Volts. 4-1/2 inch wide x 11-1/8 inch tall. Hardware includes (8) 1/2-13 UNC-2A Zinc Plated Steel Bolts with Captive Belleville Washers.

FTVB 175-22 CUAWR438

Tin Plated Copper VISO Block Connector with Black PVC Coating. Four FS 1175 EPDM Rubber Insulating Rocket/Towers, 5-3/4 inch Outside Diameter Bolt Circle with 4-3/8 inch Bolt Diameter. Less Than 1000 Volts. 4-1/2 inch wide x 11-1/8 inch tall. Hardware includes (8) 1/2-13 UNC-2A Zinc Plated Steel Bolts with Captive Belleville Washers.
Tin Plated Copper VISO Block Connector with Black PVC Coating. Four FS 1175 EPDM Rubber Insulating Rocket/Towers, 4-3/4 inch Outside Diameter Bolt Circle with 3-1/4 inch Bolt Diameter. Less Than 1000 Volts. 4-51/64 inch wide x 11-1/8 inch tall. Hardware includes (8) 1/2-13 UNC-2A Zinc Plated Steel Bolts with Captive Belleville Washers.

FTVB 175-22 CUAWR325

Tin Plated Copper VISO Block Connector with Black PVC Coating. Four FS 1175 EPDM Rubber Insulating Rocket/Towers, 4-3/4 inch Outside Diameter Bolt Circle with 3-1/4 inch Bolt Diameter. Less Than 1000 Volts. 4-51/64 inch wide x 11-1/8 inch tall. Hardware includes (8) 1/2-13 UNC-2A Zinc Plated Steel Bolts with Captive Belleville Washers.
Flood Seal 95 Series Terminal Force-Fit Kit with Hex Head Bolt, Aluminum, Insulating Outlet Sleeve, Wire Size - Concentric 336.4 to 350 kcmil, Compressed 350 kcmil, Compact 350 kcmil, Installation Dies 1 1/8-1, 299-655, 96, 13A, 321, 326. Includes Center-Formed Lug, Insulating Rocket, Hex Head Bolt, Belleville Washer and Installation Instructions. Lug is 3-1/16 inch long x 1-1/16 inch Diameter. Pad has one Hole 13/32 inch Diameter and is 3/4 inch long. Pre-fille with Oxide Inhibitor and has Brown Cap. Dual Rated for Aluminum and Copper Conductors

CFB 350 CSH

Flood Seal 95 Series Terminal Force-Fit Kit with Hex Head Bolt, Aluminum, Insulating Outlet Sleeve, Wire Size - Concentric 336.4 to 350 kcmil, Compressed 350 kcmil, Compact 350 kcmil, Installation Dies 1 1/8-1, 299-655, 96, 13A, 321, 326. Includes Center-Formed Lug, Insulating Rocket, Hex Head Bolt, Belleville Washer and Installation Instructions. Lug is 3-1/16 inch long x 1-1/16 inch Diameter. Pad has one Hole 13/32 inch Diameter and is 3/4 inch long. Pre-fille with Oxide Inhibitor and has Brown Cap. Dual Rated for Aluminum and Copper Conductors
Flood Seal, Copper Multi-Port Connector, for Wire Size #14 to 1/0, 4 Outlets, less than 1000 Volts. 3-15/64 inch long x 3/4 inch wide x 3.4 inch tall. Four Taps of 7/16-20 UNF-2B. Santoprene/Elastron coated. Includes Four Hex Drive Stainless Steel Set Screws 7/16-20 x 5/8 inch, Four Black Plugs, Four Caps and Instruction Sheet.

RAB 1/0-4 CU

Flood Seal, Copper Multi-Port Connector, for Wire Size #14 to 1/0, 4 Outlets, less than 1000 Volts. 3-15/64 inch long x 3/4 inch wide x 3.4 inch tall. Four Taps of 7/16-20 UNF-2B. Santoprene/Elastron coated. Includes Four Hex Drive Stainless Steel Set Screws 7/16-20 x 5/8 inch, Four Black Plugs, Four Caps and Instruction Sheet.
Tin Plated Copper Transformer Stud Adapter, 1-1/4 inch to 12-Hole Pad Stud Adapter, 12 Hole Pad, less than 1000 Volts. Pad 4 inch wide x 10-3/4 inch long x 1/4 inch thick with Twelve 9/16 inch Diameter holes on 1-3/4 inch centers. Stud tapped at 1 1/4-12 UNF-2B.

2042-41

Tin Plated Copper Transformer Stud Adapter, 1-1/4 inch to 12-Hole Pad Stud Adapter, 12 Hole Pad, less than 1000 Volts. Pad 4 inch wide x 10-3/4 inch long x 1/4 inch thick with Twelve 9/16 inch Diameter holes on 1-3/4 inch centers. Stud tapped at 1 1/4-12 UNF-2B.

Frequently Asked Questions

What cable sizes does the EZB 6500 SLK support?

The EZB 6500 SLK supports general cable ranges from #6 to 500 Kcmil and streetlight cable ranges from #14 to #2.

What components are included in the EZB 6500 SLK kit?

The kit includes two bars with boots and one bare bar.

What material is the EZB 6500 SLK connector kit made from?

The connector kit is constructed from aluminum.

What is the connection type for this transformer connector kit?

The connection type is a universal quick disconnect.
