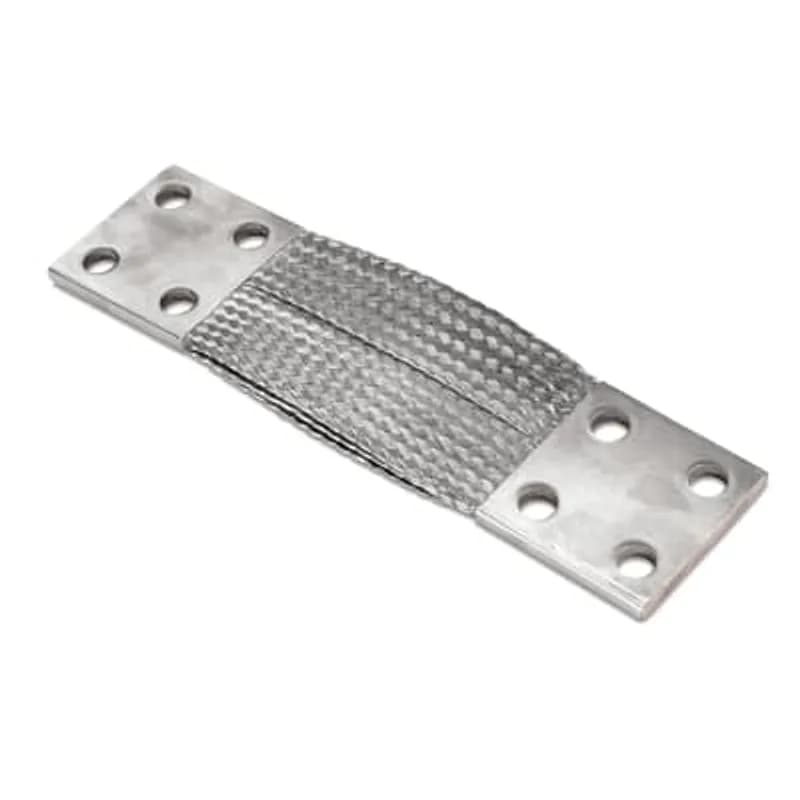

ABB - Installation Products FBS4H150A1-12 - 4-Hole NEMA Flexible Jumper Braid - Width 3 inch, Ferrule Length 3 inch, Center to Center Distance Between Holes Pad 1 1-3/4 inch, Pad 2 Center to Center Spacing 1-3/4 inch, Hole1 9/16 inch, Hole2 9/16 inch, Thickness 5/16 inch, Length 12 inches

ABB Installation Products FBS4H150A1-12 4-Hole NEMA Flexible Jumper Braid - Width 3 inch, Ferrule Length 3 inch, Center to…

UPC: 783786007318


Documents & Media
Specification SheetManufacturer Product Website

Contact for Pricing

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The ABB - Installation Products FBS4H150A1-12 is a robust 4-hole NEMA flexible jumper braid designed for reliable electrical connections in industrial applications. Engineered with precision, this jumper braid features a substantial 3-inch width and a 5/16-inch thickness, providing ample conductivity and durability. The total length of the jumper is 12 inches, offering flexibility in installation and routing. Each ferrule measures 3 inches, ensuring secure termination points. The center-to-center distance between holes on both pad 1 and pad 2 is precisely 1-3/4 inches, accommodating standard mounting hardware. Each hole is drilled to a 9/16-inch diameter, suitable for a variety of bolt sizes. This jumper braid is rated for NEMA applications, signifying its suitability for environments where protection against environmental factors is necessary. The FBS4H150A1-12 is part of the FBS4H150A1 series, indicating a consistent design and performance standard from ABB. Its construction is optimized for flexible grounding and bonding applications, ensuring efficient current transfer and system integrity. The material composition is chosen for its conductivity and resistance to corrosion, making it a dependable choice for long-term operational performance. When specifying electrical components, the detailed specifications of the ABB FBS4H150A1-12, including its generous width, thickness, and precise hole spacing, ensure proper fit and function within your electrical infrastructure. This jumper braid is an essential component for maintaining safe and efficient electrical systems, particularly in demanding industrial settings where reliable grounding and bonding are paramount. The SKU FBS4H150A1-12 clearly identifies this specific configuration for easy reordering and inventory management. Trust ABB - Installation Products for high-quality electrical connection solutions.
  • 4-Hole NEMA Flexible Jumper Braid
  • 3 inch Width, 5/16 inch Thickness, 12 inch Length
  • 1-3/4 inch Center-to-Center Hole Spacing (Pads 1 & 2)
  • 9/16 inch Hole Diameter
  • Manufacturer: ABB - Installation Products

Specifications

Application
Connect Transformers, Generators or Busbars wherever there is severe vibration or misalignment
Cable Length
12 in
Cable Length
304.8 mm
Cable Width
3 in
Cable Width
76.2 mm
Conductor Category
Flexible
Conductor Category
Class 5 = flexible
Conductor Material
Copper
Shape Of Conductor
Flat
Special Features
4-Hole NEMA Flexible Jumpers. 36 AWG individual wires in braid construction for extra flexibility. 99.9 percent pure copper ferrules on each end provide high conductivity. Individual wires are tinned prior to weaving to deliver maximum protection from corrosion
Standard
CEI60694, IEEE/ANSI C37.34-1994
Type
Flexible Braid Connector - 4-Hole
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
1.0000 L
Package Weight (Metric)
0.4540 kg
Tinned Copper, Standard Flexible Braid Connector, SWD Series, 4 Hole Pads with NEMA Standard 9/16 inch (14.3 mm) Holes and 1-3/4 inch (44.4 mm) Spacing Center to Center. 28.5 inch (724 mm) long, 4 inch (101.6 mm) wide, 1/4 inch (6.3 mm) thick. Pad 4 inch x 4 inch. 30 AWG Individual Strand. 1600 Amps

SWD160A1724

Tinned Copper, Standard Flexible Braid Connector, SWD Series, 4 Hole Pads with NEMA Standard 9/16 inch (14.3 mm) Holes and 1-3/4 inch (44.4 mm) Spacing Center to Center. 28.5 inch (724 mm) long, 4 inch (101.6 mm) wide, 1/4 inch (6.3 mm) thick. Pad 4 inch x 4 inch. 30 AWG Individual Strand. 1600 Amps
Insulated copper braid X=300 mm L=322mm 400A

45164030

Insulated copper braid X=300 mm L=322mm 400A
4-Hole NEMA Flexible Jumper Braid - Width 3 inch, Ferrule Length 3 inch, Center to Center Distance Between Holes Pad 1 1-3/4 inch, Pad 2 Center to Center Spacing 1-3/4 inch, Hole1 9/16 inch, Hole2 9/16 inch, Thickness 5/16 inch, Length 28 inches

FBS4H150A1-28

4-Hole NEMA Flexible Jumper Braid - Width 3 inch, Ferrule Length 3 inch, Center to Center Distance Between Holes Pad 1 1-3/4 inch, Pad 2 Center to Center Spacing 1-3/4 inch, Hole1 9/16 inch, Hole2 9/16 inch, Thickness 5/16 inch, Length 28 inches
4-Hole NEMA Flexible Jumper Braid - Width 3 inch, Ferrule Length 3 inch, Center to Center Distance Between Holes Pad 1 1-3/4 inch, Pad 2 Center to Center Spacing 1-3/4 inch, Hole1 9/16 inch, Hole2 9/16 inch, Thickness 3/8 inch, Length 36 inches

FBS4H215A1-36

4-Hole NEMA Flexible Jumper Braid - Width 3 inch, Ferrule Length 3 inch, Center to Center Distance Between Holes Pad 1 1-3/4 inch, Pad 2 Center to Center Spacing 1-3/4 inch, Hole1 9/16 inch, Hole2 9/16 inch, Thickness 3/8 inch, Length 36 inches
Tinned Copper Flat Braided Cable, 1-3/8 inch wide. 1 Layer in Braid, Number of Strands 48, Number of Wires per Strand 22, Individual Wire Size 30 AWG. Circular MIL Area 105,600.

FB-1482230-1

Tinned Copper Flat Braided Cable, 1-3/8 inch wide. 1 Layer in Braid, Number of Strands 48, Number of Wires per Strand 22, Individual Wire Size 30 AWG. Circular MIL Area 105,600.
Tinned Copper, Extra Flexible Braid Connector, EXB Series, 2-Hole Pads with NEMA Standard 9/16 inch (14.3 mm) Holes and 1-3/4 inch (44.4 mm) Spacing Center to Center, 18 inch (457 mm) long, 1-1/2 inch (38.1 mm) wide, 1/2 inch (12.7 mm) thick. Pad 3-1/2 inch x 1-1/2 inch. 6 Braids in Assembly. 36 AWG Individual Strand.

EXB150A1457

Tinned Copper, Extra Flexible Braid Connector, EXB Series, 2-Hole Pads with NEMA Standard 9/16 inch (14.3 mm) Holes and 1-3/4 inch (44.4 mm) Spacing Center to Center, 18 inch (457 mm) long, 1-1/2 inch (38.1 mm) wide, 1/2 inch (12.7 mm) thick. Pad 3-1/2 inch x 1-1/2 inch. 6 Braids in Assembly. 36 AWG Individual Strand.
Tinned Copper Flexible Braid Connector for Grounding, 6 inch length x 1.25 inch wide x .25 inch thick, Number of Braids in Assembly 2 - 1 Across and 2 Layers Thick. Pad 1.25 inch wide x 2.5 inch long. One 0.438 inch Diameter hole on each Pad. 153600 Circular Mil Area.

FB2D6-1

Tinned Copper Flexible Braid Connector for Grounding, 6 inch length x 1.25 inch wide x .25 inch thick, Number of Braids in Assembly 2 - 1 Across and 2 Layers Thick. Pad 1.25 inch wide x 2.5 inch long. One 0.438 inch Diameter hole on each Pad. 153600 Circular Mil Area.
Flat tinned copper braid construction 4 x (24 x 32 / 30)

FB-4243230-1

Flat tinned copper braid construction 4 x (24 x 32 / 30)

Frequently Asked Questions

What are the dimensions of the ABB jumper braid?

The ABB FBS4H150A1-12 jumper braid has a width of 3 inches, a thickness of 5/16 inch, and a total length of 12 inches.

What is the center-to-center distance between holes?

The center-to-center distance between holes on both pad 1 and pad 2 is 1-3/4 inches.

What is the hole diameter for this jumper braid?

The hole diameter for this jumper braid is 9/16 inch.

What is the ferrule length on the jumper braid?

The ferrule length for this jumper braid is 3 inches.

What NEMA rating does this flexible jumper braid have?

This flexible jumper braid has a NEMA rating.
