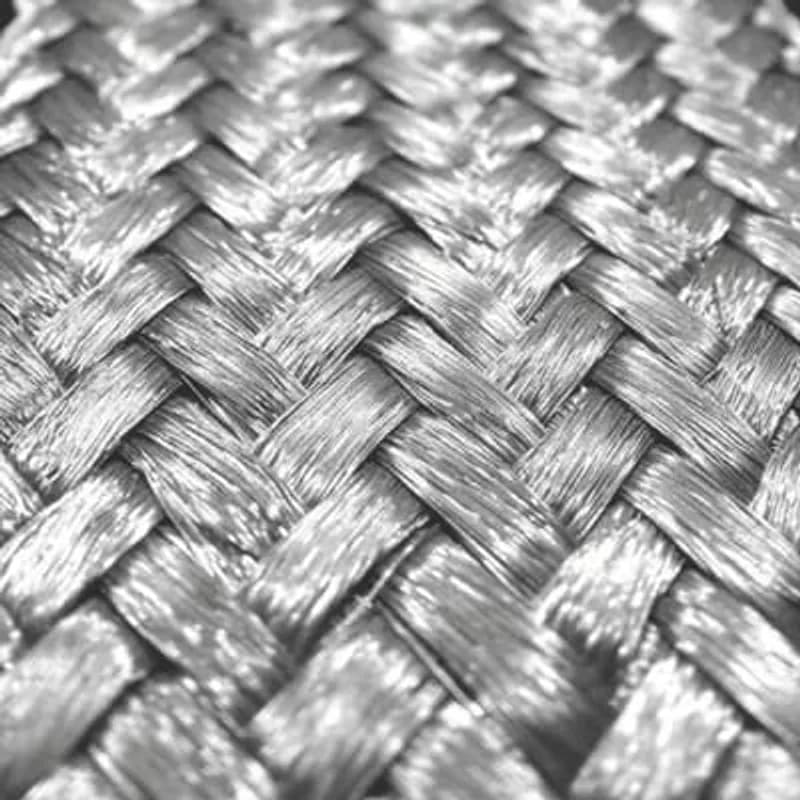

ABB - Installation Products FB-1482230-1 - Tinned Copper Flat Braided Cable, 1-3/8 inch wide. 1 Layer in Braid, Number of Strands 48, Number of Wires per Strand 22, Individual Wire Size 30 AWG. Circular MIL Area 105,600.
More images

ABB Installation Products FB-1482230-1 Tinned Copper Flat Braided Cable, 1-3/8 inch wide. 1 Layer in Braid, Number of Strands…

UPC: 783786040261


Documents & Media
Manufacturer Product Website

Contact for Pricing

Minimum Qty: 100

Multiplier: 100

*Contact for lower quantities*

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

This ABB Tinned Copper Flat Braided Cable (SKU: FB-1482230-1) is engineered for effective electrical grounding and bonding applications. Constructed with 48 strands, each composed of 22 individual wires of 30 AWG size, this braid offers substantial conductivity. The tinned copper construction provides excellent corrosion resistance, making it suitable for various industrial environments. Its 1-layer braid design ensures flexibility while maintaining structural integrity. The cable measures 1-3/8 inches in width, with a circular mil area of 105,600, indicating its capacity for handling significant current. This product is ideal for applications requiring reliable, low-impedance connections in electrical systems, machinery, and power distribution. ABB's commitment to quality in their Installation Products ensures dependable performance for your critical grounding needs. Key specifications include: * **Material:** Tinned Copper * **Braid Structure:** 1 Layer * **Width:** 1-3/8 inches * **Strand Count:** 48 * **Wires per Strand:** 22 * **Individual Wire Size:** 30 AWG * **Circular MIL Area:** 105,600 This flat braided cable is a practical choice for ensuring safety and operational efficiency in electrical installations.
  • Tinned copper for corrosion resistance
  • 1-3/8 inch wide flat braid construction
  • 48 strands, each with 22 wires of 30 AWG
  • 105,600 circular mil area for conductivity
  • ABB Installation Products quality

Specifications

Application
For Bonding, Grounding or Connecting Moving Parts
Cable Width
1-3/8 in
Conductor Category
Flexible
Conductor Category
Class 5 = flexible
Conductor Material
Copper
Shape Of Conductor
Flat
Special Features
Tin Plated for High Conductivity and Corrosion Resistance
Standard
ASTM-B33
Type
Flexible Braid Connector - 1-Hole
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
0.3500 L
Package Weight (Metric)
0.1590 kg
Tinned Copper, Standard Flexible Braid Connector, SWD Series, 4 Hole Pads with NEMA Standard 9/16 inch (14.3 mm) Holes and 1-3/4 inch (44.4 mm) Spacing Center to Center. 28.5 inch (724 mm) long, 4 inch (101.6 mm) wide, 1/4 inch (6.3 mm) thick. Pad 4 inch x 4 inch. 30 AWG Individual Strand. 1600 Amps

SWD160A1724

Tinned Copper, Standard Flexible Braid Connector, SWD Series, 4 Hole Pads with NEMA Standard 9/16 inch (14.3 mm) Holes and 1-3/4 inch (44.4 mm) Spacing Center to Center. 28.5 inch (724 mm) long, 4 inch (101.6 mm) wide, 1/4 inch (6.3 mm) thick. Pad 4 inch x 4 inch. 30 AWG Individual Strand. 1600 Amps
Insulated copper braid X=300 mm L=322mm 400A

45164030

Insulated copper braid X=300 mm L=322mm 400A
Tinned Copper, Extra Flexible Braid Connector, EXB Series, 2-Hole Pads with NEMA Standard 9/16 inch (14.3 mm) Holes and 1-3/4 inch (44.4 mm) Spacing Center to Center, 18 inch (457 mm) long, 1-1/2 inch (38.1 mm) wide, 1/2 inch (12.7 mm) thick. Pad 3-1/2 inch x 1-1/2 inch. 6 Braids in Assembly. 36 AWG Individual Strand.

EXB150A1457

Tinned Copper, Extra Flexible Braid Connector, EXB Series, 2-Hole Pads with NEMA Standard 9/16 inch (14.3 mm) Holes and 1-3/4 inch (44.4 mm) Spacing Center to Center, 18 inch (457 mm) long, 1-1/2 inch (38.1 mm) wide, 1/2 inch (12.7 mm) thick. Pad 3-1/2 inch x 1-1/2 inch. 6 Braids in Assembly. 36 AWG Individual Strand.
Tinned Copper Flexible Braid Connector for Grounding, 6 inch length x 1.25 inch wide x .25 inch thick, Number of Braids in Assembly 2 - 1 Across and 2 Layers Thick. Pad 1.25 inch wide x 2.5 inch long. One 0.438 inch Diameter hole on each Pad. 153600 Circular Mil Area.

FB2D6-1

Tinned Copper Flexible Braid Connector for Grounding, 6 inch length x 1.25 inch wide x .25 inch thick, Number of Braids in Assembly 2 - 1 Across and 2 Layers Thick. Pad 1.25 inch wide x 2.5 inch long. One 0.438 inch Diameter hole on each Pad. 153600 Circular Mil Area.
Flat tinned copper braid construction 4 x (24 x 32 / 30)

FB-4243230-1

Flat tinned copper braid construction 4 x (24 x 32 / 30)
Tinned Copper, Extra Flexible Braid Connector, EXB Series, 2-Hole Pads with NEMA Standard 9/16 inch (14.3 mm) Holes and 1-3/4 inch (44.4 mm) Spacing Center to Center, 12 inch (304 mm) long, 1-1/2 inch (38.1 mm) wide, 3/8 inch (9.5 mm) thick. Pad 3-1/2 inch x 1-1/2 inch. 4 Braids in Assembly. 36 AWG Individual Strand.

EXB110A1304

Tinned Copper, Extra Flexible Braid Connector, EXB Series, 2-Hole Pads with NEMA Standard 9/16 inch (14.3 mm) Holes and 1-3/4 inch (44.4 mm) Spacing Center to Center, 12 inch (304 mm) long, 1-1/2 inch (38.1 mm) wide, 3/8 inch (9.5 mm) thick. Pad 3-1/2 inch x 1-1/2 inch. 4 Braids in Assembly. 36 AWG Individual Strand.
Tinned Copper, Extra Flexible Braid Connector, EXB Series, 2-Hole Pads with NEMA Standard 9/16 inch (14.3 mm) Holes and 1-3/4 inch (44.4 mm) Spacing Center to Center, 16 inch (406 mm) long, 1-9/16 inch (40 mm) wide, 3/4 inch (19 mm) thick. Pad 3-1/2 inch x 1-9/16 inch. 9 Braids in Assembly. 36 AWG Individual Strand.

EXB170A1406

Tinned Copper, Extra Flexible Braid Connector, EXB Series, 2-Hole Pads with NEMA Standard 9/16 inch (14.3 mm) Holes and 1-3/4 inch (44.4 mm) Spacing Center to Center, 16 inch (406 mm) long, 1-9/16 inch (40 mm) wide, 3/4 inch (19 mm) thick. Pad 3-1/2 inch x 1-9/16 inch. 9 Braids in Assembly. 36 AWG Individual Strand.
Tinned Copper, Extra Flexible Braid Connector, EXA Series, 1-Hole Pads with NEMA Standard 7/16 inch (111.1 mm) Hole, 19.685 inch (500 mm) long, 1-1/2 inch (38 mm) wide, 3/16 inch (4.7 mm) thick. Pad 1.5 inch x 1.5 inch. 1 Braid in Assembly. 36 AWG Individual Strand.

EXA035A3500

Tinned Copper, Extra Flexible Braid Connector, EXA Series, 1-Hole Pads with NEMA Standard 7/16 inch (111.1 mm) Hole, 19.685 inch (500 mm) long, 1-1/2 inch (38 mm) wide, 3/16 inch (4.7 mm) thick. Pad 1.5 inch x 1.5 inch. 1 Braid in Assembly. 36 AWG Individual Strand.
