SWD160A1724

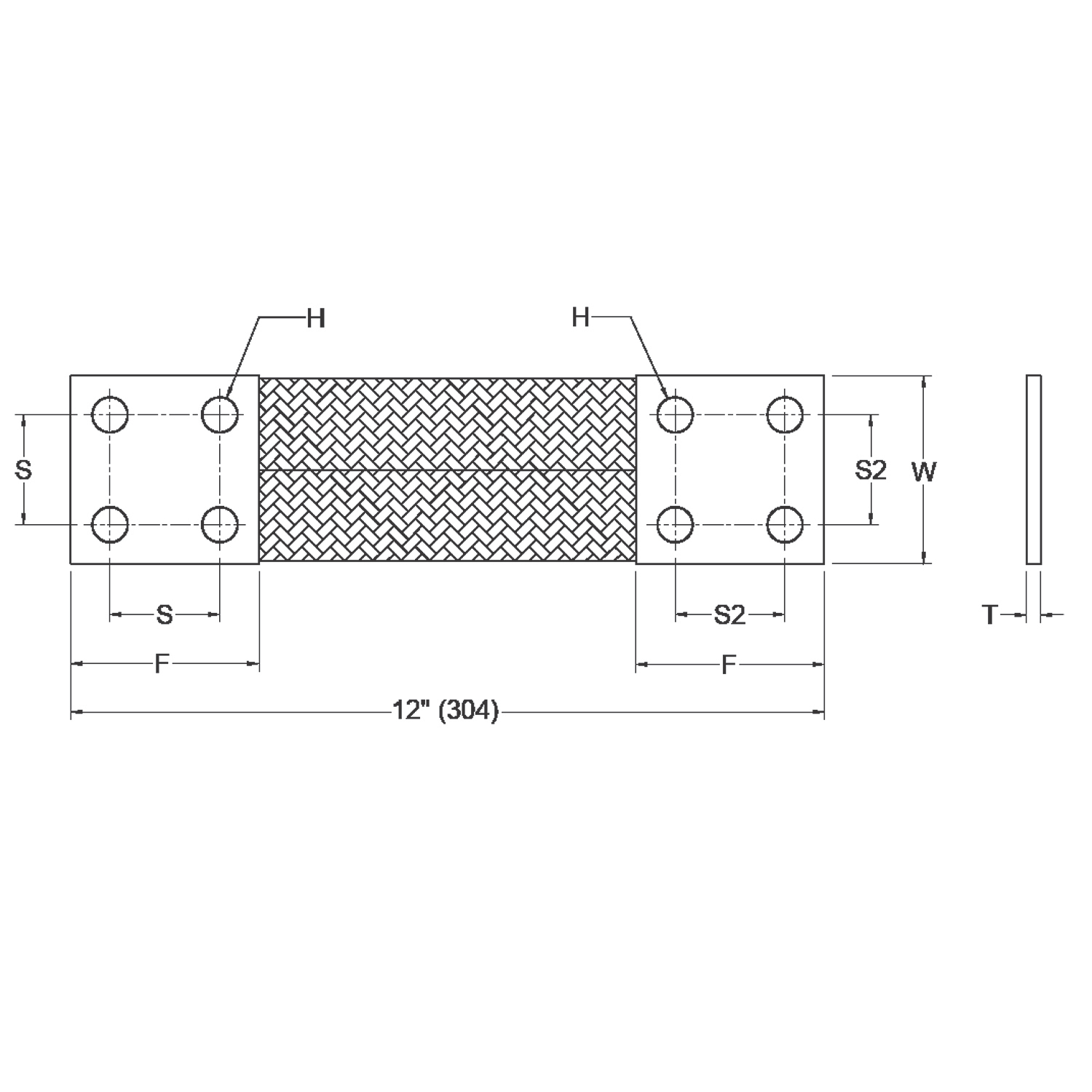

The SWD160A1 has dimensions: W is 4 inches, F is 4 inches, S is 1 3/4 inches, H is 9/16 inches, S2 is 1 3/4 inches, and T is 1/4 inches.

The SWD160A1 flexible braid weighs 2.54 lb (1,152 g).

The SWD-D series flexible connectors are designed to a 4/3-hole NEMA standard.

The SWD-C series flexible connectors are designed to a 4/2-hole NEMA standard.

The SWD-A series flexible connectors are designed to a 4-hole NEMA standard.

The SWD series flexible braids are made with 30 AWG individual strands.

The standard ferrules for the SWD series are electro-tin plated.

Yes, if different lengths are required, you can add your desired length in millimeters to the end of the part number. For example, SWD160A1406 is for a 16-inch long connector.

The standard total length for SWD series flexible connectors is 304 mm (12 inches).

The SWD series flexible braids have ampacities of 1,600A, 1,900A, or 2,100A, depending on the specific catalog number. This ampacity is rated at a 65°C temperature rise.
