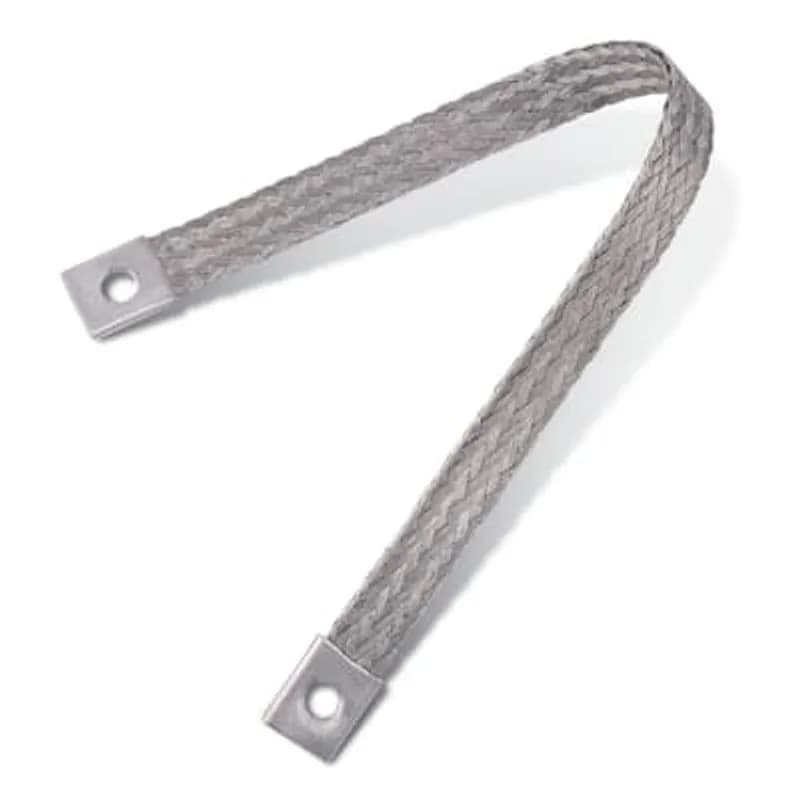

ABB - Installation Products FB2D12-1 - Tinned Copper Flexible Braid Connector for Grounding, 12 inch length x 1.25 inch wide x .25 inch thick, Number of Braids in Assembly 2 - 1 Across and 2 Layers Thick. Pad 1.25 inch wide x 2.5 inch long. One 0.438 inch Diameter hole on each Pad. 153600 Circular Mil Area.

ABB Installation Products FB2D12-1 Tinned Copper Flexible Braid Connector for Grounding, 12 inch length x 1.25 inch wide x…

UPC: 783786419579

Documents & Media
Manufacturer Product Website

Contact for Pricing

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The ABB FB2D12-1 is a tinned copper flexible braid connector designed for high-current grounding applications. This connector features a 12-inch length, 1.25-inch width, and 0.25-inch thickness, with a 153,600 circular mil area for robust current handling. The braid assembly consists of two layers with two braids each, providing enhanced flexibility and durability. Each pad measures 1.25 inches wide by 2.5 inches long, with a 0.438-inch diameter hole for secure mounting. The tinned copper construction ensures corrosion resistance and reliable electrical conductivity, making it ideal for industrial grounding systems, electrical panels, and equipment bonding. Compatible with standard grounding hardware, this connector meets stringent electrical safety and performance requirements. Use in applications requiring high conductivity and flexibility, such as switchgear, transformers, and motor control centers.
  • Tinned copper construction for corrosion resistance and high conductivity
  • 12-inch length x 1.25-inch width x 0.25-inch thickness
  • 153,600 circular mil area for high-current grounding
  • Two-layer braid assembly with two braids per layer for flexibility
  • 1.25" x 2.5" pads with 0.438" diameter mounting holes

Specifications

Application
For continuous current, grounding and bonding applications
Cable Length
12 in
Cable Length
304.8 mm
Cable Width
1.25 in
Cable Width
31.75 mm
Conductor Category
Flexible
Conductor Category
Class 5 = flexible
Conductor Material
Copper
Material
Tinned Copper
Shape Of Conductor
Flat
Size
12 inch length x 1.25 inch wide x 0.25 inch thick
Special Features
Tin-Plated Copper Braids and Ferrules for High Conductivity and Corrosion Resistance. Enables Linear Expansion, Equipment Vibration and Offset Connections
Standard
UL E3060, CSA LR29625
Type
Flexible Braid Connector - 1-Hole
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
0.7600 L
Package Weight (Metric)
0.3450 kg
Insulated copper braid X=300 mm L=322mm 400A

45164030

Insulated copper braid X=300 mm L=322mm 400A
Tinned Copper, Standard Flexible Braid Connector, SWC Series, 4-Hole Pads with NEMA Standard 9/16 inch (14.3 mm) Holes and 1-3/4 inch (44.4 mm) Spacing Center to Center, 23.8 inch (605 mm) long, 3 inch (76.2 mm) wide, 3/8 inch (9.5 mm) thick. Pad 3 inch x 3 inch. 30 AWG Individual Strand.

SWC215A1605

Tinned Copper, Standard Flexible Braid Connector, SWC Series, 4-Hole Pads with NEMA Standard 9/16 inch (14.3 mm) Holes and 1-3/4 inch (44.4 mm) Spacing Center to Center, 23.8 inch (605 mm) long, 3 inch (76.2 mm) wide, 3/8 inch (9.5 mm) thick. Pad 3 inch x 3 inch. 30 AWG Individual Strand.
Tinned Copper Flexible Braids for Grounding, 24000 Circular Mil Area, Bolt Hole 1/4, 18 inch length, Number of Braids in Ferrule 1, 1 Bolt Hole in Ferrule

FBB18-1

Tinned Copper Flexible Braids for Grounding, 24000 Circular Mil Area, Bolt Hole 1/4, 18 inch length, Number of Braids in Ferrule 1, 1 Bolt Hole in Ferrule
Tinned Copper Flexible Braid Connector, 1-Hole NEMA Extra Flexible Jumper. 168000 Circular Mils, 1 Braid in Assembly. 16 Inches Total Length, 1.25 inch Wide, 0.25 inch Thick. Pad 1.25 wide x 1.5 inch long, Bolt Hole 9/16 inch, 1 in each Ferrule. CSA and UL Certified.

FBE16-1

Tinned Copper Flexible Braid Connector, 1-Hole NEMA Extra Flexible Jumper. 168000 Circular Mils, 1 Braid in Assembly. 16 Inches Total Length, 1.25 inch Wide, 0.25 inch Thick. Pad 1.25 wide x 1.5 inch long, Bolt Hole 9/16 inch, 1 in each Ferrule. CSA and UL Certified.
Tin Plated Copper, Flexible Braid Connector, 1 Hole Pad - 0.563 inch diameter, 12.00 inches long x 1.25 inch wide x .3 inch thick. FB2XD-1 Series Standard. Pad 1.25 inch wide x 1.5 inch long. 2 Braids in Assembly 1 Across x 2 Layers Thick.

FB2XD12-1

Tin Plated Copper, Flexible Braid Connector, 1 Hole Pad - 0.563 inch diameter, 12.00 inches long x 1.25 inch wide x .3 inch thick. FB2XD-1 Series Standard. Pad 1.25 inch wide x 1.5 inch long. 2 Braids in Assembly 1 Across x 2 Layers Thick.
Flexible Copper Tin-Plated Flat Braid for Grounding and Substation Applications, 76800 Circular Mil Area, .200 inch Thick, 1.000 inch Width, Ferrules or Lugs not included. Cable only, sold in roll. Minimum quantities apply to some products contact your representative for more information.

FBDRL

Flexible Copper Tin-Plated Flat Braid for Grounding and Substation Applications, 76800 Circular Mil Area, .200 inch Thick, 1.000 inch Width, Ferrules or Lugs not included. Cable only, sold in roll. Minimum quantities apply to some products contact your representative for more information.
Flexible Copper Tin-Plated Flat Braid for Grounding and Substation Applications, 24000 Circular Mil Area, .140 inch Thick, .625 inch Width, Ferrules or Lugs not included. Cable only, sold in roll. Minimum quantities apply to some products contact your representative for more information.

FBBRL

Flexible Copper Tin-Plated Flat Braid for Grounding and Substation Applications, 24000 Circular Mil Area, .140 inch Thick, .625 inch Width, Ferrules or Lugs not included. Cable only, sold in roll. Minimum quantities apply to some products contact your representative for more information.
Flexible Tin-Plated Copper Flat Braid for Grounding and Substation Applications, 0.250 inch Thick, 1.250 inch Width, Ferrules and Lugs not included. Cable only, sold in roll. Minimum quantities apply to some products contact your representative for more information.

FBXDRL

Flexible Tin-Plated Copper Flat Braid for Grounding and Substation Applications, 0.250 inch Thick, 1.250 inch Width, Ferrules and Lugs not included. Cable only, sold in roll. Minimum quantities apply to some products contact your representative for more information.

Frequently Asked Questions

What is the circular mil area of the FB2D12-1?

The FB2D12-1 has a circular mil area of 153,600 CM.

How many braids are in the FB2D12-1 assembly?

The FB2D12-1 has two braids arranged in two layers.

What are the dimensions of the FB2D12-1 pads?

Each pad measures 1.25 inches wide by 2.5 inches long.

What is the hole diameter for mounting the FB2D12-1?

Each pad has a 0.438-inch diameter hole for mounting.

What material is the FB2D12-1 made from?

The FB2D12-1 is made from tinned copper for corrosion resistance.
