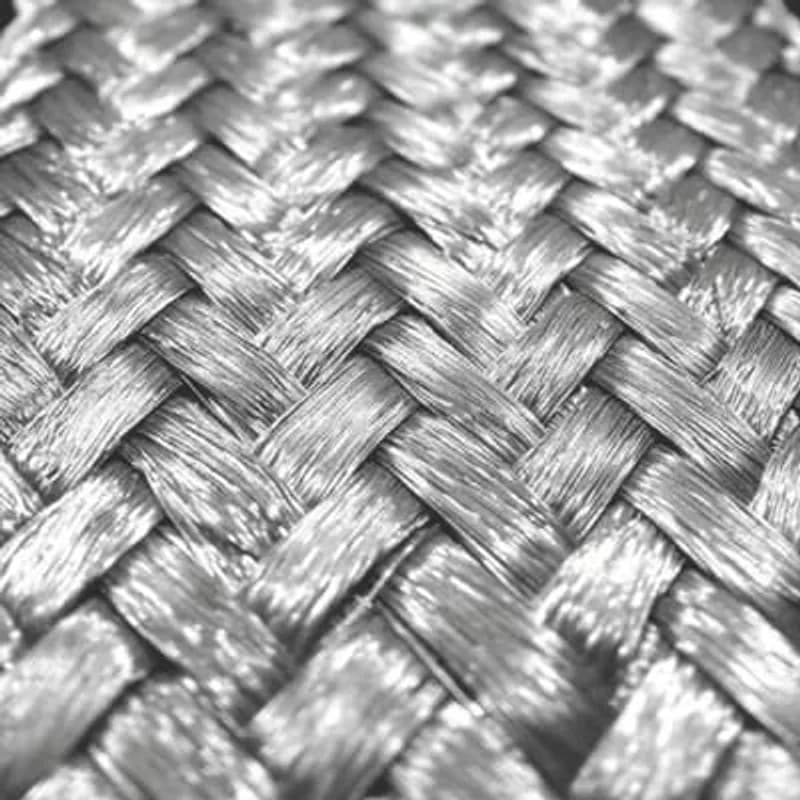

ABB - Installation Products FBB18-1 - Tinned Copper Flexible Braids for Grounding, 24000 Circular Mil Area, Bolt Hole 1/4, 18 inch length, Number of Braids in Ferrule 1, 1 Bolt Hole in Ferrule

ABB Installation Products FBB18-1 Tinned Copper Flexible Braids for Grounding, 24000 Circular Mil Area, Bolt Hole 1/4, 18…

UPC: 783786409778

Documents & Media
Manufacturer Product Website

Contact for Pricing

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

ABB FBB18-1 Tinned Copper Flexible Braid (SKU FBB18-1) is designed for grounding applications. Constructed from tinned copper, it offers high conductivity and corrosion resistance. Key specs: 24,000 circular mil area, 1/4" bolt hole, 18" length. Each ferrule includes one braid and one bolt hole for secure termination. Compatible with standard fastening hardware. Meets industrial grounding requirements for electrical safety and system integrity. Tinned copper construction ensures low-resistance connections in oxidizing environments. Handles significant current due to 24,000 circular mil area. 1/4" bolt hole standard for easy integration. 18" length provides flexible installation positioning. Maintains proper electrical potential and safely dissipates fault currents. Part of ABB Installation Products line, ensuring reliable performance.
  • Tinned Copper construction for corrosion resistance and conductivity
  • 24,000 Circular Mil Area for substantial grounding capacity
  • 1/4 inch Bolt Hole for standard hardware compatibility
  • 18 inch length for flexible installation
  • Single braid and single bolt hole per ferrule for secure termination

Specifications

Application
Flexible Copper Braids for use in Substation and Grounding Applications
Cable Length
18 in
Cable Length
457.2 mm
Cable Width
0.625 in
Cable Width
15.875 mm
Conductor Category
Flexible
Conductor Category
Class 5 = flexible
Conductor Material
Copper
Shape Of Conductor
Flat
Special Features
Tin-Plated Copper Braids and Ferrules for High Conductivity and Corrosion Resistance. Enables Linear Expansion, Equipment Vibration and Offset Connections
Standard
UL E3060, CSA LR29625
Type
Flexible Braid Connector - 1-Hole
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
0.1000 L
Package Weight (Metric)
0.0450 kg
Insulated copper braid X=300 mm L=322mm 400A

45164030

Insulated copper braid X=300 mm L=322mm 400A
Flexible Braid 105.6 kcmil, Tinned, 12 Inch Long x 1 inch Wide x 1/4 inch Thick. Pad is 2-1/2 inch long with Two 9/16 inch In-Line Holes on 1-1/4 inch Centers.

FBXD12

Flexible Braid 105.6 kcmil, Tinned, 12 Inch Long x 1 inch Wide x 1/4 inch Thick. Pad is 2-1/2 inch long with Two 9/16 inch In-Line Holes on 1-1/4 inch Centers.
Tinned Copper Flexible Braid Connector, 1-Hole NEMA Extra Flexible Jumper. 168000 Circular Mils, 1 Braid in Assembly. 16 Inches Total Length, 1.25 inch Wide, 0.25 inch Thick. Pad 1.25 wide x 1.5 inch long, Bolt Hole 9/16 inch, 1 in each Ferrule. CSA and UL Certified.

FBE16-1

Tinned Copper Flexible Braid Connector, 1-Hole NEMA Extra Flexible Jumper. 168000 Circular Mils, 1 Braid in Assembly. 16 Inches Total Length, 1.25 inch Wide, 0.25 inch Thick. Pad 1.25 wide x 1.5 inch long, Bolt Hole 9/16 inch, 1 in each Ferrule. CSA and UL Certified.
Tin Plated Copper, Flexible Braid Connector, 1 Hole Pad - 0.563 inch diameter, 12.00 inches long x 1.25 inch wide x .3 inch thick. FB2XD-1 Series Standard. Pad 1.25 inch wide x 1.5 inch long. 2 Braids in Assembly 1 Across x 2 Layers Thick.

FB2XD12-1

Tin Plated Copper, Flexible Braid Connector, 1 Hole Pad - 0.563 inch diameter, 12.00 inches long x 1.25 inch wide x .3 inch thick. FB2XD-1 Series Standard. Pad 1.25 inch wide x 1.5 inch long. 2 Braids in Assembly 1 Across x 2 Layers Thick.
Flexible Copper Tin-Plated Flat Braid for Grounding and Substation Applications, 76800 Circular Mil Area, .200 inch Thick, 1.000 inch Width, Ferrules or Lugs not included. Cable only, sold in roll. Minimum quantities apply to some products contact your representative for more information.

FBDRL

Flexible Copper Tin-Plated Flat Braid for Grounding and Substation Applications, 76800 Circular Mil Area, .200 inch Thick, 1.000 inch Width, Ferrules or Lugs not included. Cable only, sold in roll. Minimum quantities apply to some products contact your representative for more information.
Flexible Copper Tin-Plated Flat Braid for Grounding and Substation Applications, 24000 Circular Mil Area, .140 inch Thick, .625 inch Width, Ferrules or Lugs not included. Cable only, sold in roll. Minimum quantities apply to some products contact your representative for more information.

FBBRL

Flexible Copper Tin-Plated Flat Braid for Grounding and Substation Applications, 24000 Circular Mil Area, .140 inch Thick, .625 inch Width, Ferrules or Lugs not included. Cable only, sold in roll. Minimum quantities apply to some products contact your representative for more information.
Flexible Tin-Plated Copper Flat Braid for Grounding and Substation Applications, 0.250 inch Thick, 1.250 inch Width, Ferrules and Lugs not included. Cable only, sold in roll. Minimum quantities apply to some products contact your representative for more information.

FBXDRL

Flexible Tin-Plated Copper Flat Braid for Grounding and Substation Applications, 0.250 inch Thick, 1.250 inch Width, Ferrules and Lugs not included. Cable only, sold in roll. Minimum quantities apply to some products contact your representative for more information.
Flexible Copper Tin-Plated Flat Braid for Grounding and Substation Applications, 48000 Circular Mil Area, .148 inch Thick, 1.000 inch Width, Ferrules or Lugs not included. Cable only, sold in roll. Minimum quantities apply to some products contact your representative for more information.

FBCRL

Flexible Copper Tin-Plated Flat Braid for Grounding and Substation Applications, 48000 Circular Mil Area, .148 inch Thick, 1.000 inch Width, Ferrules or Lugs not included. Cable only, sold in roll. Minimum quantities apply to some products contact your representative for more information.

Frequently Asked Questions

What is the material of the FBB18-1 flexible braid?

The FBB18-1 flexible braid is constructed from tinned copper.

What is the circular mil area of this grounding braid?

This grounding braid has a circular mil area of 24,000.

What is the bolt hole size on the FBB18-1 braid?

The FBB18-1 braid features a 1/4 inch bolt hole.

What is the total length of the FBB18-1 flexible braid?

The FBB18-1 flexible braid is 18 inches in length.

How many braids are in the ferrule of the FBB18-1?

There is one braid in the ferrule of the FBB18-1.

How many bolt holes are in the ferrule of the FBB18-1?

There is one bolt hole in the ferrule of the FBB18-1.
