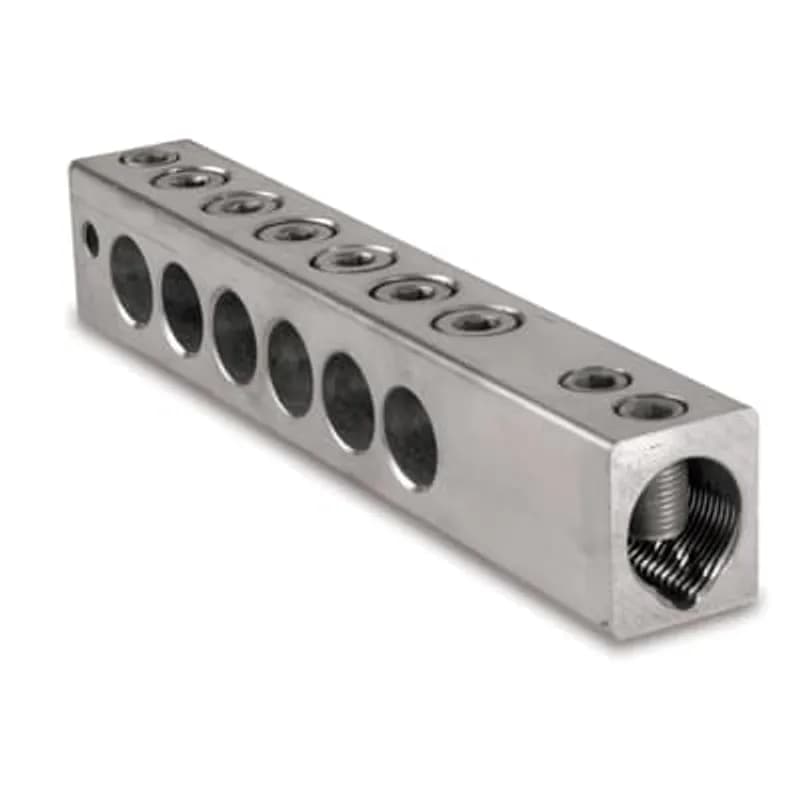

ABB - Installation Products EZB8600-8536 SLCTSTN - Aluminum Bar, Easy Mount, Compounded, 8 Positions, Wire Ports 6-600 MCM, 11.18 X 1.375 X 1.75, with SL - StreetLight Option, C - Oxide Inhibitor, TS - Torque Shear Head Screws, TN - Tin Plated

ABB Installation Products EZB8600-8536 SLCTSTN Aluminum Bar, Easy Mount, Compounded, 8 Positions, Wire Ports 6-600 MCM, 11.18 X 1.375 X…

UPC: 783786723218


Documents & Media
Manufacturer Product Website

Contact for Pricing

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The ABB EZB8600-8536 SLCTSTN is an 8-position aluminum bar designed for easy mounting in electrical distribution systems. This compounded bar features wire ports accommodating conductors from 6 to 600 MCM, providing flexibility for high-current applications. The bar measures 11.18 inches in length, 1.375 inches in width, and 1.75 inches in height, ensuring compatibility with standard enclosures and mounting configurations. The SLCTSTN configuration includes the StreetLight option, oxide inhibitor for corrosion resistance, torque shear head screws for secure fastening, and tin plating for enhanced conductivity and longevity. The StreetLight option is specifically designed for streetlight and outdoor lighting applications, where reliable power distribution and environmental resistance are critical. This bar is ideal for use in utility, commercial, and industrial electrical panels, particularly in outdoor or harsh environments where corrosion resistance and secure connections are essential. The oxide inhibitor helps prevent oxidation, maintaining electrical integrity over time, while the torque shear screws ensure consistent clamping force, reducing the risk of loose connections.
  • 8-position aluminum bar for electrical distribution
  • Wire ports accommodate 6-600 MCM conductors
  • StreetLight option for outdoor lighting applications
  • Oxide inhibitor for corrosion resistance
  • Torque shear head screws and tin plating for durability

Specifications

Conductor Range
#6 to 600 kcmil
Connection
Mechanical
Connection Type
6-600 MCM Wire Ports
Finish
Tin Plated
Insulation
False
Material
Aluminum
Mounting Type
Easy Mount
Poles
8
Series
EZB8600
Size
11.18 X 1.375 X 1.75 inch
Size
11.18 X 1.375 X 1.75
Type
Quick-Disconnect Transformer Connector
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
1.8400 L
Package Weight (Metric)
0.8350 kg
