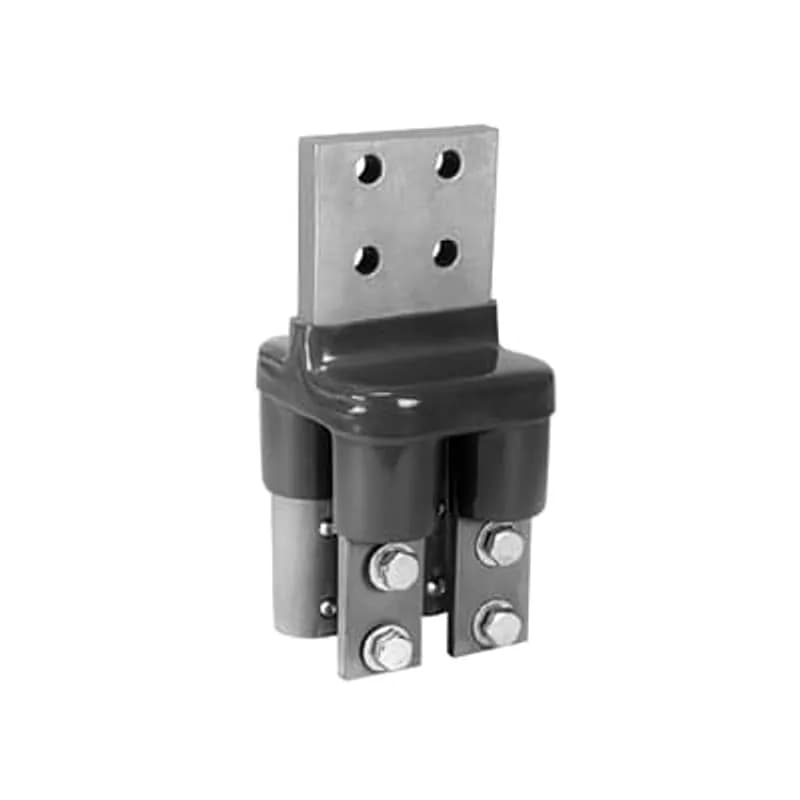

ABB - Installation Products FTN 175-22 - Aluminum Pad-Mount 175 Series Transformer Spade Connector - Double Row Style, Total Outlets 4, Length 4 1/4 inch, Pad 4 inch wide x 4.5 inch tall. 4-Holes with 1.75 inch spacing. Gray PVC Coating. Includes 8 Screws for Towers/Outlets.

ABB Installation Products FTN 175-22 Aluminum Pad-Mount 175 Series Transformer Spade Connector - Double Row Style, Total…

UPC: 783786726639

Documents & Media
Manufacturer Product Website

Contact for Pricing

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The ABB FTN 175-22 is a robust aluminum pad-mount transformer spade connector designed for reliable electrical connections. Manufactured by ABB Installation Products, this double-row style connector features a total of four outlets, facilitating multiple connections from a single point. Its substantial length of 4 1/4 inches and a pad measuring 4 inches wide by 4.5 inches tall provide a stable and secure mounting platform. The connector is equipped with four holes, spaced 1.75 inches apart, ensuring precise alignment for tower or outlet connections. A durable gray PVC coating offers protection against environmental factors and electrical insulation, enhancing safety and longevity. This unit includes eight screws specifically for towers and outlets, simplifying installation and ensuring a complete assembly out of the box. The FTN 175-22 is an essential component for electrical distribution and transformer applications where secure and organized connections are paramount. Its construction from aluminum ensures excellent conductivity and resistance to corrosion, making it suitable for demanding industrial environments. The double-row configuration maximizes connection density within a compact footprint, optimizing space utilization in electrical enclosures and substations.
  • Aluminum pad-mount transformer spade connector
  • Double row style with 4 total outlets
  • Pad dimensions: 4" wide x 4.5" tall
  • 4-hole configuration with 1.75" spacing
  • Durable gray PVC coating for protection

Specifications

Color
Gray
Conductor Range
4/0 to 1000 kcmil
Connection
Mechanical
Connection Type
Screw Terminal
Finish
Bare
Insulation
True
Material
Aluminum
Mounting Type
Pad-mount
Poles
4
Series
175 Series
Size
Length 4-1/4 inches
Size
4 1/4 inch length, 4 inch width x 4.5 inch height
Standard
Meets or Exceeds ANSI C119.4 Specifications
Type
Transformer Spade Connector
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
1.0000 L
Package Weight (Metric)
0.4540 kg
Flood Seal Aluminum Transformer Spade Connector, Aluminum-Copper, Five 2-Hole Towers, Pad on Right hand side. 11.75 inch wide x 10.25 inch tall. 4-Hole Pad is 3.810 inch wide x 3.75 inch tall x .75 inch thick. Gray PVC Coating. Includes 10 Screws for Towers.

FTN 175-5 R

Flood Seal Aluminum Transformer Spade Connector, Aluminum-Copper, Five 2-Hole Towers, Pad on Right hand side. 11.75 inch wide x 10.25 inch tall. 4-Hole Pad is 3.810 inch wide x 3.75 inch tall x .75 inch thick. Gray PVC Coating. Includes 10 Screws for Towers.
Copper 175 Series Clamp-On Style Transformer and Network Protection Connectors - vertical cable leads, stud size 1/2 inch, outlets 10, Tin Plated, with Assembly Rockets, 9.50 Height, 13.75 tower width

FTT 55-175-30 CUTNAR

Copper 175 Series Clamp-On Style Transformer and Network Protection Connectors - vertical cable leads, stud size 1/2 inch, outlets 10, Tin Plated, with Assembly Rockets, 9.50 Height, 13.75 tower width
Aluminum Flood Seal 125 Series Screw-on Transformer Connectors, length 5 inch, stud size 1 inch, outlets 3. Heavy PVC Coated.

FTU 1-125-3

Aluminum Flood Seal 125 Series Screw-on Transformer Connectors, length 5 inch, stud size 1 inch, outlets 3. Heavy PVC Coated.
Aluminum Flood-Seal 125 Series Transformer Spade Connectors, 1-hole outlets, length 7-7/8 inch, outlets 6

FTN 125-6

Aluminum Flood-Seal 125 Series Transformer Spade Connectors, 1-hole outlets, length 7-7/8 inch, outlets 6
Copper 175 Series Clamp-On Style Transformer and Network Protection Connectors - vertical cable leads, stud size 1/2 inch, outlets 12, Tin Plated, with Assembly Rockets, 9.50 Height, 16.75 tower width

FTT 66-175-30 CUTNAR

Copper 175 Series Clamp-On Style Transformer and Network Protection Connectors - vertical cable leads, stud size 1/2 inch, outlets 12, Tin Plated, with Assembly Rockets, 9.50 Height, 16.75 tower width
Heat Shrink Kit includes Heat Shrink Tubing - (1) 3 inches long x 2 inch Diameter tubing and (1) 3 inch long x 2.7 inch Diameter tubing, plus an instruction sheet.

FTU-HS KIT

Heat Shrink Kit includes Heat Shrink Tubing - (1) 3 inches long x 2 inch Diameter tubing and (1) 3 inch long x 2.7 inch Diameter tubing, plus an instruction sheet.
Aluminum Transformer Spade Connector Kit , 4-Hole NEMA Pad with 1.75 inch spacing, Assembled with (12) Insulating Rockets, 1 Left Hand Style and 1 Right Hand Style. 6 Tower/positions each Connector, Total of 12 Outlets. Each Section is 14.25 inch wide, Pad is .75 inch thick. Silicone Grease is Included.

FTN 175-6 PKLR AWR

Aluminum Transformer Spade Connector Kit , 4-Hole NEMA Pad with 1.75 inch spacing, Assembled with (12) Insulating Rockets, 1 Left Hand Style and 1 Right Hand Style. 6 Tower/positions each Connector, Total of 12 Outlets. Each Section is 14.25 inch wide, Pad is .75 inch thick. Silicone Grease is Included.
125 Series Screw-on Transformer Connectors, length 4-7/8 inch, stud size 1 inch, height 5-5/8 inch, outlets 2, with Insulating Rockets

FTU 1-2 NAWR

125 Series Screw-on Transformer Connectors, length 4-7/8 inch, stud size 1 inch, height 5-5/8 inch, outlets 2, with Insulating Rockets

Frequently Asked Questions

What is the spacing between the mounting holes?

The mounting holes on the ABB FTN 175-22 have a spacing of 1.75 inches.

What are the dimensions of the mounting pad?

The mounting pad for the FTN 175-22 measures 4 inches wide by 4.5 inches tall.

How many outlets does this transformer spade connector have?

The ABB FTN 175-22 features a total of 4 outlets in a double-row style configuration.

What material is the ABB FTN 175-22 connector made from?

This transformer spade connector is constructed from aluminum.

What type of coating does the FTN 175-22 have?

The ABB FTN 175-22 is finished with a gray PVC coating.
