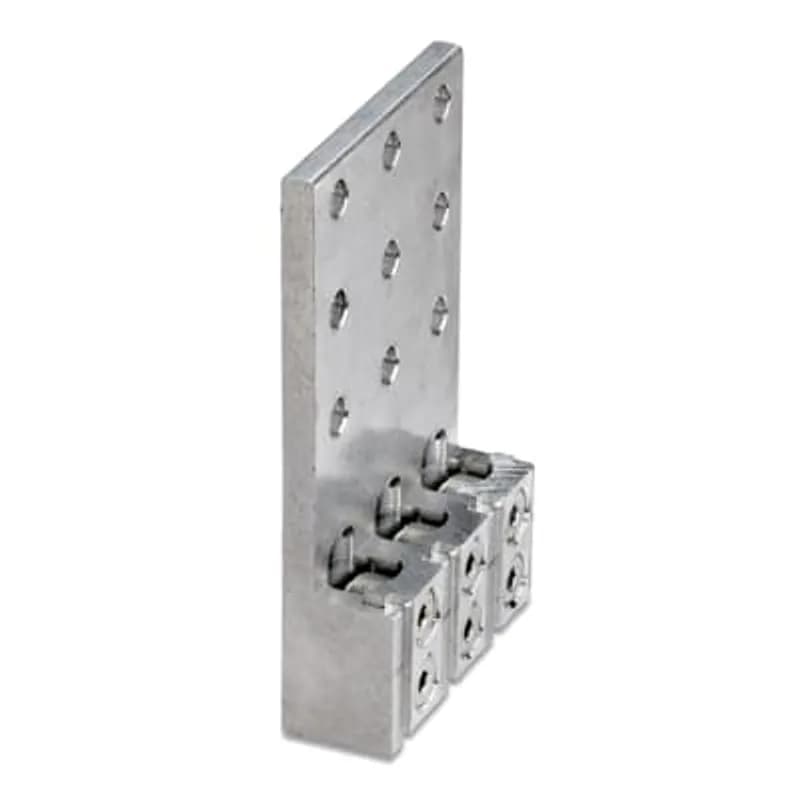

ABB - Installation Products ABK 6600 - EZ Keeper Zeebar Aluminum Transformer Connector,#6 - 600 kcmil, Aluminum-Copper, Bolt 1/2 inch. Six Conductor.

ABB Installation Products ABK 6600 EZ Keeper Zeebar Aluminum Transformer Connector,#6 - 600 kcmil, Aluminum-Copper, Bolt…

UPC: 783786684212

Documents & Media
Manufacturer Product Website

Contact for Pricing

Minimum Qty: 25

Multiplier: 25

*Contact for lower quantities*

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The ABB EZ Keeper Zeebar Aluminum Transformer Connector, SKU ABK 6600, is engineered for reliable electrical connections in transformer applications. This six-conductor connector is designed to accommodate aluminum and copper conductors ranging from #6 AWG to 600 kcmil, ensuring versatility for various wiring configurations. The robust construction features a 1/2 inch bolt, providing a secure and stable connection point for critical electrical infrastructure. Manufactured by ABB - Installation Products, this Zeebar connector is built to facilitate efficient and safe power distribution. Its compatibility with both aluminum and copper conductors simplifies inventory and installation processes for electrical contractors and maintenance professionals. The specific design of the EZ Keeper system aims to ensure proper torque and electrical continuity, crucial for the longevity and performance of transformer systems. This connector is a key component in electrical substations, industrial facilities, and other power distribution networks where reliable termination of large conductors is paramount. Its specification for six conductors allows for multi-circuit connections from a single point, streamlining panel and transformer wiring. The ABK 6600 is a practical solution for terminating conductors in transformer bushings and other similar electrical apparatus.
  • Accommodates conductor sizes from #6 AWG to 600 kcmil
  • Suitable for both aluminum and copper conductors
  • Features a 1/2 inch bolt for secure termination
  • Designed for six-conductor configurations
  • ABB - Installation Products manufacturer

Specifications

Application
Pad-Mount Tranformer Connector
Conductor Range
#6 to 600 kcmil
Connection
Mechanical
Insulation
False
Material
Aluminum
Number of Conductors
6
Size
5.25 inch long x 6.5 inch wide
Special Features
Requires only a cable stripper and Allen wrench. No Crimping tools or dies needed. Dual-rated for Aluminum and Copper. Double Set Screws maximize contact area and mechanical characterisitics. Ball-Bottom Screws ensure even force distribution in the cable/connector interface. Transformer changes require only the connector to be unbolted from the spade - no need to disconnect all the conductors, as with compression systems
Standard
RUS Accepted
Type
Lay-In Transformer Connector
Width
6.5 in
Width
165.1 mm
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
2.8800 L
Package Weight (Metric)
1.3060 kg
