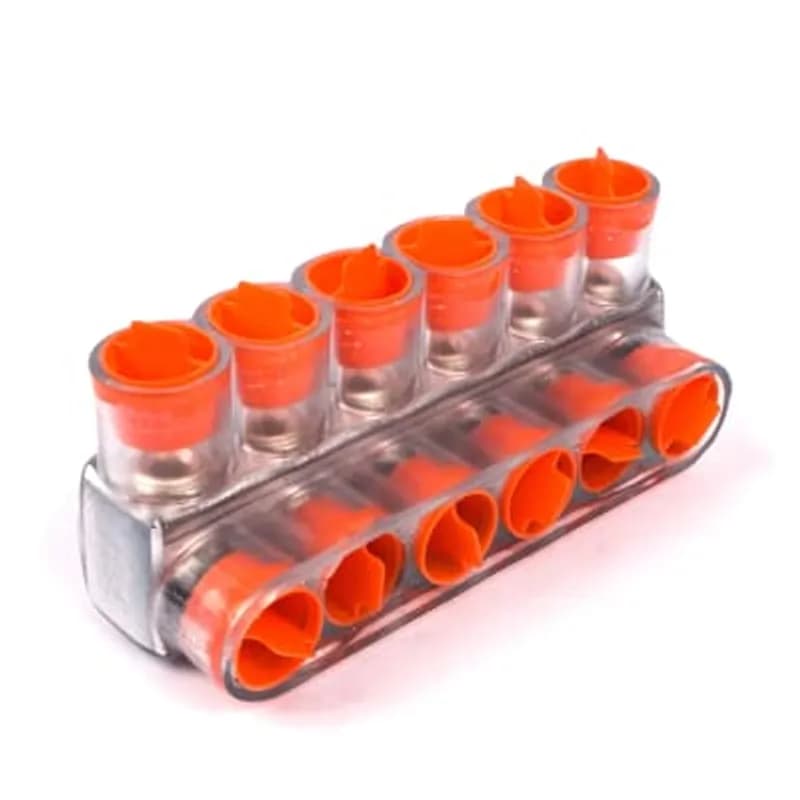

ABB - Installation Products CSB 350-6 S - Aluminum Multi-Tap Encapsulated Cable Blocks, One-Way Configuration, Wire Range 350 kcmil-10 Str, Hex Size 5/16 Inch, Length 6.30 Inches, Width 2.37 Inches, Height 2.50 Inches, Outlets 6, Clear Insulation

ABB Installation Products CSB 350-6 S Aluminum Multi-Tap Encapsulated Cable Blocks, One-Way Configuration, Wire Range 350…

UPC: 783786714865


Documents & Media
BrochureManufacturer Product Website

Contact for Pricing

Minimum Qty: 10

Multiplier: 10

*Contact for lower quantities*

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The ABB CSB 350-6 S is an encapsulated aluminum multi-tap cable block designed for secure and efficient electrical connections. This one-way configuration block accommodates a broad wire range, from 350 kcmil down to 10 Str, ensuring versatility for various conductor sizes. The robust aluminum construction provides reliable conductivity and durability for industrial applications. Each block features six distinct outlets, allowing for multiple connections from a single point. The clear insulation offers visual confirmation of wire placement and connection integrity. With a hex size of 5/16 inch, installation and maintenance are straightforward using standard tools. The dimensions of the CSB 350-6 S are 6.30 inches in length, 2.37 inches in width, and 2.50 inches in height, making it suitable for panel and enclosure installations where space is a consideration. This product, manufactured by ABB - Installation Products, is identified by SKU CSB 350-6 S and UNSPSC code 39121428. Its design prioritizes safe and organized wire management in electrical distribution systems.
  • Aluminum construction for reliable conductivity
  • Encapsulated design for enhanced safety and protection
  • Six outlets for multi-tap connections
  • Wire range: 350 kcmil - 10 Str
  • Clear insulation for visual connection verification

Specifications

Color
Clear
Material
Aluminum
Poles
6
Series
CSB
Size
Length 6.30 Inches, Width 2.37 Inches, Height 2.50 Inches
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
1.0200 L
Package Weight (Metric)
0.4630 kg
Aluminum Multi-Tap Encapsulated Splice One-Way Configuration, 2 Outlets, Wire Range 250 kcmil-6 Str, Length 4.0 Inches, Width 1.06 Inches, Height 2.0 Inches, Hex Size 5/16 Inch, Clear Insulation

CSR 250

Aluminum Multi-Tap Encapsulated Splice One-Way Configuration, 2 Outlets, Wire Range 250 kcmil-6 Str, Length 4.0 Inches, Width 1.06 Inches, Height 2.0 Inches, Hex Size 5/16 Inch, Clear Insulation
Aluminum Multi-Tap Encapsulated Cable Blocks, Two-Way Configuration, Wire Range 350 kcmil-10 Str, Hex Size 3/8 Inch, Length 5.28 Inches, Width 3.0 Inches, Height 2.50 Inches, Outlets 5, Clear Insulation

CSB 350-5

Aluminum Multi-Tap Encapsulated Cable Blocks, Two-Way Configuration, Wire Range 350 kcmil-10 Str, Hex Size 3/8 Inch, Length 5.28 Inches, Width 3.0 Inches, Height 2.50 Inches, Outlets 5, Clear Insulation
Aluminum Multi-Tap Encapsulated Cable Blocks, Two-Way Configuration, Wire Range 350 kcmil-10 Str, Hex Size 3/8 Inch, Length 6.30 Inches, Width 3.0 Inches, Height 2.50 Inches, Outlets 6, Clear Insulation

CSB 350-6

Aluminum Multi-Tap Encapsulated Cable Blocks, Two-Way Configuration, Wire Range 350 kcmil-10 Str, Hex Size 3/8 Inch, Length 6.30 Inches, Width 3.0 Inches, Height 2.50 Inches, Outlets 6, Clear Insulation
Aluminum Multi-Tap Encapsulated Cable Blocks, One-Way Configuration, Wire Range 350 kcmil-10 Str, Hex Size 5/16 Inch, Length 5.28 Inches, Width 2.37 Inches, Height 2.50 Inches, Outlets 5, Clear Insulation

CSB 350-5 S

Aluminum Multi-Tap Encapsulated Cable Blocks, One-Way Configuration, Wire Range 350 kcmil-10 Str, Hex Size 5/16 Inch, Length 5.28 Inches, Width 2.37 Inches, Height 2.50 Inches, Outlets 5, Clear Insulation
Aluminum Multi-Tap Encapsulated Cable Blocks - Two-Way Configuration, Wire Range 350-10, Screw Size 3/8 Hex, Length 7-45/64 Inches, Width 3-1/8 Inches, Height 2-1/2 Inches, Outlets 8

CSB 350-8

Aluminum Multi-Tap Encapsulated Cable Blocks - Two-Way Configuration, Wire Range 350-10, Screw Size 3/8 Hex, Length 7-45/64 Inches, Width 3-1/8 Inches, Height 2-1/2 Inches, Outlets 8
Aluminum Multi-Tap Encapsulated Cable Blocks, One-Way Configuration, Wire Range 350 kcmil-10 Str, Hex Size 5/16 Inch, Length 8.34 Inches, Width 2.37 Inches, Height 2.50 Inches, Outlets 8, Clear Insulation

CSB 350-8 S

Aluminum Multi-Tap Encapsulated Cable Blocks, One-Way Configuration, Wire Range 350 kcmil-10 Str, Hex Size 5/16 Inch, Length 8.34 Inches, Width 2.37 Inches, Height 2.50 Inches, Outlets 8, Clear Insulation
Aluminum Multi-Tap Encapsulated Cable Blocks, Two-Way Configuration, Wire Range 500 kcmil-4 Str, Hex Size 3/8 Inch, Length 3.99 Inches, Width 3.0 Inches, Height 2.75 Inches, Outlets 3, Clear Insulation

CSB 500-3

Aluminum Multi-Tap Encapsulated Cable Blocks, Two-Way Configuration, Wire Range 500 kcmil-4 Str, Hex Size 3/8 Inch, Length 3.99 Inches, Width 3.0 Inches, Height 2.75 Inches, Outlets 3, Clear Insulation
Aluminum Multi-Tap Encapsulated Cable Blocks, Two-Way Configuration, Wire Range 4-14 Str, Screw Size Slotted, Length 1.63 Inches, Width 1.50 Inches, Height 1.25 Inches, Outlets 3, Clear Insulation

CSB 4-3

Aluminum Multi-Tap Encapsulated Cable Blocks, Two-Way Configuration, Wire Range 4-14 Str, Screw Size Slotted, Length 1.63 Inches, Width 1.50 Inches, Height 1.25 Inches, Outlets 3, Clear Insulation

Frequently Asked Questions

What is the wire range for CSB 350-6 S?

The CSB 350-6 S connector is designed for a wire range of 350 kcmil to #10 stranded (Str.) conductors.

Do these connectors require tape for installation?

No, the PVC insulation enables safe and time-saving installation with no tape required.

Do the clear insulated versions meet any specific standards?

Yes, the clear PVC insulated versions meet or exceed ANSI C119.4 specifications.

What configurations are available for cable blocks?

Cable blocks are available in both one-way and two-way configurations.

What applications are suitable for these connectors?

These Blackburn insulated aluminum multi-tap connectors are ideal for both commercial and industrial applications.

What types of conductors are compatible with these connectors?

These connectors are dual-rated for use with both aluminum or copper conductors.

What type of insulation is used on these connectors?

The connectors feature PVC insulation, available in either clear or black.

What material are these multi-tap connectors made from?

These multi-tap connectors are made from insulated aluminum.

What type of screw does the CSB 350-6 S use?

The CSB 350-6 S utilizes a 5/16 Hex type screw for connections.

What are the dimensions of the CSB 350-6 S?

The CSB 350-6 S has a length of 6.30 in, a width of 2.37 in, and a height of 2.50 in.
