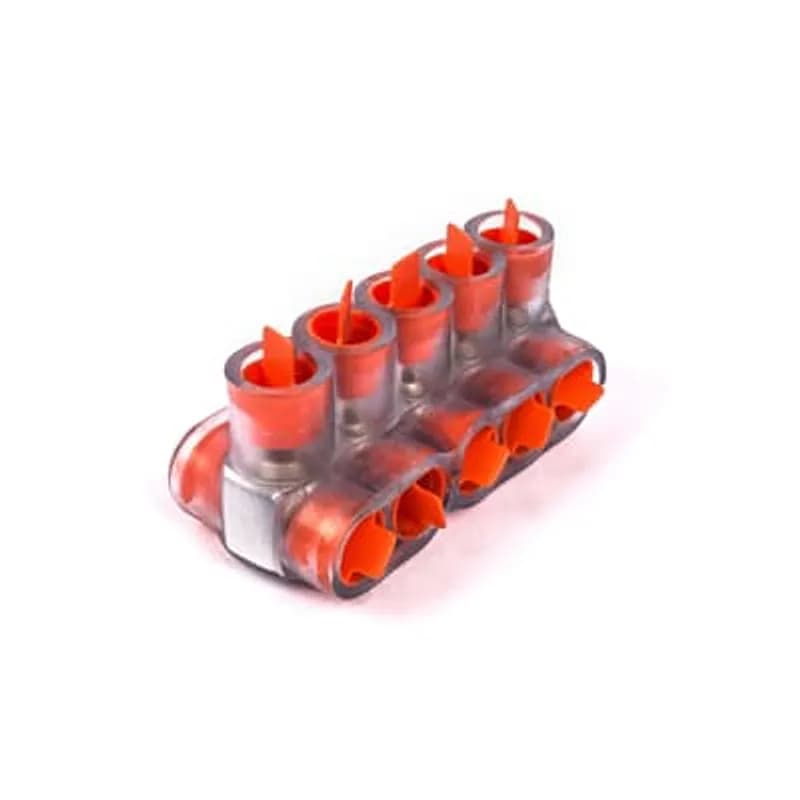

ABB Installation Products CSB 350-5 Aluminum Multi-Tap Encapsulated Cable Blocks, Two-Way Configuration, Wire Range 350…
UPC: 783786714834
Documents & Media
Contact for Pricing
Minimum Qty: 10
Multiplier: 10
*Contact for lower quantities*
Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.
Overview
- Aluminum construction for conductivity and durability
- Two-way configuration for efficient power distribution
- Accommodates wire range from 350 kcmil to 10 Str
- Five outlets for multiple tap connections
- Clear insulation for visual connection verification
Specifications
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 0.9600 L |
Package Weight (Metric) | 0.4360 kg |
IPCS7501
Insulation Piercing Connector 750 MCM - 3/0 AWG Insulation piercing connectors are made for use with copper-copper, copper to aluminum and aluminum to aluminum applications. They are safe to use and are completely insulated, no need to strip wire. They can be installed on energized conductors with no contact at any point. No spacer required between connections. Exclusive "turbo spacer" keeps tap side open while main conductor is being tightened. Watertight and corrosion-free.
54740TP
Copper C-Tap for 600V Applications, Wire Range Main: 2-1/0, Branch 2-12, Length 1-1/16 Inches, Height 31/32 Inch, Tin Plated, Die Code 50, Die Color Code Orange
CSB 350-6
Aluminum Multi-Tap Encapsulated Cable Blocks, Two-Way Configuration, Wire Range 350 kcmil-10 Str, Hex Size 3/8 Inch, Length 6.30 Inches, Width 3.0 Inches, Height 2.50 Inches, Outlets 6, Clear Insulation
CSB 350-5 S
Aluminum Multi-Tap Encapsulated Cable Blocks, One-Way Configuration, Wire Range 350 kcmil-10 Str, Hex Size 5/16 Inch, Length 5.28 Inches, Width 2.37 Inches, Height 2.50 Inches, Outlets 5, Clear Insulation
CSB 350-8
Aluminum Multi-Tap Encapsulated Cable Blocks - Two-Way Configuration, Wire Range 350-10, Screw Size 3/8 Hex, Length 7-45/64 Inches, Width 3-1/8 Inches, Height 2-1/2 Inches, Outlets 8CSB 350-8 S
Aluminum Multi-Tap Encapsulated Cable Blocks, One-Way Configuration, Wire Range 350 kcmil-10 Str, Hex Size 5/16 Inch, Length 8.34 Inches, Width 2.37 Inches, Height 2.50 Inches, Outlets 8, Clear Insulation
CSB 500-3
Aluminum Multi-Tap Encapsulated Cable Blocks, Two-Way Configuration, Wire Range 500 kcmil-4 Str, Hex Size 3/8 Inch, Length 3.99 Inches, Width 3.0 Inches, Height 2.75 Inches, Outlets 3, Clear Insulation
CSB 4-3
Aluminum Multi-Tap Encapsulated Cable Blocks, Two-Way Configuration, Wire Range 4-14 Str, Screw Size Slotted, Length 1.63 Inches, Width 1.50 Inches, Height 1.25 Inches, Outlets 3, Clear InsulationFrequently Asked Questions
Are black UV-resistant insulated versions UL listed?
Yes, the black UV-resistant PVC insulated versions are UL® listed.
Do clear insulated versions meet specific standards?
The clear PVC insulated versions meet or exceed ANSI C119.4 specifications.
Are these connectors compatible with aluminum and copper conductors?
Yes, these connectors are dual-rated for use with both aluminum or copper conductors.
What screw type does the two-way CSB 350-5 use?
The CSB 350-5 (two-way) uses a 3/8 Hex screw type.
What screw type does the CSB 350-5 S use?
The CSB 350-5 S (one-way) uses a 5/16 Hex screw type.
What are the dimensions of the two-way CSB 350-5?
The CSB 350-5 (two-way) has dimensions of 5.28 inches length, 3.00 inches width, and 2.50 inches height.
What are the dimensions of the CSB 350-5 S?
The CSB 350-5 S (one-way) has dimensions of 5.28 inches length, 2.37 inches width, and 2.50 inches height.
What is the wire range for CSB 350-5?
The CSB 350-5 (both one-way and two-way configurations) supports a wire range of 350 kcmil–#10 Stranded.
What screw type does the CSB 350-5 S use?
The CSB 350-5 S (one-way) uses a 5/16 Hex screw type.
Are these connectors compatible with aluminum and copper conductors?
Yes, these connectors are dual-rated for use with both aluminum or copper conductors.
