Contact for Pricing
Minimum Qty: 10
Multiplier: 10
*Contact for lower quantities*

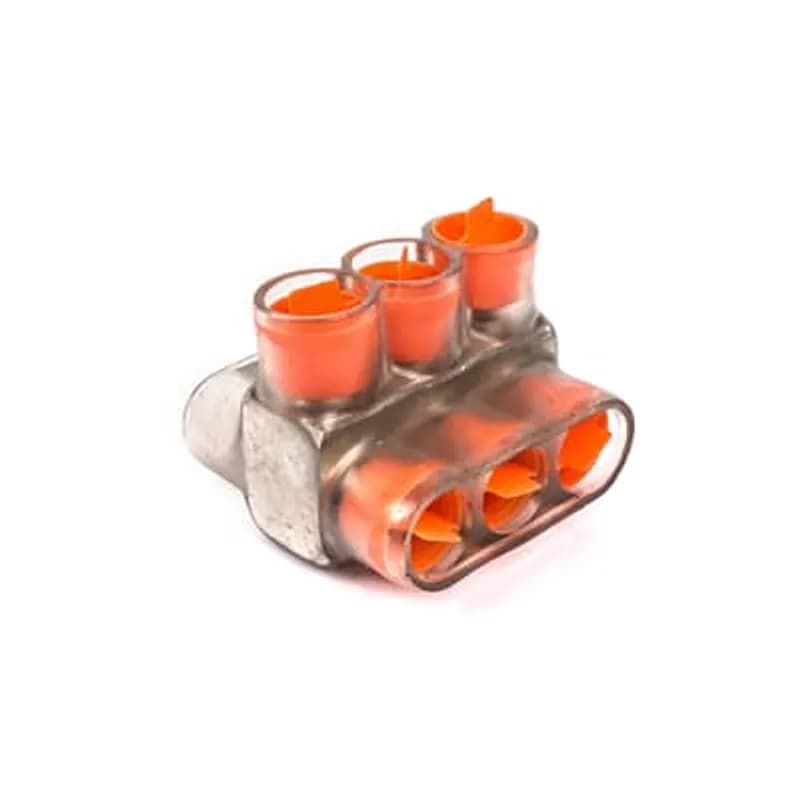

Overview
- Aluminum construction for conductivity and durability
- Clear encapsulation for visual connection verification
- Three outlets for multi-wire terminations
- Accommodates wire range from 500 kcmil to 4 Str
- Two-way configuration for efficient wiring management
Specifications
Color | Clear |
Material | Aluminum |
Poles | 3 |
Series | CSB |
Size | Length 3.99 Inches, Width 3.0 Inches, Height 2.75 Inches |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 0.7700 L |
Package Weight (Metric) | 0.3490 kg |
IPCS7501
Insulation Piercing Connector 750 MCM - 3/0 AWG Insulation piercing connectors are made for use with copper-copper, copper to aluminum and aluminum to aluminum applications. They are safe to use and are completely insulated, no need to strip wire. They can be installed on energized conductors with no contact at any point. No spacer required between connections. Exclusive "turbo spacer" keeps tap side open while main conductor is being tightened. Watertight and corrosion-free.
54740TP
Copper C-Tap for 600V Applications, Wire Range Main: 2-1/0, Branch 2-12, Length 1-1/16 Inches, Height 31/32 Inch, Tin Plated, Die Code 50, Die Color Code OrangeFrequently Asked Questions
What is the wire range for the ABB CSB 500-3 cable block?
The ABB CSB 500-3 cable block is designed to accommodate a wire range from 500 kcmil to 4 Str.
How many outlets does the CSB 500-3 cable block have?
The CSB 500-3 cable block features three outlets for multiple wire connections.
What is the hex size for tightening the CSB 500-3 cable block?
The hex size required for tightening the CSB 500-3 cable block is 3/8 Inch.
What are the dimensions of the ABB CSB 500-3 cable block?
The ABB CSB 500-3 cable block has a length of 3.99 inches, a width of 3.0 inches, and a height of 2.75 inches.
What type of insulation does the CSB 500-3 cable block use?
The CSB 500-3 cable block features clear insulation, allowing for visual inspection of connections.
