ABB - Installation Products CLRTR 6 SL - Aluminum Insulated Transformer Connector, #12 - 350kcmil, Aluminum and Copper, Stud sizse 5/8 inch, Six Conductors

ABB Installation Products CLRTR 6 SL Aluminum Insulated Transformer Connector, #12 - 350kcmil, Aluminum and Copper, Stud…

UPC: 783786028481

Documents & Media
Manufacturer Product Website

Contact for Pricing

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

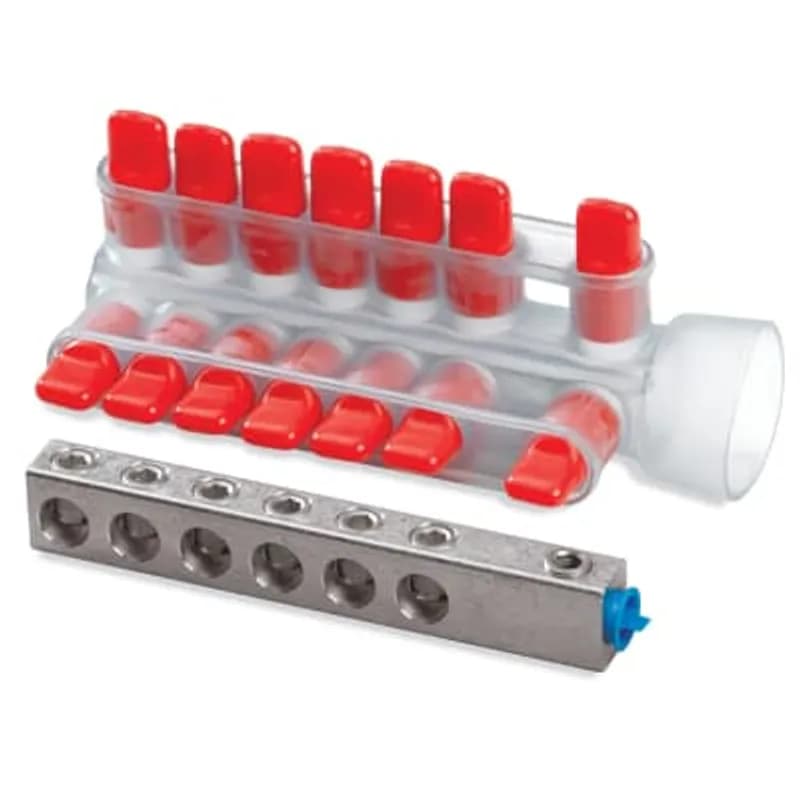

The ABB CLRTR 6 SL is a robust aluminum insulated transformer connector designed for reliable electrical connections in demanding applications. Manufactured by ABB - Installation Products, this connector is engineered to accommodate a wide range of conductor sizes, from #12 AWG up to 350 kcmil, ensuring versatility for various electrical system requirements. Its construction utilizes a combination of aluminum and copper materials, providing excellent conductivity and corrosion resistance, crucial for long-term performance in transformer and distribution systems. This specific model, SKU CLRTR 6 SL, features a 5/8 inch stud size, facilitating secure mounting and connection to transformer terminals. With the capacity to connect six conductors, it simplifies complex wiring configurations and reduces the number of individual connection points, thereby enhancing system reliability and reducing installation time. The CLRTR series connectors are built to ensure safe and efficient power transmission, making them an essential component for utility, industrial, and commercial power infrastructure. Key Specifications: * **Manufacturer:** ABB - Installation Products * **SKU:** CLRTR 6 SL * **Series:** CLRTR * **Conductor Size Range:** #12 AWG - 350 kcmil * **Conductor Material Compatibility:** Aluminum and Copper * **Number of Conductors:** 6 * **Stud Size:** 5/8 inch This connector is ideal for use in transformer terminations, switchgear, and other power distribution equipment where secure, insulated connections are paramount. Its insulated design provides an additional layer of safety, preventing accidental contact and short circuits. The durable construction ensures it can withstand the environmental conditions typically found in electrical substations and industrial facilities.
  • Accommodates conductor sizes from #12 AWG to 350 kcmil.
  • Compatible with both aluminum and copper conductors.
  • Designed for six conductor connections.
  • Features a 5/8 inch stud size for secure mounting.
  • Constructed with aluminum and copper for optimal conductivity and durability.

Specifications

Application
Transformer Connection
Conductor Range
#12 to 350 kcmil
Connection
Mechanical
Height
1.25 in
Height
31.75 mm
Insulation
PVC Cover
Material
Aluminum connector, Clear PVC Cover
Number of Conductors
6
Size
8.718 inches long x .875 inch wide x 1.250 inch high
Special Features
Clear PVC Covers enables safe and time saving installations and disconnects - and provides insulation. Versatile design enables right and left hand installation. Dual rated to accept Aluminum or Copper Conductors
Standard
RUS Accepted
Type
Stud-Mount Transformer Connector
Width
.875 in
Width
22.225 mm
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
1.5800 L
Package Weight (Metric)
0.7170 kg
