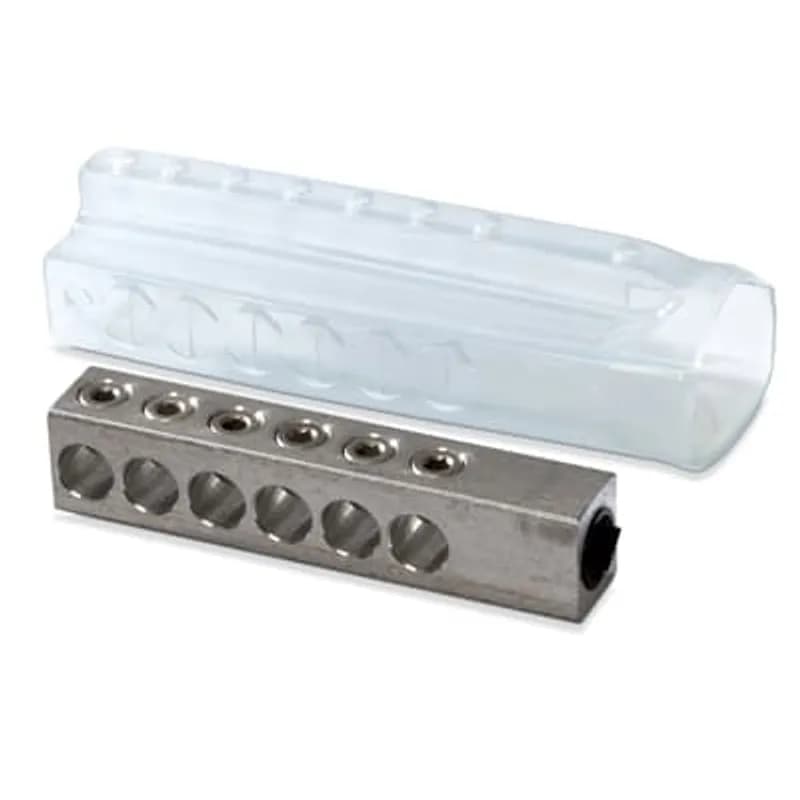

ABB - Installation Products CSS 8500-58 - Aluminum Transformer Connector-CSS Series, screw-on style, cable range 2-500, stud size 5/8 inch, insulator length 5-3/16 inch, outlets 8
ABB - Installation Products

CSS 8500-58

UPC: 783786270446

Documents & Media
Manufacturer Product Website

Contact for Pricing

Minimum Qty: 15

Multiplier: 15

*Contact for lower quantities*

Overview

The ABB CSS 8500-58 is a screw-on style aluminum transformer connector from ABB Installation Products. Designed for reliable electrical connections, this connector accommodates a cable range of 2 to 500 kcmil, ensuring versatility for various conductor sizes. It features a 5/8 inch stud size, providing a secure mounting point for transformer connections. The insulator length measures 5-3/16 inches, contributing to safe and effective electrical isolation. With 8 outlets, this connector facilitates multiple cable terminations, making it suitable for complex electrical distribution systems. The CSS Series connectors are engineered for efficient and durable performance in electrical infrastructure. This specific model, SKU CSS 8500-58, is a key component for transformer installations requiring robust aluminum connectivity. Its construction and design focus on facilitating secure and lasting electrical joints in power distribution applications. The UNSPSC code for this product is 39121443, categorizing it within electrical connectors and fittings.
  • ABB CSS Series screw-on aluminum transformer connector
  • Cable range: 2-500 kcmil
  • Stud size: 5/8 inch
  • Insulator length: 5-3/16 inches
  • Number of outlets: 8

Specifications

Application
Screw-on Transformer Connector
Conductor Range
#2 to 500 kcmil
Connection
Mechanical
Connection Type
Screw-On
Insulation
PVC Cover
Material
Aluminum
Number of Conductors
8
Poles
8
Series
CSS
Size
5-3/16 inch
Size
Cable range 2-500, stud size 5/8 inch, insulator length 5-3/16 inch
Special Features
Clear PVC Insulating Boot. Disconnectable - easy to install and remove. Dual-rated to accept Aluminum and Copper Conductors
Standard
ANSI C119.4
Type
Quick-Disconnect Transformer Connector
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
2.2500 L
Package Weight (Metric)
1.0210 kg
