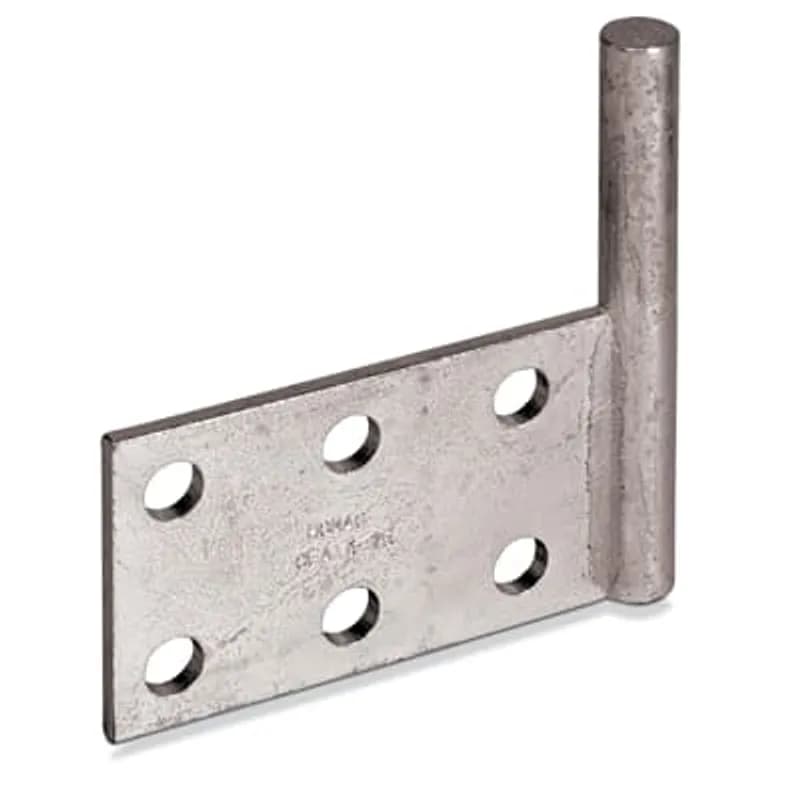

ABB - Installation Products CEA 6-100-4 - Tin-Plated Copper Eyebolt Adapter, Pin Diameter 1 inch, Bolt 1/2 inch, Six hole NEMA Pad.

ABB Installation Products CEA 6-100-4 Tin-Plated Copper Eyebolt Adapter, Pin Diameter 1 inch, Bolt 1/2 inch, Six hole NEMA Pad.

UPC: 783786332328


Documents & Media
Manufacturer Product Website

Contact for Pricing

Minimum Qty: 40

Multiplier: 40

*Contact for lower quantities*

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The ABB CEA 6-100-4 is a tin-plated copper eyebolt adapter designed for secure mechanical connections in industrial and electrical installations. This adapter features a 1-inch diameter pin and a 1/2-inch bolt, compatible with standard mounting configurations. The six-hole NEMA pad ensures versatile attachment to enclosures, panels, or structural supports, providing a stable mounting point for cables, conduits, or grounding systems. Constructed from copper with a tin plating, this adapter offers corrosion resistance and electrical conductivity, making it suitable for both mechanical and electrical applications. The NEMA pad design aligns with industry-standard mounting patterns, ensuring compatibility with a wide range of enclosures and panels. Typical applications include electrical panels, control cabinets, and industrial machinery where reliable grounding or cable management is required. The CEA 6-100-4 is part of ABB's Installation Products line, known for durable and reliable components in electrical and industrial systems. This adapter is ideal for use in manufacturing, construction, and utility environments where secure, conductive connections are essential.
  • Tin-plated copper construction for corrosion resistance and conductivity
  • 1-inch pin diameter and 1/2-inch bolt for standard mounting compatibility
  • Six-hole NEMA pad for versatile attachment to enclosures and panels
  • Designed for grounding, cable management, and structural support applications
  • Part of ABB's Installation Products line for reliable industrial use

Specifications

Finish
Tin Plated
Insulation
False
Material
Copper
Size
7 inch long
Special Features
Dual Rated, 6-Holes, 1 inch Pin
Type
Transformer Eyebolt Adapter
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
3.2500 L
Package Weight (Metric)
1.4740 kg
