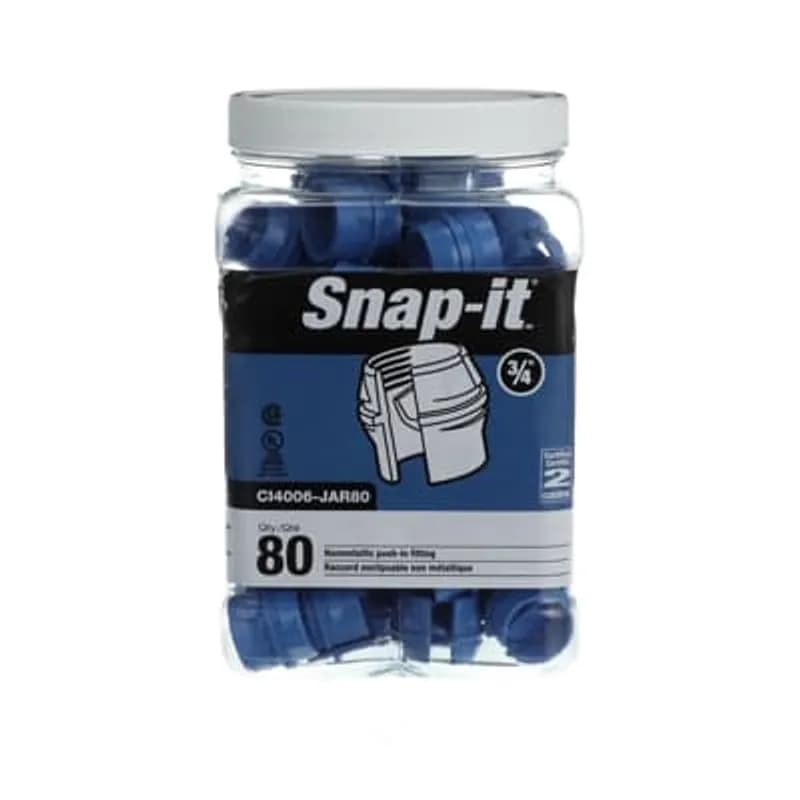

ABB - Installation Products CI4006-JAR80 - Connector, Non-Metallic Sheathed Cable, Size 3/4 Inch, Total Length 15/16 Inch, Width 7/8 Inch, Clamping Range Minimum 0.22 Inch to Maximum 0.65 Inch, Non-Metallic, Suggested Application 12/2-10/2-8/2-6/2, 14/3-12/3-10/3-8/3-6/3, 2 cables: 2 x 12/2 - 2 x 10/2, 1 x 12/2 + 1 x 10/2, Pack of 80
More images

ABB Installation Products CI4006-JAR80 Connector, Non-Metallic Sheathed Cable, Size 3/4 Inch, Total Length 15/16 Inch, Width…

UPC: 622538130853


Documents & Media
Manufacturer Product Website

Contact for Pricing

Minimum Qty: 80

Multiplier: 80

*Contact for lower quantities*

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The ABB CI4006-JAR80 is a non-metallic cable connector designed for secure and reliable termination of non-metallic sheathed cables in industrial and commercial electrical installations. This clamp-type connector accommodates a clamping range from 0.22" to 0.65", making it suitable for a variety of common cable sizes including 12/2, 10/2, 8/2, 6/2, 14/3, 12/3, 10/3, and 8/3. The connector supports configurations such as two 12/2 cables, two 10/2 cables, or combinations like one 12/2 and one 10/2 cable. With a compact size of 3/4" and a total length of 15/16", the CI4006-JAR80 is ideal for space-constrained applications where a clean, organized cable termination is required. The non-metallic construction ensures electrical insulation and resistance to corrosion, making it a durable choice for both indoor and outdoor environments. Each pack contains 80 connectors, providing a cost-effective solution for large-scale projects or bulk installations. Compatible with standard junction boxes and enclosures, this connector simplifies cable management while maintaining compliance with electrical codes and safety standards. The clamp-style connection ensures a tight, vibration-resistant grip on cables, reducing the risk of loose terminations and potential electrical faults. Whether used in residential wiring, commercial buildings, or light industrial settings, the ABB CI4006-JAR80 delivers consistent performance and reliability.
  • Non-metallic construction for electrical insulation and corrosion resistance
  • Clamp-type connection for secure and vibration-resistant cable termination
  • Clamping range: 0.22" to 0.65" for compatibility with 12/2-6/2 and 14/3-6/3 cables
  • Compact size: 3/4" with total length of 15/16" for space-constrained applications
  • Pack of 80 connectors for bulk installations or large-scale projects

Specifications

Color
Blue
Housing Material
Plastic
Size
3/4 Inch
Wire Size
12/2 to 6/2, 14/3 to 6/3
Package Dimensions (L x W x H)
4.75 IN x 4.5 IN x 7.25 IN
Package Dimensions (L x W x H)
12.065 cm x 11.43 cm x 18.415 cm
Package Weight (Imperial)
0.0200 L
Package Weight (Metric)
0.0090 kg
Connector, Non-Metallic Sheathed Cable, Size 3/4 Inch, Total Length 15/16 Inch, Width 7/8 Inch, Clamping Range Minimum 0.22 Inch to Maximum 0.65 Inch, Non-Metallic, Suggested Application 12/2-10/2-8/2-6/2, 14/3-12/3-10/3-8/3-6/3, 2 cables: 2 x 12/2 - 2 x 10/2, 1 x 12/2 + 1 x 10/2, Pack of 40

CI4006-JAR40

Connector, Non-Metallic Sheathed Cable, Size 3/4 Inch, Total Length 15/16 Inch, Width 7/8 Inch, Clamping Range Minimum 0.22 Inch to Maximum 0.65 Inch, Non-Metallic, Suggested Application 12/2-10/2-8/2-6/2, 14/3-12/3-10/3-8/3-6/3, 2 cables: 2 x 12/2 - 2 x 10/2, 1 x 12/2 + 1 x 10/2, Pack of 40
The Easy-Twist WWC-B-C 100-Count Bag of Blue Winged Wire Connectors are designed for use on copper wires in the 14-6 AWG size range. They’re made of flame-retardant thermoplastic rated for a maximum temperature of 105Ëš Celsius (221Ëš Fahrenheit). The quick-grip square spring design grips in fewer twists and can dead-end a single wire, while the ergonomic swept-back wing design and ribbed texture makes them easy to twist. Their compact design is useful for applications in tight areas or anywhere else you need to connect wires.Â

WWC-B-C

The Easy-Twist WWC-B-C 100-Count Bag of Blue Winged Wire Connectors are designed for use on copper wires in the 14-6 AWG size range. They’re made of flame-retardant thermoplastic rated for a maximum temperature of 105Ëš Celsius (221Ëš Fahrenheit). The quick-grip square spring design grips in fewer twists and can dead-end a single wire, while the ergonomic swept-back wing design and ribbed texture makes them easy to twist. Their compact design is useful for applications in tight areas or anywhere else you need to connect wires.Â
StrongHold EV14-8FB-Q Contractor Grade Insulated Fork Terminals are a reliable and economical option that withstand a wide range of general-purpose applications. The fork design provides for fast and easy installation, without the need to remove fastener. Accommodates 16-14 AWG, compatible with #8 Stud (M4), are blue in color, and come in packages of 25.

EV14-8FB-Q

StrongHold EV14-8FB-Q Contractor Grade Insulated Fork Terminals are a reliable and economical option that withstand a wide range of general-purpose applications. The fork design provides for fast and easy installation, without the need to remove fastener. Accommodates 16-14 AWG, compatible with #8 Stud (M4), are blue in color, and come in packages of 25.
Rectangular Power Connectors, Housing, Plug, Wire-to-Board / Wire-to-Panel / Wire-to-Wire, 6 Position, 4.2 mm [.165 in] Centerline, AMP MR

1-640520-0

Rectangular Power Connectors, Housing, Plug, Wire-to-Board / Wire-to-Panel / Wire-to-Wire, 6 Position, 4.2 mm [.165 in] Centerline, AMP MR
Connector, Non-Metallic Sheathed Cable, Size 3/4 Inch, Total Length 15/16 Inch, Width 7/8 Inch, Clamping Range Minimum 0.22 Inch to Maximum 0.65 Inch, Non-Metallic, Suggested Application 12/2-10/2-8/2-6/2, 14/3-12/3-10/3-8/3-6/3, 2 cables: 2 x 12/2 - 2 x 10/2, 1 x 12/2 + 1 x 10/2, Pack of 200

CI4006-JAR200

Connector, Non-Metallic Sheathed Cable, Size 3/4 Inch, Total Length 15/16 Inch, Width 7/8 Inch, Clamping Range Minimum 0.22 Inch to Maximum 0.65 Inch, Non-Metallic, Suggested Application 12/2-10/2-8/2-6/2, 14/3-12/3-10/3-8/3-6/3, 2 cables: 2 x 12/2 - 2 x 10/2, 1 x 12/2 + 1 x 10/2, Pack of 200
Aluminum Splice, Length 4.000 inch, Barrel Inside Diameters .594 and .340 inch, Both Barrel depths 1.880 inch. Outside Diameter .906 inch.

PU 9W109859309 PS401

Aluminum Splice, Length 4.000 inch, Barrel Inside Diameters .594 and .340 inch, Both Barrel depths 1.880 inch. Outside Diameter .906 inch.
Aluminum Splice, Length 6.000 inch, Both Barrel Inside Diameters .421 inch, Both Barrel depths 2.921 inch. Outside Diameter .640 inch.

PU 9W109859204 PNK00

Aluminum Splice, Length 6.000 inch, Both Barrel Inside Diameters .421 inch, Both Barrel depths 2.921 inch. Outside Diameter .640 inch.
Tin Plated Aluminum Pin Terminal. Pin .364 Diameter, 10 inch length, with (2) 90 Degrees bends. Side Lengths 4.937, 3.250 and 3.00 inches. Body 2.625 Length x .906 inch Diameter, Bores .347 Diameter x 1.062 inch long for the Tap 3/8-16 UNC-2B Threaded Stud, and .420 Diameter x 1.0 inch long. Red Caps.

PT 6487 OF

Tin Plated Aluminum Pin Terminal. Pin .364 Diameter, 10 inch length, with (2) 90 Degrees bends. Side Lengths 4.937, 3.250 and 3.00 inches. Body 2.625 Length x .906 inch Diameter, Bores .347 Diameter x 1.062 inch long for the Tap 3/8-16 UNC-2B Threaded Stud, and .420 Diameter x 1.0 inch long. Red Caps.

Frequently Asked Questions

How many connectors are included in a single pack?

Each pack contains 80 connectors.

What is the clamping range of the CI4006-JAR80?

The clamping range is from 0.22 inches to 0.65 inches.

What is the total length of the CI4006-JAR80 connector?

The total length of the connector is 15/16 inches.

What cable sizes are compatible with the CI4006-JAR80?

The connector supports 12/2, 10/2, 8/2, 6/2, 14/3, 12/3, 10/3, and 8/3 cables, with a clamping range of 0.22" to 0.65".

Is the CI4006-JAR80 suitable for outdoor use?

Yes, the non-metallic construction provides electrical insulation and resistance to corrosion, making it suitable for outdoor environments.

Can the CI4006-JAR80 be used with multiple cables?

Yes, it supports configurations such as two 12/2 cables, two 10/2 cables, or combinations like one 12/2 and one 10/2 cable.
