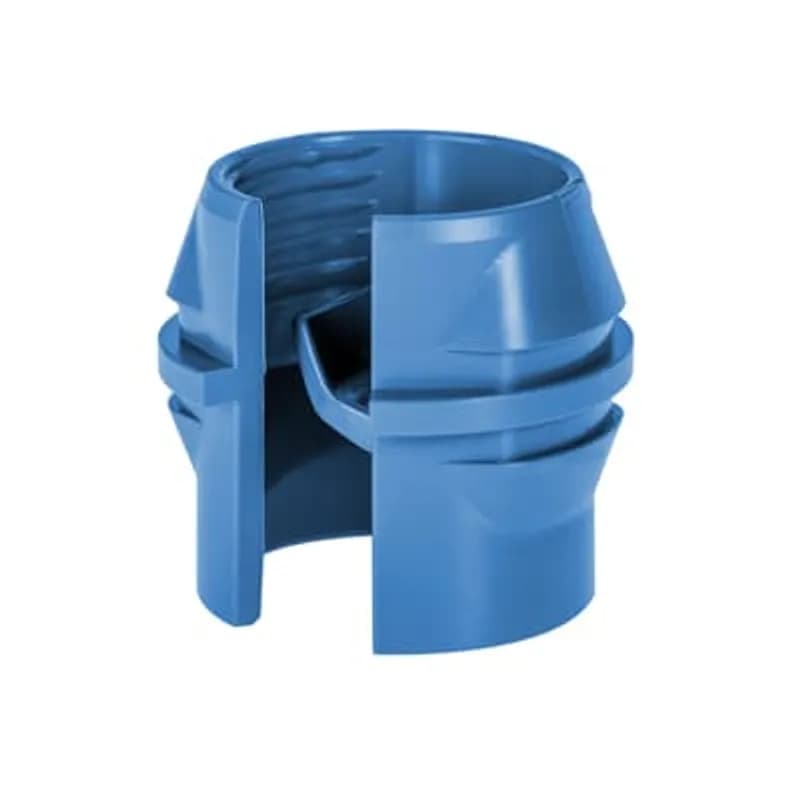

ABB - Installation Products CI4006-JAR40 - Connector, Non-Metallic Sheathed Cable, Size 3/4 Inch, Total Length 15/16 Inch, Width 7/8 Inch, Clamping Range Minimum 0.22 Inch to Maximum 0.65 Inch, Non-Metallic, Suggested Application 12/2-10/2-8/2-6/2, 14/3-12/3-10/3-8/3-6/3, 2 cables: 2 x 12/2 - 2 x 10/2, 1 x 12/2 + 1 x 10/2, Pack of 40
More images

ABB Installation Products CI4006-JAR40 Connector, Non-Metallic Sheathed Cable, Size 3/4 Inch, Total Length 15/16 Inch, Width…

UPC: 622538130884


Documents & Media
Manufacturer Product Website

Contact for Pricing

Minimum Qty: 40

Multiplier: 40

*Contact for lower quantities*

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The ABB CI4006-JAR40 is a non-metallic sheathed cable connector designed for secure and reliable cable management. Manufactured by ABB Installation Products, this connector is specifically engineered for non-metallic sheathed cables, offering a robust solution for various electrical installations. The unit features a 3/4 inch trade size and a total length of 15/16 inch with a width of 7/8 inch, ensuring a compact yet effective connection. Its clamping range accommodates cable diameters from a minimum of 0.22 inches to a maximum of 0.65 inches, providing flexibility for different cable gauges. This connector is ideally suited for applications involving 12/2, 10/2, 8/2, and 6/2 non-metallic sheathed cables, as well as 14/3, 12/3, 10/3, 8/3, and 6/3 cables. It also supports configurations with two cables, such as two 12/2 cables, two 10/2 cables, or a combination of one 12/2 and one 10/2 cable. Each pack contains 40 connectors, making it an economical choice for projects requiring multiple connections. The non-metallic construction offers advantages in environments where metallic components might be undesirable. The UNSPSC code for this product is 39121409. Ensure proper application within the specified clamping range for optimal performance and safety. This connector is a practical component for electricians and contractors seeking dependable cable termination solutions.
  • Non-metallic sheathed cable connector for secure terminations.
  • 3/4 Inch trade size with a 15/16 Inch total length.
  • Clamping range: 0.22 Inch (min) to 0.65 Inch (max).
  • Supports multiple cable sizes including 12/2, 10/2, 8/2, 6/2, 14/3, 12/3, 10/3, 8/3, 6/3.
  • Pack of 40 connectors for project efficiency.

Specifications

Color
Blue
Housing Material
Plastic
Material
Non-Metallic
Size
3/4 Inch
Wire Size
12/2 to 6/2, 14/3 to 6/3
Package Dimensions (L x W x H)
3.75 IN x 3.75 IN x 5.75 IN
Package Dimensions (L x W x H)
9.525 cm x 9.525 cm x 14.605 cm
Package Weight (Imperial)
0.0100 L
Package Weight (Metric)
0.0050 kg
Connector, Non-Metallic Sheathed Cable, Size 3/4 Inch, Total Length 15/16 Inch, Width 7/8 Inch, Clamping Range Minimum 0.22 Inch to Maximum 0.65 Inch, Non-Metallic, Suggested Application 12/2-10/2-8/2-6/2, 14/3-12/3-10/3-8/3-6/3, 2 cables: 2 x 12/2 - 2 x 10/2, 1 x 12/2 + 1 x 10/2, Pack of 80

CI4006-JAR80

Connector, Non-Metallic Sheathed Cable, Size 3/4 Inch, Total Length 15/16 Inch, Width 7/8 Inch, Clamping Range Minimum 0.22 Inch to Maximum 0.65 Inch, Non-Metallic, Suggested Application 12/2-10/2-8/2-6/2, 14/3-12/3-10/3-8/3-6/3, 2 cables: 2 x 12/2 - 2 x 10/2, 1 x 12/2 + 1 x 10/2, Pack of 80
The Easy-Twist WWC-B-C 100-Count Bag of Blue Winged Wire Connectors are designed for use on copper wires in the 14-6 AWG size range. They’re made of flame-retardant thermoplastic rated for a maximum temperature of 105Ëš Celsius (221Ëš Fahrenheit). The quick-grip square spring design grips in fewer twists and can dead-end a single wire, while the ergonomic swept-back wing design and ribbed texture makes them easy to twist. Their compact design is useful for applications in tight areas or anywhere else you need to connect wires.Â

WWC-B-C

The Easy-Twist WWC-B-C 100-Count Bag of Blue Winged Wire Connectors are designed for use on copper wires in the 14-6 AWG size range. They’re made of flame-retardant thermoplastic rated for a maximum temperature of 105Ëš Celsius (221Ëš Fahrenheit). The quick-grip square spring design grips in fewer twists and can dead-end a single wire, while the ergonomic swept-back wing design and ribbed texture makes them easy to twist. Their compact design is useful for applications in tight areas or anywhere else you need to connect wires.Â
StrongHold EV14-8FB-Q Contractor Grade Insulated Fork Terminals are a reliable and economical option that withstand a wide range of general-purpose applications. The fork design provides for fast and easy installation, without the need to remove fastener. Accommodates 16-14 AWG, compatible with #8 Stud (M4), are blue in color, and come in packages of 25.

EV14-8FB-Q

StrongHold EV14-8FB-Q Contractor Grade Insulated Fork Terminals are a reliable and economical option that withstand a wide range of general-purpose applications. The fork design provides for fast and easy installation, without the need to remove fastener. Accommodates 16-14 AWG, compatible with #8 Stud (M4), are blue in color, and come in packages of 25.
Rectangular Power Connectors, Housing, Plug, Wire-to-Board / Wire-to-Panel / Wire-to-Wire, 6 Position, 4.2 mm [.165 in] Centerline, AMP MR

1-640520-0

Rectangular Power Connectors, Housing, Plug, Wire-to-Board / Wire-to-Panel / Wire-to-Wire, 6 Position, 4.2 mm [.165 in] Centerline, AMP MR
Connector, Non-Metallic Sheathed Cable, Size 3/4 Inch, Total Length 15/16 Inch, Width 7/8 Inch, Clamping Range Minimum 0.22 Inch to Maximum 0.65 Inch, Non-Metallic, Suggested Application 12/2-10/2-8/2-6/2, 14/3-12/3-10/3-8/3-6/3, 2 cables: 2 x 12/2 - 2 x 10/2, 1 x 12/2 + 1 x 10/2, Pack of 200

CI4006-JAR200

Connector, Non-Metallic Sheathed Cable, Size 3/4 Inch, Total Length 15/16 Inch, Width 7/8 Inch, Clamping Range Minimum 0.22 Inch to Maximum 0.65 Inch, Non-Metallic, Suggested Application 12/2-10/2-8/2-6/2, 14/3-12/3-10/3-8/3-6/3, 2 cables: 2 x 12/2 - 2 x 10/2, 1 x 12/2 + 1 x 10/2, Pack of 200
Aluminum Splice, Length 4.000 inch, Barrel Inside Diameters .594 and .340 inch, Both Barrel depths 1.880 inch. Outside Diameter .906 inch.

PU 9W109859309 PS401

Aluminum Splice, Length 4.000 inch, Barrel Inside Diameters .594 and .340 inch, Both Barrel depths 1.880 inch. Outside Diameter .906 inch.
Aluminum Splice, Length 6.000 inch, Both Barrel Inside Diameters .421 inch, Both Barrel depths 2.921 inch. Outside Diameter .640 inch.

PU 9W109859204 PNK00

Aluminum Splice, Length 6.000 inch, Both Barrel Inside Diameters .421 inch, Both Barrel depths 2.921 inch. Outside Diameter .640 inch.
Tin Plated Aluminum Pin Terminal. Pin .364 Diameter, 10 inch length, with (2) 90 Degrees bends. Side Lengths 4.937, 3.250 and 3.00 inches. Body 2.625 Length x .906 inch Diameter, Bores .347 Diameter x 1.062 inch long for the Tap 3/8-16 UNC-2B Threaded Stud, and .420 Diameter x 1.0 inch long. Red Caps.

PT 6487 OF

Tin Plated Aluminum Pin Terminal. Pin .364 Diameter, 10 inch length, with (2) 90 Degrees bends. Side Lengths 4.937, 3.250 and 3.00 inches. Body 2.625 Length x .906 inch Diameter, Bores .347 Diameter x 1.062 inch long for the Tap 3/8-16 UNC-2B Threaded Stud, and .420 Diameter x 1.0 inch long. Red Caps.

Frequently Asked Questions

What is the clamping range for this ABB cable connector?

The ABB CI4006-JAR40 connector has a clamping range from a minimum of 0.22 inches to a maximum of 0.65 inches.

What cable sizes are compatible with the CI4006-JAR40?

This connector is suggested for 12/2, 10/2, 8/2, 6/2, 14/3, 12/3, 10/3, 8/3, and 6/3 non-metallic sheathed cables.

Can this connector be used for multiple cables?

Yes, the CI4006-JAR40 can accommodate two cables, such as two 12/2 cables, two 10/2 cables, or one 12/2 and one 10/2 cable.

What is the trade size of the ABB CI4006-JAR40 connector?

The ABB CI4006-JAR40 connector has a trade size of 3/4 Inch.

How many connectors are included in a pack?

Each pack of the ABB CI4006-JAR40 contains 40 connectors.
