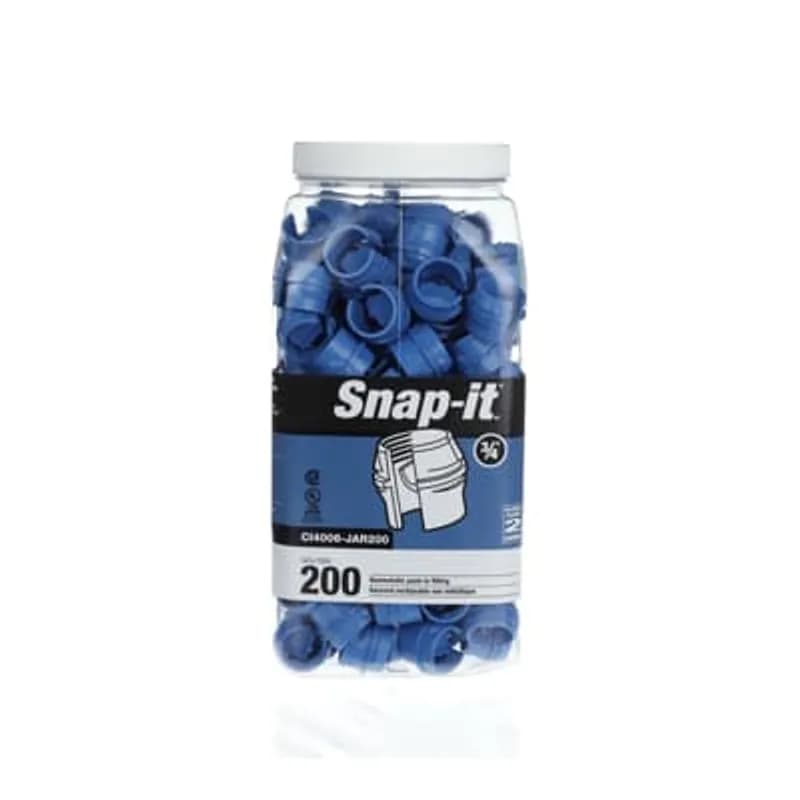

ABB - Installation Products CI4006-JAR200 - Connector, Non-Metallic Sheathed Cable, Size 3/4 Inch, Total Length 15/16 Inch, Width 7/8 Inch, Clamping Range Minimum 0.22 Inch to Maximum 0.65 Inch, Non-Metallic, Suggested Application 12/2-10/2-8/2-6/2, 14/3-12/3-10/3-8/3-6/3, 2 cables: 2 x 12/2 - 2 x 10/2, 1 x 12/2 + 1 x 10/2, Pack of 200
More images

ABB Installation Products CI4006-JAR200 Connector, Non-Metallic Sheathed Cable, Size 3/4 Inch, Total Length 15/16 Inch, Width…

UPC: 622538130846


Documents & Media
Manufacturer Product Website

Contact for Pricing

Minimum Qty: 200

Multiplier: 200

*Contact for lower quantities*

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The ABB CI4006-JAR200 connector is designed for secure and reliable termination of non-metallic sheathed cables. Manufactured by ABB Installation Products, this connector is specifically engineered for applications requiring robust cable management. Its non-metallic construction offers excellent resistance to corrosion and environmental factors, making it suitable for a variety of industrial and commercial settings. This connector features a 3/4 inch trade size and a total length of 15/16 inch with a width of 7/8 inch. The clamping range is adjustable, accommodating cable diameters from a minimum of 0.22 inch to a maximum of 0.65 inch. This flexibility allows for secure gripping of various cable sizes, ensuring a stable connection. The suggested applications for the CI4006-JAR200 include single cables such as 12/2, 10/2, 8/2, and 6/2 gauge non-metallic sheathed cables, as well as 14/3, 12/3, 10/3, 8/3, and 6/3 gauge cables. It is also capable of securing multiple cables, such as two 12/2 cables, two 10/2 cables, or a combination of one 12/2 and one 10/2 cable. This versatility makes it an efficient solution for bundling and securing multiple conductors.
  • Non-metallic sheathed cable connector for secure terminations
  • 3/4 Inch trade size with 15/16 Inch total length
  • Adjustable clamping range from 0.22 to 0.65 inches
  • Suitable for single cables (12/2 to 6/2, 14/3 to 6/3) and multiple cables
  • Pack of 200 units for project efficiency

Specifications

Color
Blue
Housing Material
Plastic
Material
Non-Metallic
Size
3/4 Inch
Wire Size
12/2 to 6/2, 14/3 to 6/3
Package Dimensions (L x W x H)
7.5 IN x 5 IN x 10.75 IN
Package Dimensions (L x W x H)
19.05 cm x 12.7 cm x 27.305 cm
Package Weight (Imperial)
0.0100 L
Package Weight (Metric)
0.0050 kg
Connector, Non-Metallic Sheathed Cable, Size 3/4 Inch, Total Length 15/16 Inch, Width 7/8 Inch, Clamping Range Minimum 0.22 Inch to Maximum 0.65 Inch, Non-Metallic, Suggested Application 12/2-10/2-8/2-6/2, 14/3-12/3-10/3-8/3-6/3, 2 cables: 2 x 12/2 - 2 x 10/2, 1 x 12/2 + 1 x 10/2, Pack of 80

CI4006-JAR80

Connector, Non-Metallic Sheathed Cable, Size 3/4 Inch, Total Length 15/16 Inch, Width 7/8 Inch, Clamping Range Minimum 0.22 Inch to Maximum 0.65 Inch, Non-Metallic, Suggested Application 12/2-10/2-8/2-6/2, 14/3-12/3-10/3-8/3-6/3, 2 cables: 2 x 12/2 - 2 x 10/2, 1 x 12/2 + 1 x 10/2, Pack of 80
The Easy-Twist WWC-B-C 100-Count Bag of Blue Winged Wire Connectors are designed for use on copper wires in the 14-6 AWG size range. They’re made of flame-retardant thermoplastic rated for a maximum temperature of 105Ëš Celsius (221Ëš Fahrenheit). The quick-grip square spring design grips in fewer twists and can dead-end a single wire, while the ergonomic swept-back wing design and ribbed texture makes them easy to twist. Their compact design is useful for applications in tight areas or anywhere else you need to connect wires.Â

WWC-B-C

The Easy-Twist WWC-B-C 100-Count Bag of Blue Winged Wire Connectors are designed for use on copper wires in the 14-6 AWG size range. They’re made of flame-retardant thermoplastic rated for a maximum temperature of 105Ëš Celsius (221Ëš Fahrenheit). The quick-grip square spring design grips in fewer twists and can dead-end a single wire, while the ergonomic swept-back wing design and ribbed texture makes them easy to twist. Their compact design is useful for applications in tight areas or anywhere else you need to connect wires.Â
StrongHold EV14-8FB-Q Contractor Grade Insulated Fork Terminals are a reliable and economical option that withstand a wide range of general-purpose applications. The fork design provides for fast and easy installation, without the need to remove fastener. Accommodates 16-14 AWG, compatible with #8 Stud (M4), are blue in color, and come in packages of 25.

EV14-8FB-Q

StrongHold EV14-8FB-Q Contractor Grade Insulated Fork Terminals are a reliable and economical option that withstand a wide range of general-purpose applications. The fork design provides for fast and easy installation, without the need to remove fastener. Accommodates 16-14 AWG, compatible with #8 Stud (M4), are blue in color, and come in packages of 25.
Rectangular Power Connectors, Housing, Plug, Wire-to-Board / Wire-to-Panel / Wire-to-Wire, 6 Position, 4.2 mm [.165 in] Centerline, AMP MR

1-640520-0

Rectangular Power Connectors, Housing, Plug, Wire-to-Board / Wire-to-Panel / Wire-to-Wire, 6 Position, 4.2 mm [.165 in] Centerline, AMP MR
Aluminum Splice, Length 4.000 inch, Barrel Inside Diameters .594 and .340 inch, Both Barrel depths 1.880 inch. Outside Diameter .906 inch.

PU 9W109859309 PS401

Aluminum Splice, Length 4.000 inch, Barrel Inside Diameters .594 and .340 inch, Both Barrel depths 1.880 inch. Outside Diameter .906 inch.
Aluminum Splice, Length 6.000 inch, Both Barrel Inside Diameters .421 inch, Both Barrel depths 2.921 inch. Outside Diameter .640 inch.

PU 9W109859204 PNK00

Aluminum Splice, Length 6.000 inch, Both Barrel Inside Diameters .421 inch, Both Barrel depths 2.921 inch. Outside Diameter .640 inch.
Tin Plated Aluminum Pin Terminal. Pin .364 Diameter, 10 inch length, with (2) 90 Degrees bends. Side Lengths 4.937, 3.250 and 3.00 inches. Body 2.625 Length x .906 inch Diameter, Bores .347 Diameter x 1.062 inch long for the Tap 3/8-16 UNC-2B Threaded Stud, and .420 Diameter x 1.0 inch long. Red Caps.

PT 6487 OF

Tin Plated Aluminum Pin Terminal. Pin .364 Diameter, 10 inch length, with (2) 90 Degrees bends. Side Lengths 4.937, 3.250 and 3.00 inches. Body 2.625 Length x .906 inch Diameter, Bores .347 Diameter x 1.062 inch long for the Tap 3/8-16 UNC-2B Threaded Stud, and .420 Diameter x 1.0 inch long. Red Caps.
Aluminum Overhead Transformer Eyebolt Multi-Tap Set Screw Connectors, length 3-5/8 inch, stud size 3/4 X 4 1/2, cable range 6-500, outlets 2. A - Anodized Screw.

ABP 2500 A

Aluminum Overhead Transformer Eyebolt Multi-Tap Set Screw Connectors, length 3-5/8 inch, stud size 3/4 X 4 1/2, cable range 6-500, outlets 2. A - Anodized Screw.

Frequently Asked Questions

What is the clamping range for this connector?

The clamping range for the CI4006-JAR200 connector is from a minimum of 0.22 inches to a maximum of 0.65 inches.

What cable sizes can this connector accommodate?

It can accommodate single cables like 12/2, 10/2, 8/2, 6/2, 14/3, 12/3, 10/3, 8/3, and 6/3. It also supports multiple cables such as 2 x 12/2 or 1 x 12/2 + 1 x 10/2.

What is the trade size of the ABB CI4006-JAR200 connector?

The ABB CI4006-JAR200 connector has a trade size of 3/4 inch.

How many connectors are included in a pack?

Each pack of the CI4006-JAR200 contains 200 connectors.

What material is the CI4006-JAR200 connector made from?

The CI4006-JAR200 connector is made from a non-metallic material.
