ABB - Installation Products CFK 250 HSHSS - Aluminum Multi-Port Connectors - 95 Series Terminal Kits, Heat Shrink kit, concentric 250, compressed 250, compact 300, die reference 840,324,249,658,TX,76,11A, with Stainless Steel Hardware. Hex Headed Bolt

ABB Installation Products CFK 250 HSHSS Aluminum Multi-Port Connectors - 95 Series Terminal Kits, Heat Shrink kit, concentric…

UPC: 783786712533

Documents & Media
Installation InstructionsManufacturer Product Website

Contact for Pricing

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

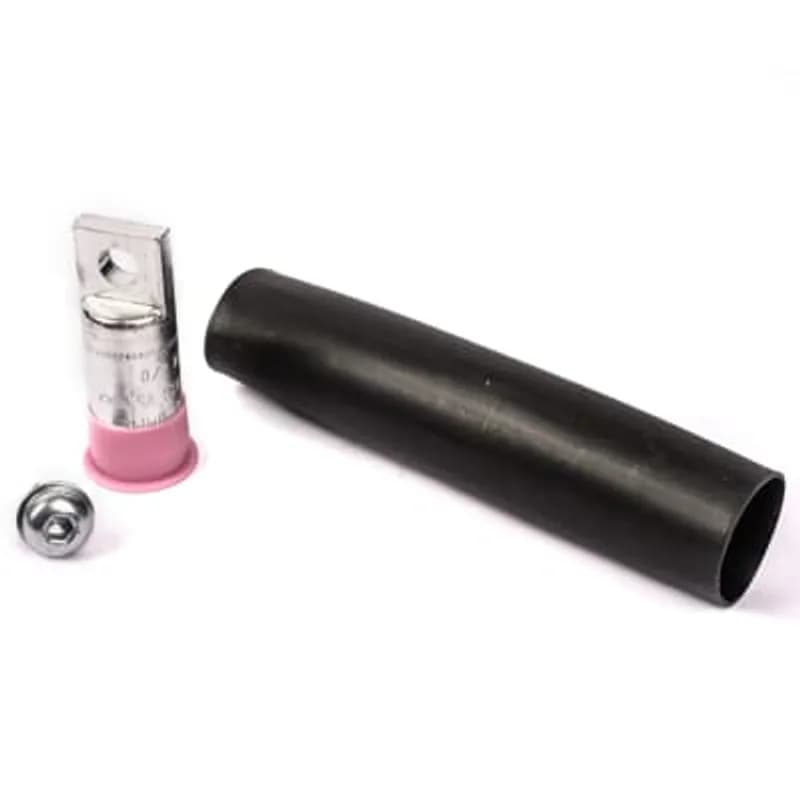

The ABB Installation Products CFK 250 HSHSS is a 95 Series Aluminum Multi-Port Connector Kit designed for reliable electrical connections. This kit features a heat shrink connection type, ensuring a secure and environmentally sealed termination. The aluminum construction provides excellent conductivity and corrosion resistance, suitable for various industrial applications. This specific model is configured for 250 size conductors and utilizes a 250 poles configuration. The kit includes stainless steel hardware with hex-headed bolts for robust and durable fastening. Die reference information for this connector includes 840, 324, 249, 658, TX, 76, and 11A, facilitating precise application and compatibility. The compressed size is rated at 250, and the compact size is rated at 300, indicating its physical dimensions and suitability for different installation spaces. The inclusion of heat shrink tubing offers an added layer of protection against moisture, dust, and vibration, making it ideal for environments where connection integrity is paramount. This connector kit is part of ABB's extensive range of installation products, known for their quality and performance in electrical infrastructure. The SKU CFK 250 HSHSS signifies a specific configuration within the 95 Series, tailored for applications requiring a 250 size aluminum connector with heat shrink termination and stainless steel hardware. The UNSPSC code for this product is 39121443, categorizing it within electrical connectors and accessories. When specifying connections for power distribution, industrial machinery, or infrastructure projects, the CFK 250 HSHSS offers a dependable solution for joining conductors efficiently and securely. The hex-headed bolt design ensures a strong mechanical connection, while the heat shrink provides electrical insulation and environmental sealing.
  • ABB 95 Series Aluminum Multi-Port Connector Kit
  • Heat Shrink Connection Type for secure termination
  • 250 Size, 250 Poles configuration
  • Includes Stainless Steel Hardware with Hex Headed Bolts
  • Die reference: 840, 324, 249, 658, TX, 76, 11A

Specifications

Application
Multi-port Connector
Color
Black
Conductor Range
250 kcmil , 300 kcmil
Connection
Compression
Insulation
yes
Material
Aluminum Lug
Mounting
Allen Head Mounting Bolt
Special Features
Three Die Sets Install the Complete Range of Lugs from #8 to 350 kcmil. Lugs Prefilled with Oxide-Inhibiting Compound and Capped to Prevent Oxidation and Keep out Moisture. Heat Shrink Tubing
Type
Flood Seal Multi Port Heat Shrink Fit Connector
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
1.0000 L
Package Weight (Metric)
0.4540 kg
Aluminum Compression Lug Heat-Shrink Kit, Containing (1) Aluminum Lug 250 Stranded - Compressed, Installing Dies TX, 76, 249, 840, 11A, with one 13/32 inch diameter hole on 3/4 inch pad, Lug is 2-7/16 inch Long. (1) Screw, (1) Heat Shrink Tubing. Also includes Instruction Sheet. Dual Rated for Aluminum and Copper Conductors

CFK 250 HS

Aluminum Compression Lug Heat-Shrink Kit, Containing (1) Aluminum Lug 250 Stranded - Compressed, Installing Dies TX, 76, 249, 840, 11A, with one 13/32 inch diameter hole on 3/4 inch pad, Lug is 2-7/16 inch Long. (1) Screw, (1) Heat Shrink Tubing. Also includes Instruction Sheet. Dual Rated for Aluminum and Copper Conductors
Aluminum Multi-Port Connectors - 95 Series Terminal Kits, Heat Shrink kit, concentric 4/0, compressed 4/0, compact 250, die reference 840,324,249,658,TX,76,11A, with Stainless Steel Hardware Hex Headed Bolt

CFK 4/0 HSHSS

Aluminum Multi-Port Connectors - 95 Series Terminal Kits, Heat Shrink kit, concentric 4/0, compressed 4/0, compact 250, die reference 840,324,249,658,TX,76,11A, with Stainless Steel Hardware Hex Headed Bolt
Tin Plated Aluminum Flood-Seal 125 Series Connectors - one-way configuration, two-bolt design with 1.75 Center to Center Spacing, width 3.5 inch, Length 4.625 inch (Not counting Rockets). Outlets 2, includes Screws. Assembled with (2) EPDM Rubber Rockets

FSN 2-125 TNAWR

Tin Plated Aluminum Flood-Seal 125 Series Connectors - one-way configuration, two-bolt design with 1.75 Center to Center Spacing, width 3.5 inch, Length 4.625 inch (Not counting Rockets). Outlets 2, includes Screws. Assembled with (2) EPDM Rubber Rockets
Aluminum Flood-Seal 125 Series Connectors - two-way configuration, two-bolt design with 1.75 inch Center to Center spacing, length 10 inch, Width 3.125 inch. Outlets 4, PVC Coating. Includes Screws. Assembled with Rockets

FSN 22 AWR

Aluminum Flood-Seal 125 Series Connectors - two-way configuration, two-bolt design with 1.75 inch Center to Center spacing, length 10 inch, Width 3.125 inch. Outlets 4, PVC Coating. Includes Screws. Assembled with Rockets
Aluminum Flood-Seal 125 Series Connectors - two-way configuration, two-bolt design with 1.75 inch Center to Center spacing, length 10 inch, Width 3.125 inch. Outlets 4, PVC Coating. Includes Screws.

FSN 22

Aluminum Flood-Seal 125 Series Connectors - two-way configuration, two-bolt design with 1.75 inch Center to Center spacing, length 10 inch, Width 3.125 inch. Outlets 4, PVC Coating. Includes Screws.
Aluminum Flood-Seal 125 Series Connectors - two-way configuration, two-bolt design with 1.75 inch Center to Center spacing, length 10 inch, Width 5 inch. Outlets 6, PVC Coating. Includes Screws.

FSN 33

Aluminum Flood-Seal 125 Series Connectors - two-way configuration, two-bolt design with 1.75 inch Center to Center spacing, length 10 inch, Width 5 inch. Outlets 6, PVC Coating. Includes Screws.
Aluminum Flood-Seal 125 Series Connectors - one-way configuration, two-bolt design with 1.75 Center to Center Spacing, width 3.5 inch, Length 4.625 inch. Outlets 2, includes Screws.

FSN 2-125

Aluminum Flood-Seal 125 Series Connectors - one-way configuration, two-bolt design with 1.75 Center to Center Spacing, width 3.5 inch, Length 4.625 inch. Outlets 2, includes Screws.
Aluminum Flood-Seal 125 Series Connectors - one-way configuration, two-bolt design with 1.75 inch Center to Center spacing, width 7-1/4 inch, Length 4.625 inch, Outlets 4, Santoprene/EPDM Rubber Coating, includes Screws.

FSN 4-125

Aluminum Flood-Seal 125 Series Connectors - one-way configuration, two-bolt design with 1.75 inch Center to Center spacing, width 7-1/4 inch, Length 4.625 inch, Outlets 4, Santoprene/EPDM Rubber Coating, includes Screws.

How to Install FLOOD-SEAL 95 Heat Shrink Connector Kits

This guide provides step-by-step instructions for installing Thomas & Betts FLOOD-SEAL 95 Heat Shrink Type Connector Kits, ensuring a secure and sealed electrical connection for various conductor sizes.

Estimated time: 30m

Tools needed:

Wire strippers, Wire brush, Crimping tool, Wrench, Butane torch, Propane torch, 500°F electric heat gun

Supplies needed:

FLOOD-SEAL 95 Heat Shrink Connector Kit, Electrical Cable, Joint compound

  1. Prepare Cable and Conductor

    Remove the cable insulation to the appropriate length. Thoroughly wire brush the conductor to ensure a clean surface for optimal connection.

  2. Position Heat Shrink Sleeve

    Slip the heat shrink sleeve over the prepared cable end. Ensure it is positioned far enough away from the conductor end to allow for crimping and connection.

  3. Crimp and Connect Lug

    Crimp the lug securely onto the conductor end. Wipe away any excess joint compound from the crimped area. Bolt the lug firmly to the contact pad on the FLOOD-SEAL connector bus.

  4. Position Sleeve Over Lug

    Slip the heat shrink sleeve over the crimped lug until it butts firmly against the FLOOD-SEAL connector bus, covering the connection point.

  5. Shrink Sleeve at Bus End

    Apply heat evenly to the sleeve at the connector bus end using a butane torch, propane torch, or 500°F electric heat gun. Move the heat source as visual shrinkage occurs. The seal is completed when a bead of mastic appears at the sleeve end.

  6. Shrink Sleeve Over Terminal Lug

    Working away from the connector bus, continue to apply heat and shrink the sleeve over the terminal lug. Ensure even heat application for a consistent seal.

  7. Shrink Sleeve Over Cable End

    Finally, shrink the remainder of the sleeve over the cable end. Continue applying heat evenly until a bead of mastic appears at this end, indicating a complete and watertight seal.
