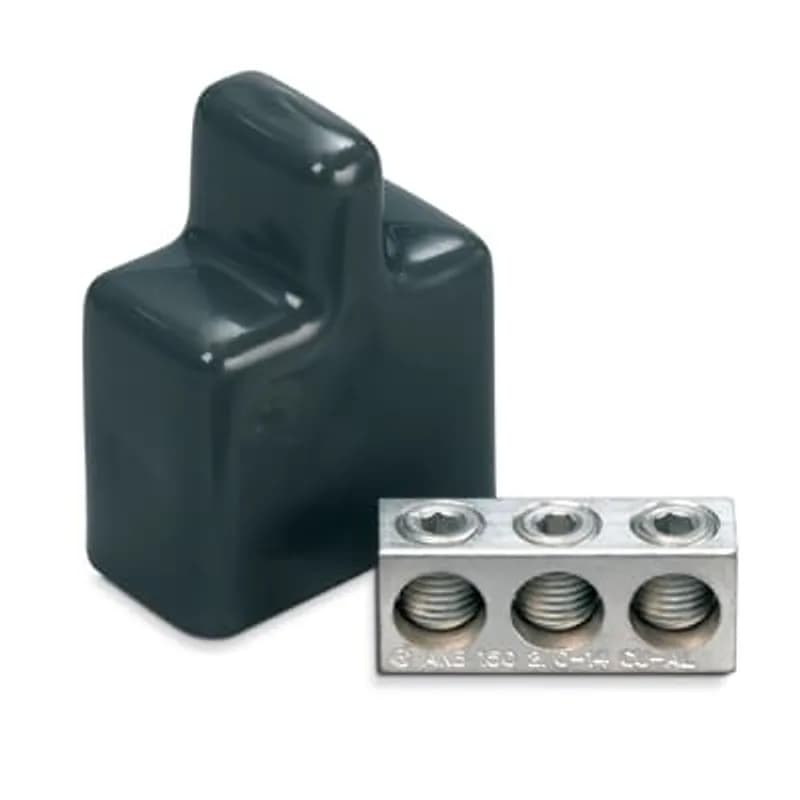

ABB - Installation Products BY 320 - BY Series PVC Insulated Street and Highway Lighting Mechanical Connectors, Conductor range 14-2/0
More images

ABB Installation Products BY 320 BY Series PVC Insulated Street and Highway Lighting Mechanical Connectors, Conductor…

UPC: 783786710249

Documents & Media
Manufacturer Product Website

Contact for Pricing

Minimum Qty: 50

Multiplier: 50

*Contact for lower quantities*

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The ABB BY Series BY 320 is a PVC insulated mechanical connector specifically designed for street and highway lighting applications. This connector is engineered to reliably join conductors within the range of 14 to 2/0 AWG. Its robust construction ensures secure electrical connections, crucial for the consistent operation of critical infrastructure like streetlights and highway illumination systems. The PVC insulation provides essential electrical protection and resistance to environmental factors common in outdoor installations. This product is part of ABB's Installation Products catalog, known for providing dependable electrical components. The BY 320 facilitates efficient and safe wiring, reducing installation time and minimizing the risk of connection failures. Its application in street and highway lighting underscores its suitability for environments requiring reliable power distribution and long-term performance. The connector's design prioritizes secure mechanical gripping of conductors, ensuring low resistance and preventing loosening over time due to vibration or thermal cycling. This is a key component for maintaining the integrity of lighting networks. The UNSPSC code 39121408 categorizes this product under electrical connectors, highlighting its specific function within the broader electrical supply chain.
  • Designed for street and highway lighting applications
  • PVC insulated for electrical protection
  • Accommodates conductor range from 14 AWG to 2/0 AWG
  • Ensures secure and reliable mechanical connections
  • From ABB Installation Products

Specifications

Application
Above Ground Application
Connection
Mechanical
Environmental Conditions
Above Ground
Insulation
Polyvinyl Chloride (PVC)
Material
PVC insulated
Special Features
Rubber Insulation. PVC Boot and Locking Insulator. Oxide Inhibitor
Type
Mechanical Connector
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
0.1300 L
Package Weight (Metric)
0.0590 kg
