ABB - Installation Products BX1114 - Type BX-ALCUL Rectangular Connectors for Conductor Range Max 1/0 Str., Min 14 CU, 12 AL
ABB - Installation Products

BX1114

UPC: 783786611409

Documents & Media
Manufacturer Product Website

Contact for Pricing

Minimum Qty: 50

Multiplier: 50

*Contact for lower quantities*

Overview

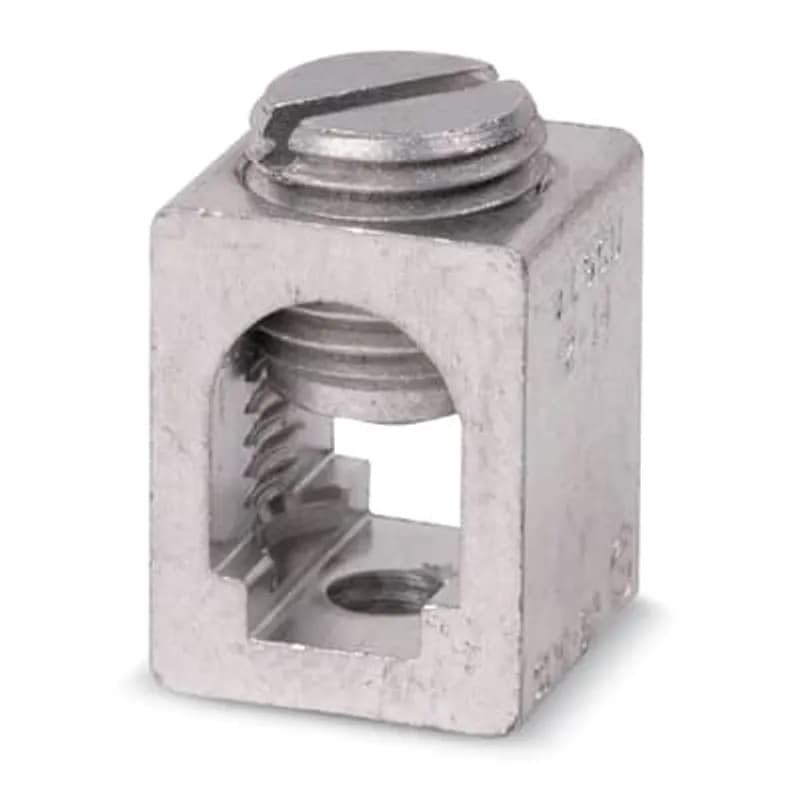

The ABB BX-ALCUL Rectangular Connector (SKU: BX1114) is designed for reliable electrical connections within industrial applications. This connector is engineered to accommodate a specific range of conductor sizes, ensuring compatibility with common wiring configurations. It supports a maximum conductor size of 1/0 AWG stranded copper and a minimum conductor size of 14 AWG copper or 12 AWG aluminum. This versatility makes it suitable for various electrical distribution and termination needs where both copper and aluminum conductors are utilized. The BX-ALCUL series connectors are built for secure and efficient wire termination. Their rectangular design facilitates straightforward installation and connection management in electrical panels, junction boxes, and other equipment. The material composition is optimized for electrical conductivity and durability in standard industrial environments. This product falls under UNSPSC code 39121408, categorizing it within electrical connectors and accessories. Key specifications include: * **Conductor Range (Max):** 1/0 AWG Stranded Copper * **Conductor Range (Min CU):** 14 AWG Copper * **Conductor Range (Min AL):** 12 AWG Aluminum
  • Accommodates conductor sizes from 14 AWG CU / 12 AWG AL up to 1/0 AWG stranded copper.
  • Rectangular connector design for efficient installation.
  • Suitable for terminating both copper and aluminum conductors.
  • Manufactured by ABB - Installation Products.
  • Part of the BX-ALCUL series for industrial electrical connections.

Specifications

Finish
Tinned
Material
Aluminum
Special Features
Easy Installation - no special tools required
Standard
UL E9809
Type
Dual-Rated
Package Dimensions (L x W x H)
5 IN x 4.5 IN x 3.2 IN
Package Dimensions (L x W x H)
12.7 cm x 11.43 cm x 8.128 cm
Package Weight (Imperial)
0.0200 L
Package Weight (Metric)
0.0090 kg
2 Port Aluminum Dual Rated Transformer Stud Connector 350 MCM -6 AWG with 5/8" Stud Aluminum dual rated transformer stud connectors are versatile and reusable set screw connectors made from 6061T-6 aluminum alloy for superior electrical and mechanical performance. Clear plated for low contact resistance- stud is tin plated copper which provides low contact resistance for connection to transformer. For use with copper and aluminum conductors. Meets or exceeds ANSI C119.4 Class A. Rated 600V. Temperature rating 90 degrees C.

TS350-2

2 Port Aluminum Dual Rated Transformer Stud Connector 350 MCM -6 AWG with 5/8" Stud Aluminum dual rated transformer stud connectors are versatile and reusable set screw connectors made from 6061T-6 aluminum alloy for superior electrical and mechanical performance. Clear plated for low contact resistance- stud is tin plated copper which provides low contact resistance for connection to transformer. For use with copper and aluminum conductors. Meets or exceeds ANSI C119.4 Class A. Rated 600V. Temperature rating 90 degrees C.
The PCSB4-3S-12Y Multi-Tap Mechanical Lug has a flexible design that can be used as a tap, splice, or dead-end Lug. Made from high strength, extruded aluminum alloy to provide premium electrical and mechanical performance. Insulated with clear PVC to eliminate the need for taping and allow for visual inspection of the complete conductor insertion. UL Listed and CSA Certified.

PCSB4-3S-12Y

The PCSB4-3S-12Y Multi-Tap Mechanical Lug has a flexible design that can be used as a tap, splice, or dead-end Lug. Made from high strength, extruded aluminum alloy to provide premium electrical and mechanical performance. Insulated with clear PVC to eliminate the need for taping and allow for visual inspection of the complete conductor insertion. UL Listed and CSA Certified.
AL 1CNDTR 1HOLE MOUNT 6-350STR TP

ADR35

AL 1CNDTR 1HOLE MOUNT 6-350STR TP
Type STC - Copper Single-Conductor, One-Hole Mount (Straight Tang), Conductor Range 8 Str-2, Length 1-15/12 Inches, Width 1/2 Inch, Height 31/32 Inch

STC0208

Type STC - Copper Single-Conductor, One-Hole Mount (Straight Tang), Conductor Range 8 Str-2, Length 1-15/12 Inches, Width 1/2 Inch, Height 31/32 Inch
Type STC - Copper Single-Conductor, One-Hole Mount (Straight Tang), Conductor Range 1/0 Str-500 kcmil, Length 3-7/8 Inches, Width 1-1/2 Inches, Height 1-13/16 Inches

STC5011

Type STC - Copper Single-Conductor, One-Hole Mount (Straight Tang), Conductor Range 1/0 Str-500 kcmil, Length 3-7/8 Inches, Width 1-1/2 Inches, Height 1-13/16 Inches
Type S - Copper End-to-End Splice Connector for Conductor Range 1 Str.-4/0 Str.

S225BB

Type S - Copper End-to-End Splice Connector for Conductor Range 1 Str.-4/0 Str.
Type STC - Copper Single-Conductor, One-Hole Mount (Straight Tang), Conductor Range 14 AWG-4 Str, Length 1-1/4 Inches, Width 1/2 Inch, Height 27/32 Inch

STC0414

Type STC - Copper Single-Conductor, One-Hole Mount (Straight Tang), Conductor Range 14 AWG-4 Str, Length 1-1/4 Inches, Width 1/2 Inch, Height 27/32 Inch
Type STC - Copper Single-Conductor, One Hole Mount (Straight Tang) for Conductor Range 1/0 Str.-350 kcmil

STC3511

Type STC - Copper Single-Conductor, One Hole Mount (Straight Tang) for Conductor Range 1/0 Str.-350 kcmil
