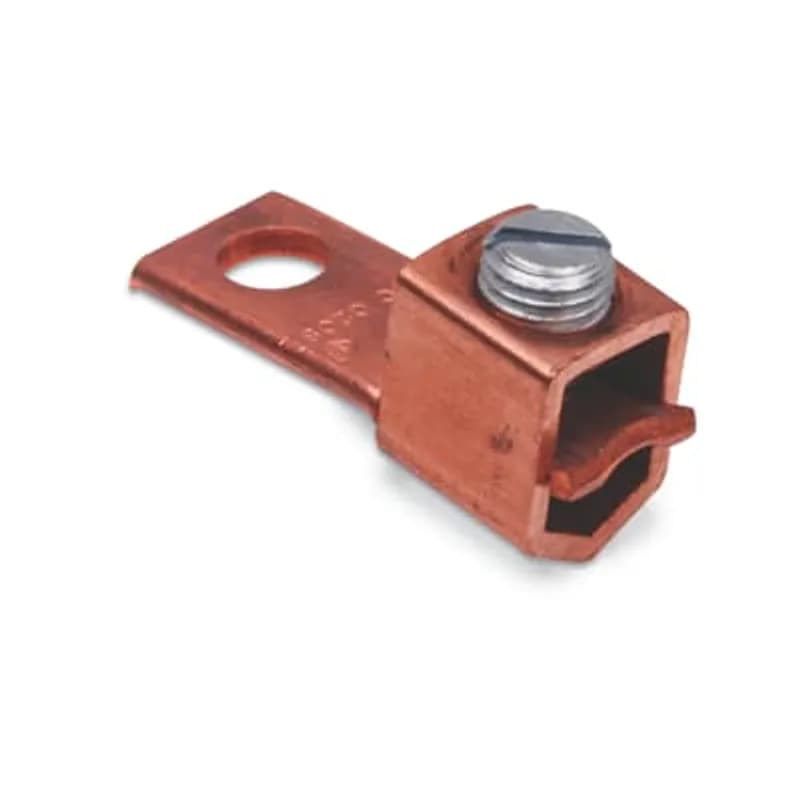

ABB - Installation Products STC0208 - Type STC - Copper Single-Conductor, One-Hole Mount (Straight Tang), Conductor Range 8 Str-2, Length 1-15/12 Inches, Width 1/2 Inch, Height 31/32 Inch

ABB Installation Products STC0208 Type STC - Copper Single-Conductor, One-Hole Mount (Straight Tang), Conductor Range 8…

UPC: 783786134236


Documents & Media
Specification SheetManufacturer Product Website

Contact for Pricing

Minimum Qty: 10

Multiplier: 10

*Contact for lower quantities*

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The ABB STC0208 is a Type STC single-conductor copper lug designed for secure electrical terminations in industrial and commercial applications. Constructed from high-conductivity copper with an electro-tin plated finish, this lug ensures reliable performance and corrosion resistance in demanding environments. The one-hole mount design with a straight tang simplifies installation onto busbars or other mounting surfaces, reducing alignment errors and installation time. The STC0208 accommodates conductor sizes from 8 AWG stranded to 2 AWG stranded, making it suitable for a wide range of wiring applications. Key dimensions include a length of 1-15/32 inches, a width of 1/2 inch, and a height of 1-1/32 inches. The lug features a compact footprint with a 3/32-inch mounting hole diameter and a 17/64-inch width across flats, optimized for secure fastening with standard tools. Designed for use in power distribution, control panels, and electrical enclosures, the STC0208 provides a dependable termination solution for single-conductor applications where electrical integrity and mechanical stability are critical.
  • Copper construction with electro-tin plating for corrosion resistance and conductivity
  • Accommodates 8 AWG stranded to 2 AWG stranded copper conductors
  • One-hole mount design with straight tang for secure busbar attachment
  • Compact dimensions: 1-15/32" L x 1/2" W x 1-1/32" H
  • Dimensions: 1-15/12" L x 1/2" W x 31/32" H

Specifications

Material
Copper
Special Features
Uniquely designed pressure bar and notched v-bottom collar provide vise-like grip between conductor and terminal
Standard
UL E9809
Type
Copper Connectors
Package Dimensions (L x W x H)
3.7 IN x 3.3 IN x 3.3 IN
Package Dimensions (L x W x H)
9.398 cm x 8.382 cm x 8.382 cm
Package Weight (Imperial)
0.0400 L
Package Weight (Metric)
0.0180 kg
U-Type Die 500Cu

BTP350-S

U-Type Die 500Cu
Locktite Copper Female Stud Connector for Conductor Range 8-4 AWG

31262

Locktite Copper Female Stud Connector for Conductor Range 8-4 AWG
Two-hole, copper, two barrel lug, straight tongue, NEMA hole sizes and spacing, #1 STR - 2/0 STR, 1/2 (12.7mm) stud hole.

H2L13-2N-2

Two-hole, copper, two barrel lug, straight tongue, NEMA hole sizes and spacing, #1 STR - 2/0 STR, 1/2 (12.7mm) stud hole.
AF26-38 STAR DELTA PUSHIN CONNECT SET

BEY38-4KF

AF26-38 STAR DELTA PUSHIN CONNECT SET
Type STC - Copper Single-Conductor, One-Hole Mount (Straight Tang), Conductor Range 1/0 Str-500 kcmil, Length 3-7/8 Inches, Width 1-1/2 Inches, Height 1-13/16 Inches

STC5011

Type STC - Copper Single-Conductor, One-Hole Mount (Straight Tang), Conductor Range 1/0 Str-500 kcmil, Length 3-7/8 Inches, Width 1-1/2 Inches, Height 1-13/16 Inches
Type S - Copper End-to-End Splice Connector for Conductor Range 1 Str.-4/0 Str.

S225BB

Type S - Copper End-to-End Splice Connector for Conductor Range 1 Str.-4/0 Str.
Type STC - Copper Single-Conductor, One-Hole Mount (Straight Tang), Conductor Range 14 AWG-4 Str, Length 1-1/4 Inches, Width 1/2 Inch, Height 27/32 Inch

STC0414

Type STC - Copper Single-Conductor, One-Hole Mount (Straight Tang), Conductor Range 14 AWG-4 Str, Length 1-1/4 Inches, Width 1/2 Inch, Height 27/32 Inch
Type STC - Copper Single-Conductor, One Hole Mount (Straight Tang) for Conductor Range 1/0 Str.-350 kcmil

STC3511

Type STC - Copper Single-Conductor, One Hole Mount (Straight Tang) for Conductor Range 1/0 Str.-350 kcmil

Frequently Asked Questions

What conductor sizes does the STC0208 support?

The STC0208 supports copper conductors from 8 AWG stranded to 2 AWG stranded.

What is the mounting hole diameter for the STC0208?

The mounting hole diameter for the STC0208 is 3/32 inches.

What is the finish on the STC0208 copper lug?

The STC0208 features an electro-tin plated finish for corrosion resistance.

What are the dimensions of the STC0208?

The STC0208 measures 1-15/32 inches in length, 1/2 inch in width, and 1-1/32 inches in height.

Is the STC0208 suitable for stranded conductors only?

The STC0208 is designed for stranded conductors in the 8 AWG to 2 AWG range.
