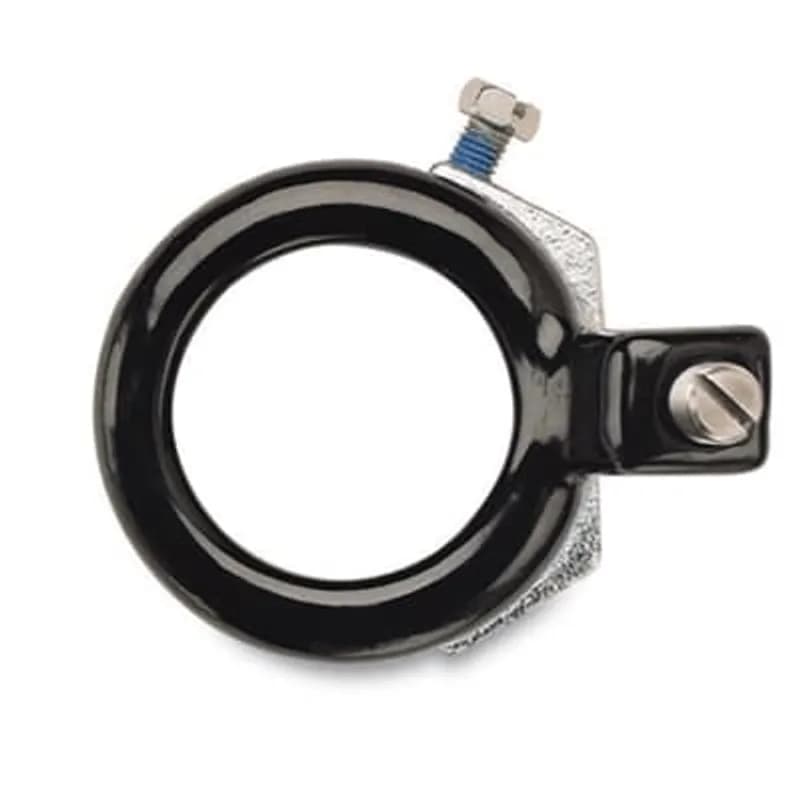

ABB - Installation Products BGA600-14-20 - 6 Inch Blackjack Grounding Bushing, Aluminum, Galvanized, Wire Range 14 to 2/0 for Use with Threaded or Threadless Rigid/IMC Conduit

ABB Installation Products BGA600-14-20 6 Inch Blackjack Grounding Bushing, Aluminum, Galvanized, Wire Range 14 to 2/0 for Use…

UPC: 786209979445


Documents & Media
Specification SheetManufacturer Product Website

Contact for Pricing

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The ABB 6 Inch Blackjack Grounding Bushing (SKU: BGA600-14-20) provides a secure and compliant grounding connection for electrical installations. Constructed from durable aluminum and galvanized steel, this bushing is designed for robust performance in industrial settings. It accommodates wire ranges from 14 AWG to 2/0 AWG, offering flexibility for various conductor sizes. This grounding bushing is compatible with both threaded and threadless rigid and Intermediate Metal Conduit (IMC) systems, ensuring broad applicability across different conduit types. Its primary function is to establish a reliable electrical path to ground, essential for safety and system integrity. The 6-inch size designation refers to the conduit it is designed to fit. This component is crucial for meeting electrical code requirements and protecting equipment and personnel from electrical faults. ABB's Installation Products division is known for providing reliable electrical infrastructure components. This grounding bushing is a key element in ensuring proper grounding continuity within electrical raceways. Its construction materials offer resistance to corrosion, contributing to its longevity in diverse environments. The design facilitates straightforward installation onto the conduit, simplifying the electrical assembly process.
  • 6-inch conduit size compatibility
  • Aluminum and galvanized steel construction
  • Supports wire range from 14 AWG to 2/0 AWG
  • Suitable for threaded and threadless rigid/IMC conduit
  • Ensures reliable grounding connection for electrical safety

Specifications

Application
For use with Rigid/IMC Conduit
Finish
Galvanized
Material
Aluminum
Size
6 Inch
Special Features
Grounding Bushings & Accessories
Standard
UL E3060, CSA
Type
Grounding Bushings & Accessories
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
1.1000 L
Package Weight (Metric)
0.4990 kg
