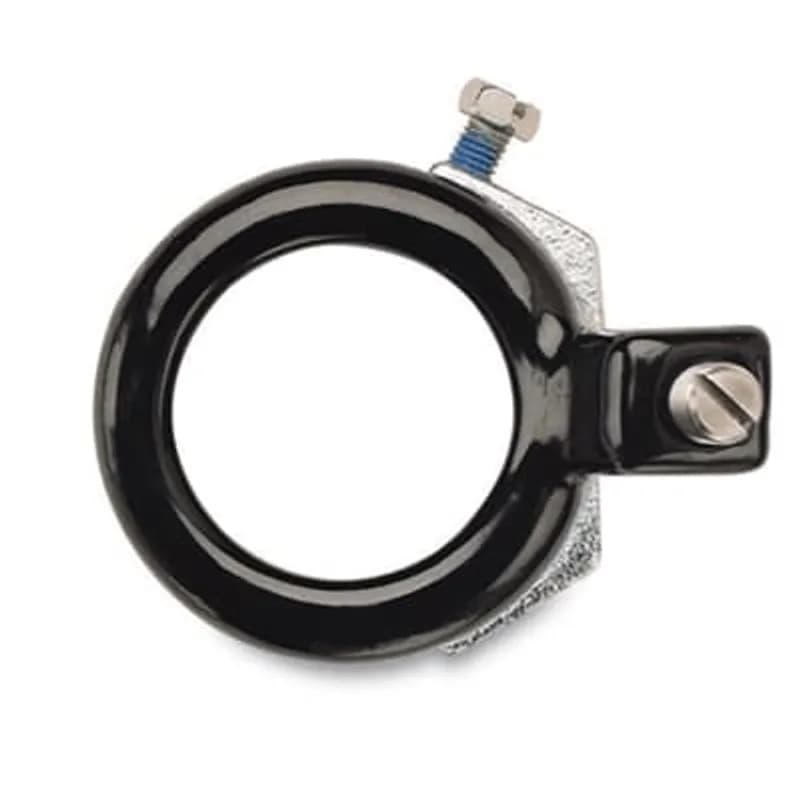

ABB - Installation Products BGA125-14-20 - 1-1/4 Inch Blackjack Grounding Bushing, Aluminum, Galvanized, Wire Range 14 to 2/0 for Use with Threaded or Threadless Rigid/IMC Conduit

ABB Installation Products BGA125-14-20 1-1/4 Inch Blackjack Grounding Bushing, Aluminum, Galvanized, Wire Range 14 to 2/0 for…

UPC: 786210162959


Documents & Media
Specification SheetManufacturer Product Website

Contact for Pricing

Minimum Qty: 10

Multiplier: 10

*Contact for lower quantities*

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The ABB Blackjack Grounding Bushing, SKU BGA125-14-20, is a crucial component for electrical installations requiring secure grounding. Manufactured by ABB Installation Products, this 1-1/4 inch bushing is constructed from durable aluminum and features a galvanized finish for enhanced corrosion resistance. It is designed to accommodate wire ranges from 14 AWG to 2/0 AWG, providing a versatile solution for various wiring needs. This grounding bushing is compatible with both threaded and threadless rigid and intermediate metal conduit (IMC) systems, ensuring broad applicability in diverse industrial and commercial settings. Its robust construction and reliable grounding capabilities make it an essential part of any safe and compliant electrical system. The BGA125-14-20 offers a straightforward method to ensure proper grounding continuity, mitigating electrical hazards and protecting equipment. Its design facilitates easy installation onto conduit, simplifying the setup process for electricians and maintenance personnel. The material selection of aluminum with a galvanized coating signifies a commitment to longevity and performance in environments where moisture and potential corrosive elements are present.
  • 1-1/4 Inch conduit size
  • Durable aluminum construction
  • Galvanized finish for corrosion resistance
  • Accommodates wire range 14 AWG to 2/0 AWG
  • Compatible with threaded or threadless rigid/IMC conduit

Specifications

Application
For use with Rigid/IMC Conduit
Color
Black
Material
Aluminum
Size
1-1/4 Inch
Standard
UL E3060, CSA
Type
Grounding Bushings & Accessories
Package Dimensions (L x W x H)
6 IN x 4 IN x 4 IN
Package Dimensions (L x W x H)
15.24 cm x 10.16 cm x 10.16 cm
Package Weight (Imperial)
0.1800 L
Package Weight (Metric)
0.0820 kg
5 Inch Blackjack Grounding Bushing, Aluminum, Galvanized, Wire Range 6 to 4/0 for Use with Threaded or Threadless Rigid/IMC Conduit

BGA500-6-40

5 Inch Blackjack Grounding Bushing, Aluminum, Galvanized, Wire Range 6 to 4/0 for Use with Threaded or Threadless Rigid/IMC Conduit
Liner, Lock - A, Polypropylene, Size 2 Inch

196

Liner, Lock - A, Polypropylene, Size 2 Inch
3 Inch Insulated Grounding Bushing, Aluminum, With Solid Copper Lug, CSA Certified, Ground Wire Size AWG 2-4/0

CI2624

3 Inch Insulated Grounding Bushing, Aluminum, With Solid Copper Lug, CSA Certified, Ground Wire Size AWG 2-4/0
Bushing for Watertight Strain Relief Connector with 2 Inch Hub Size, Calbe Range 1.125-1.375

053-71411-66

Bushing for Watertight Strain Relief Connector with 2 Inch Hub Size, Calbe Range 1.125-1.375
Gland Nut for Watertight Strain Relief Connector with 3/8 Inch to 1/2 Inch Hub Size

053-71411-37

Gland Nut for Watertight Strain Relief Connector with 3/8 Inch to 1/2 Inch Hub Size
3/4 Inch Aluminum Bushing for Use with Rigid/IMC Conduit

123AL

3/4 Inch Aluminum Bushing for Use with Rigid/IMC Conduit
1 Inch Threaded Insulated Grounding Bushing, Iron, Electro Zinc Plated, Wire Range 8 to 2/0, Thermoplastic Insulator for Use with Rigid/IMC Conduit

3882

1 Inch Threaded Insulated Grounding Bushing, Iron, Electro Zinc Plated, Wire Range 8 to 2/0, Thermoplastic Insulator for Use with Rigid/IMC Conduit
1 Inch Insulated Metallic Bushing, Aluminum, For Rigid Conduit, 100 Pieces, CSA Certified

CI2408

1 Inch Insulated Metallic Bushing, Aluminum, For Rigid Conduit, 100 Pieces, CSA Certified

Frequently Asked Questions

What wire sizes does the BGA125-14-20 grounding bushing support?

The BGA125-14-20 grounding bushing supports wire ranges from 14 AWG to 2/0 AWG.

What type of conduit is compatible with this grounding bushing?

This grounding bushing is designed for use with both threaded and threadless rigid and IMC conduit.

What material is the ABB BGA125-14-20 grounding bushing made from?

The ABB BGA125-14-20 grounding bushing is constructed from aluminum with a galvanized finish.

What is the conduit size for the BGA125-14-20 grounding bushing?

The BGA125-14-20 grounding bushing is designed for 1-1/4 inch conduit.
