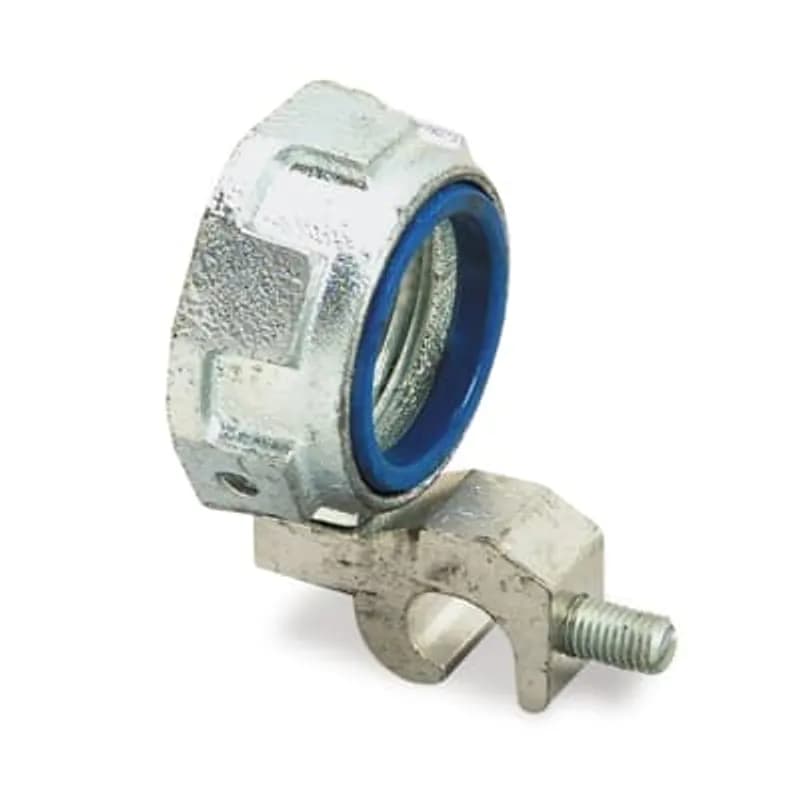

- 1 Inch Threaded Insulated Grounding Bushing
- Durable Iron Construction with Electro Zinc Plating
- Thermoplastic Insulator for Electrical Safety
- Accommodates Wire Range 8 to 2/0 AWG
- Designed for Use with Rigid/IMC Conduit
Specifications
Application | For Quick Installation of Bonding Jumper to Multiple Metal Conduits (Rigid and IMC) |
Connection Type | Threaded |
Material | Malleable Iron |
Material | Iron, Electro Zinc Plated |
Size | 1 Inch |
Size | 1-Inch |
Standard | UL E3060, CSA |
Type | Grounding Bushings & Accessories |
Package Dimensions (L x W x H) | 6 IN x 5 IN x 4 IN |
Package Dimensions (L x W x H) | 15.24 cm x 12.7 cm x 10.16 cm |
Package Weight (Imperial) | 0.2100 L |
Package Weight (Metric) | 0.0950 kg |
67441
1" rigid floor flange plates made of malleable iron with a zinc-plated finish. The sheet identifies this as catalog number 67441. Packaged box/10.
Frequently Asked Questions
What is the wire range for this grounding bushing?
The ABB 3882 insulated grounding bushing accommodates wire ranges from 8 AWG to 2/0 AWG.
What type of conduit is this bushing compatible with?
This grounding bushing is designed for use with both rigid conduit and intermediate metal conduit (IMC).
What material is the ABB 3882 grounding bushing made of?
The ABB 3882 grounding bushing is constructed from iron with an electro-zinc plated finish.
What is the purpose of the thermoplastic insulator?
The thermoplastic insulator provides electrical isolation, ensuring safety in grounding applications.
What is the thread size of this grounding bushing?
The ABB 3882 is a 1-inch threaded insulated grounding bushing.
How to Install the 3882 Insulated Grounding Bushing
This guide provides step-by-step instructions for installing the 3882 insulated grounding bushing, covering threading onto conduit, securing with a set screw, and connecting the bonding jumper with specified torque values.
Estimated time: 15m
Tools needed:
Screwdriver, Torque wrench, Wrench
Supplies needed:
3882 Insulated Grounding Bushing, Conduit, Bonding jumper, Copper or aluminum wire
- Thread the Bushing onto Conduit
Thread the 3882 insulated grounding bushing onto the conduit until it bottoms. If necessary, the bushing may be backed off slightly to align the lay-in lug in the desired position.
- Secure the Bushing
Tighten the set screw to firmly secure the bushing onto the conduit, ensuring a stable and proper installation.
- Install and Torque the Bonding Jumper
Install the bonding jumper (not supplied) into the lay-in lug. Torque the wire clamping screw to the specified values from the torque table: 120 Lb.In for 8-2/0 AWG copper (CU) conductors, or 35 Lb.In for 8-2/0 AWG aluminum (AL) stranded conductors.
