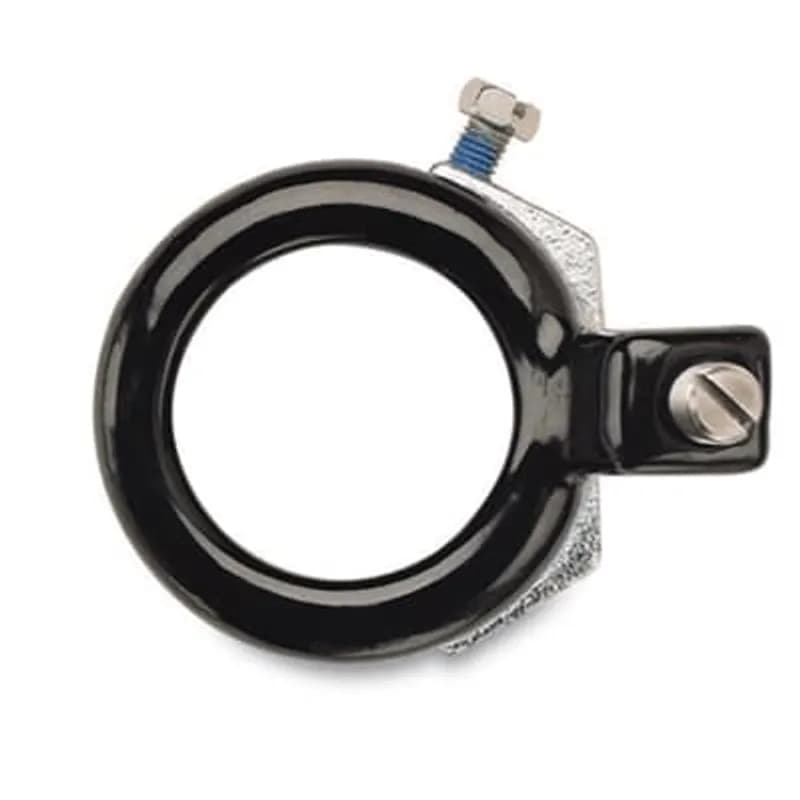

ABB - Installation Products BGA500-6-40 - 5 Inch Blackjack Grounding Bushing, Aluminum, Galvanized, Wire Range 6 to 4/0 for Use with Threaded or Threadless Rigid/IMC Conduit

ABB Installation Products BGA500-6-40 5 Inch Blackjack Grounding Bushing, Aluminum, Galvanized, Wire Range 6 to 4/0 for Use…

UPC: 786210163079


Documents & Media
Specification SheetManufacturer Product Website

Contact for Pricing

Minimum Qty: 5

Multiplier: 5

*Contact for lower quantities*

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The ABB Installation Products BGA500-6-40 5 Inch Blackjack Grounding Bushing is a galvanized aluminum grounding bushing engineered for use with threaded or threadless Rigid and IMC conduit systems. Designed for wire ranges from 6 AWG to 4/0 AWG, this bushing provides a secure and reliable grounding solution for electrical installations requiring a 5-inch grounding bushing. The Blackjack Grounding Bushing eliminates the need for threading onto the conduit, simplifying installation in tight spaces, corners, and multiple conduit runs. Its integral, cast-on grounding lug ensures superior ground continuity and cannot be lost or misplaced during installation. The cone-point mounting screw with a nylon locking patch secures the bushing firmly to both threaded and non-threaded conduits, preventing loosening due to vibration. This bushing accommodates conduit sizes from ½" through 6" and accepts both copper and aluminum ground wires. The mounting screw is stainless steel for durability, and the body is constructed from corrosion-resistant aluminum with a galvanized finish. The lug screw is also stainless steel, ensuring long-term reliability in industrial and commercial applications. By reducing the need for multiple part numbers, the Blackjack Grounding Bushing helps streamline inventory management without sacrificing application coverage. The BGA500-6-40 is a direct replacement for applications requiring a 5-inch grounding bushing with the specified wire range and conduit compatibility.
  • 5-inch size for conduit systems requiring a 5" grounding bushing
  • Accommodates wire ranges from 6 AWG to 4/0 AWG (Cu/Al)
  • Compatible with threaded or threadless Rigid and IMC conduits (½"–6")
  • Integral cast-on grounding lug for superior ground continuity
  • Cone-point mounting screw with nylon locking patch prevents loosening from vibration

Specifications

Application
For use with Rigid/IMC Conduit
Color
Black
Finish
Galvanized
Material
Aluminum
Material
Aluminum, Galvanized
Size
5 Inch
Special Features
Grounding Bushings & Accessories
Standard
UL E3060, CSA
Type
Grounding Bushings & Accessories
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
0.6000 L
Package Weight (Metric)
0.2720 kg
