ABB - Installation Products ASR2506-B1-10 - Type ASE-ALCUL Aluminum Dual Rated Splice Reducer with Solid Barrier Wire Stop for Conductor Range #6-250 kcmil

ABB Installation Products ASR2506-B1-10 Type ASE-ALCUL Aluminum Dual Rated Splice Reducer with Solid Barrier Wire Stop for…

UPC: 783786070350

Documents & Media
Manufacturer Product Website

Contact for Pricing

Minimum Qty: 10

Multiplier: 10

*Contact for lower quantities*

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

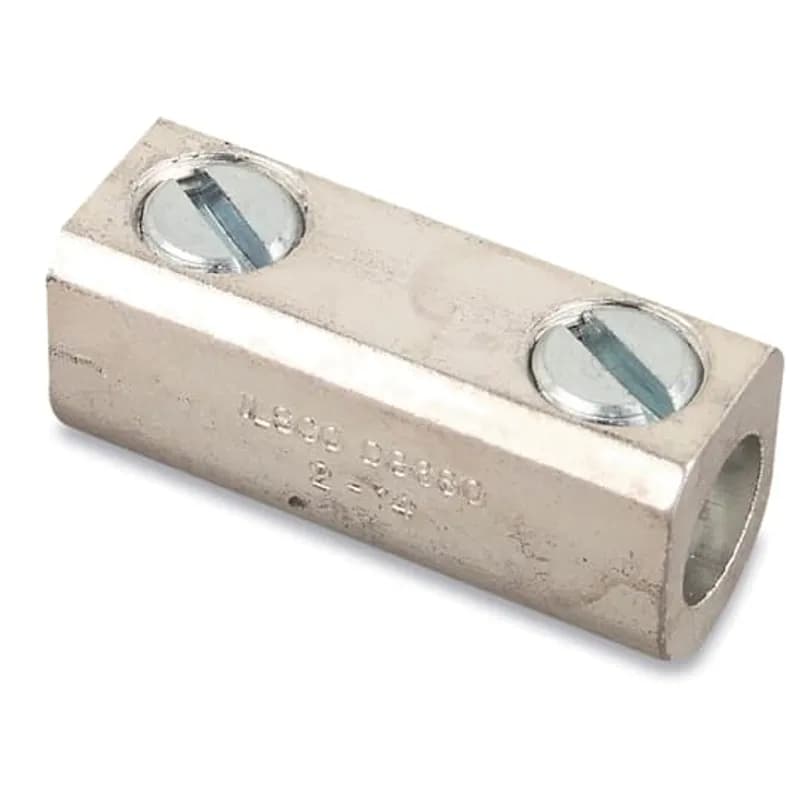

The ABB ASR2506-B1-10 is a Type ASE-ALCUL Aluminum Dual Rated Splice Reducer designed for reliable electrical connections. Manufactured by ABB Installation Products, this reducer is engineered to bridge conductor sizes from #6 AWG up to 250 kcmil, accommodating a broad range of industrial and commercial wiring applications. The integrated solid barrier wire stop is a key feature, providing a physical separation between conductors and preventing over-insertion, which is crucial for maintaining the integrity of the connection and preventing short circuits. This design element enhances safety and ensures proper termination. The ASR2506-B1-10 is part of the ASR2506-B1 series, known for its robust construction and dependable performance in electrical systems. The material, Type ASE-ALCUL Aluminum, is chosen for its excellent conductivity and resistance to corrosion, making it suitable for various environmental conditions. This splice reducer is an essential component for creating secure and efficient splices in power distribution, motor control, and other electrical infrastructure projects. Its precise engineering by ABB Installation Products guarantees that it meets stringent industry standards for electrical connectors. The SKU ASR2506-B1-10 clearly identifies this specific model, facilitating easy ordering and inventory management for electrical contractors, engineers, and facility managers. When specifying components for new installations or upgrades, the ASR2506-B1-10 offers a practical and safe solution for transitioning between different conductor sizes, ensuring a continuous and reliable electrical path. Its design prioritizes ease of use during installation while delivering long-term operational stability. The solid barrier is particularly beneficial in applications where multiple conductors are terminated in close proximity, preventing accidental contact and ensuring a clean, organized termination point.
  • Conductor range: #6 AWG to 250 kcmil
  • Features a solid barrier wire stop for safe termination
  • Constructed from Type ASE-ALCUL Aluminum for durability
  • ABB Installation Products quality and reliability

Specifications

Housing Material
Aluminun
Temperature Rating, Maximum
194 F
Temperature Rating, Maximum
90 C
Temperature Rating, Minimum
194 F
Temperature Rating, Minimum
90 C
Type
Spice Reducer
Wire Size
6-250 kcmil
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
0.1300 L
Package Weight (Metric)
0.0590 kg
