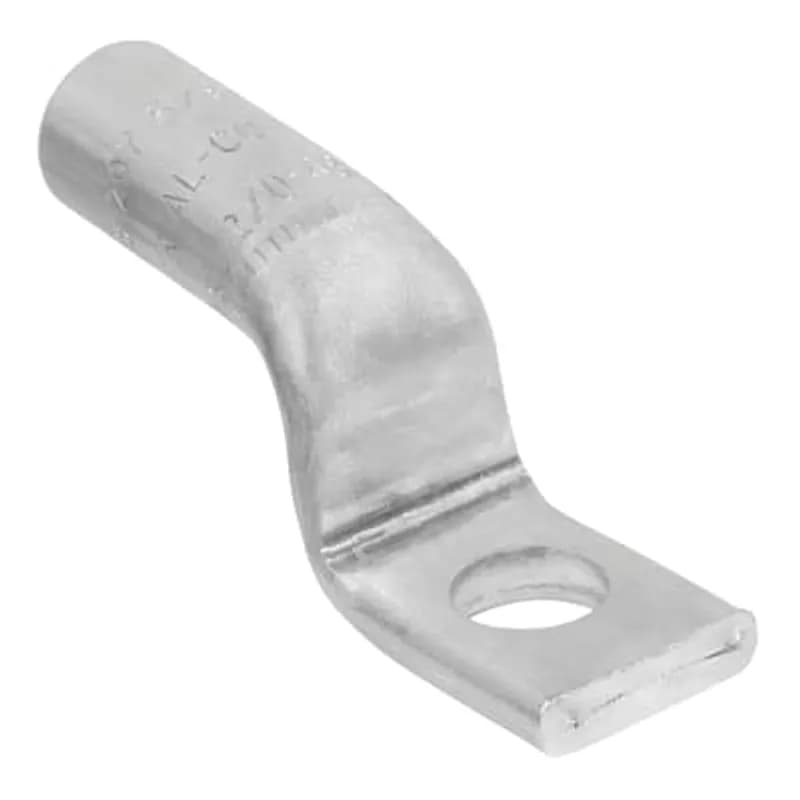

ABB - Installation Products ASL 350-48 TN - Tin-Plated Aluminum Compression Stacking Lug for Aluminum and Copper Terminations, One-Hole NEMA Pad, 350 kcmil AL-CU, 1/2 inch Bolt hole size. This part is not for stacking with AL 350-48. Length 2-17/64 inch. Pad 1-5/32 inch wide x 1-5/16 inch long x 23/64 inch thick. (1) 17/32 inch hole on pad. Barrel 1-3/4 inch long x 1-7/64 inch outside diameter. Oxide Inhibitor. Brown Cap.
ABB - Installation Products

ASL 350-48 TN

UPC: 783786696505

Documents & Media
Manufacturer Product Website

Contact for Pricing

Minimum Qty: 100

Multiplier: 100

*Contact for lower quantities*

Overview

The ABB ASL 350-48 TN is a tin-plated aluminum compression stacking lug engineered for robust and dependable terminations of both aluminum and copper conductors. This specific lug is designed for use with conductors up to 350 kcmil, accommodating both aluminum (AL) and copper (CU) conductor types. It features a single 1/2 inch bolt hole situated on a NEMA standard pad, facilitating straightforward and secure mounting with compatible hardware. To ensure optimal performance and longevity, the lug incorporates an integrated oxide inhibitor, which actively prevents corrosion and maintains consistent electrical conductivity over time. A distinctive brown cap is supplied with this product, serving as a clear identifier. The barrel of the lug extends 1-3/4 inches in length and possesses an outside diameter of 1-7/64 inches. The NEMA pad itself measures 1-5/32 inches in width and 1-5/16 inches in length, with a substantial thickness of 23/64 inches. The pad is precisely drilled with a 17/32 inch hole to accommodate the specified bolt size. It is crucial to understand that the ASL 350-48 TN is specifically designed as a stacking lug but is not intended for stacking applications with the AL 350-48 model. The overall length of this lug is 2-17/64 inches. This installation product is manufactured by ABB - Installation Products. The UNSPSC Code for this item is 39121409.
  • Tin-plated aluminum construction for AL and CU conductors
  • 350 kcmil conductor size rating
  • One-hole NEMA pad with 1/2 inch bolt hole
  • Includes oxide inhibitor for enhanced reliability
  • Barrel: 1-3/4" L x 1-7/64" OD; Pad: 1-5/32" W x 1-5/16" L x 23/64" T

Specifications

Application
General purpose lugs for Aluminum and Copper terminations
Connection
Compression
Finish
Tinned
Housing Material
Aluminum
Housing Material
Aluminium
Insulation
None
Mounting
Bolt-on
Size
4.275 inch long
Special Features
Dual rated for use with Aluminum and Copper Conductors. Prefilled with Oxide Inhibitor to prevent oxidation and keep out moisture. All lugs marked with conductor sizes and die references for easy installation
Standard
ANSI C119.4
Type
Compression Lug One Hole Stacking
Wire Size
350 kcmil
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
0.2500 L
Package Weight (Metric)
0.1130 kg
