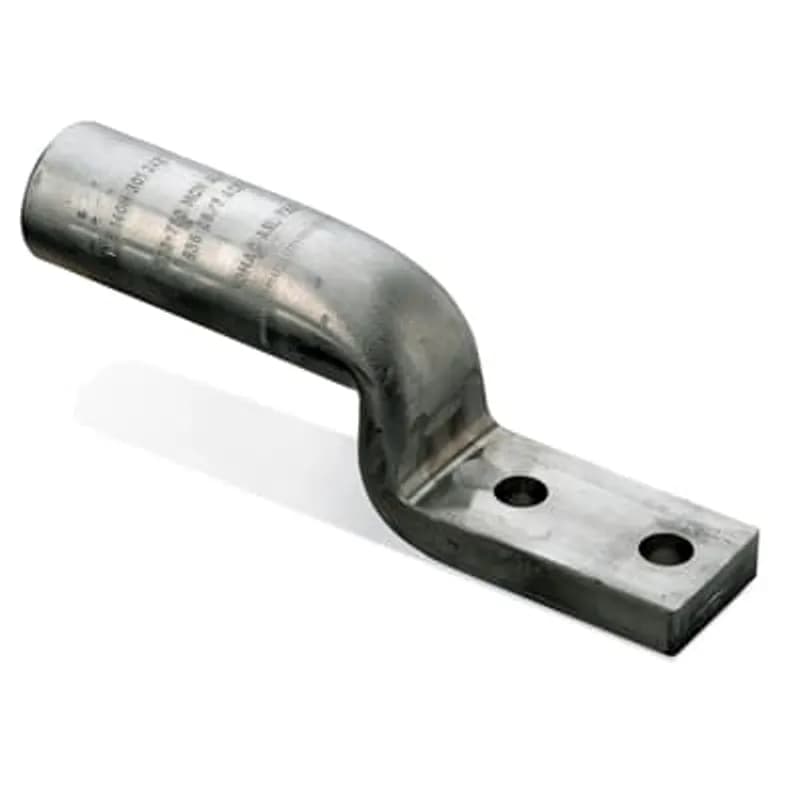

ABB - Installation Products ASL 4/0 NTNK - Tin-Plated Aluminum Two-Hole NEMA Lug Kit Containing Both a Standard Two-Hole NEMA Lug (AL 4/0 NTN) and a Stacking Two-Hole NEMA Lug (ASL 4/0 NTN). 4/0 Stranded AL9CU, 250 Compact. Installing dies TX, 71H, W660, U28ART. Use VC 5 or VC 6 Tools for #2 - 4/0 Stranded.

ABB Installation Products ASL 4/0 NTNK Tin-Plated Aluminum Two-Hole NEMA Lug Kit Containing Both a Standard Two-Hole NEMA Lug…

UPC: 783786696543


Documents & Media
Manufacturer Product Website

Contact for Pricing

Minimum Qty: 56

Multiplier: 56

*Contact for lower quantities*

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The ABB ASL 4/0 NTNK is a tin-plated aluminum two-hole NEMA lug kit designed for 4/0 stranded AL9CU, 250 compact conductors. This kit includes both a standard two-hole NEMA lug (AL 4/0 NTN) and a stacking two-hole NEMA lug (ASL 4/0 NTN), providing versatility for various electrical installations. The lugs are rated for compression connections, ensuring reliable and secure terminations in demanding applications. Key specifications include a NEMA two-hole rating, compression connection type, and compatibility with 4/0 stranded AL9CU conductors sized at 250 compact. The tin-plated aluminum construction offers corrosion resistance and long-term durability, making it suitable for use in industrial, commercial, and utility environments. Installation is straightforward with compatible dies such as TX, 71H, W660, and U28ART. For optimal performance, use VC 5 or VC 6 tools when working with #2 to 4/0 stranded conductors. This lug kit is ideal for applications requiring high-current terminations, such as motor controls, switchgear, and distribution panels. The ASL 4/0 NTNK is manufactured by ABB Installation Products, a trusted name in electrical solutions. Its design ensures compliance with NEMA standards, providing a dependable connection for critical electrical systems. Whether for new installations or maintenance, this lug kit delivers consistent performance and reliability.
  • Kit includes standard and stacking two-hole NEMA lugs
  • Compatible with 4/0 stranded AL9CU, 250 compact conductors
  • Tin-plated aluminum construction for corrosion resistance
  • Compression connection type for secure terminations
  • Use with VC 5 or VC 6 tools for #2 - 4/0 stranded conductors

Specifications

Application
General purpose lugs for Aluminum and Copper terminations
Connection
Compression
Finish
Tinned
Housing Material
Aluminum
Housing Material
Aluminium
Insulation
None
Size
6 inch long
Special Features
Dual rated for use with Aluminum and Copper Conductors. Prefilled with Oxide Inhibitor to prevent oxidation and keep out moisture. All lugs marked with conductor sizes and die references for easy installation
Standard
ANSI C119.4
Type
Compression Lug Two Hole Stacking
Wire Size
4/0 STR AWG
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
0.4200 L
Package Weight (Metric)
0.1910 kg
Tin Plated Aluminum Compression Lug, 4/0 Stranded, Aluminum and Copper, Bolt 1/2 inch, (2) 9/16 inch Diameter Holes on 1-3/4 inch Center NEMA Pad, Length 6 inch. Pad 1-3/16 inch wide x 3-3/8 inch long x 5/16 inch thick. Barrel 1-15/16 inch long x 7/8 inch Outside Diameter. Oxide inhibitor. White Cap.
