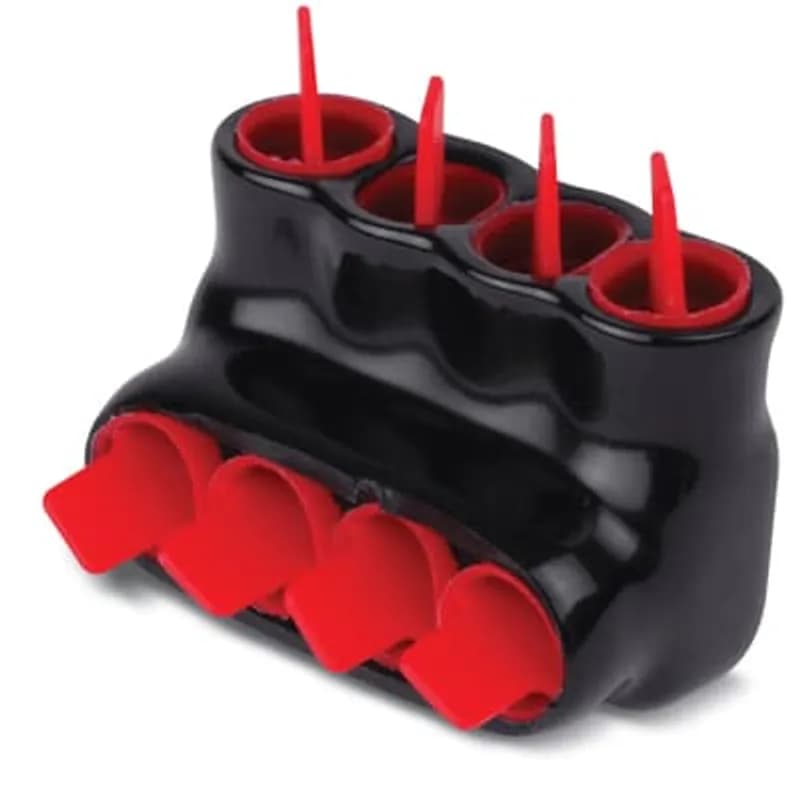

ABB - Installation Products AMTS50044 - AMT 4 Port Same Side PVC Connector, Ultraviolet Resistant, Wire Range 500 kcmil-6 Str, Length 5.26 Inches, Width 2.38 Inches, Height 2.75 Inches, Hex Size 5/16 Inch, Black Insulation
ABB - Installation Products

AMTS50044

UPC: 783786807802

Documents & Media
BrochureManufacturer Product Website

Contact for Pricing

Minimum Qty: 10

Multiplier: 10

*Contact for lower quantities*

Overview

The ABB AMT 4 Port Same Side PVC Connector (SKU: AMTS50044) is a high-capacity mechanical connector designed for reliable electrical terminations in industrial power distribution systems. Manufactured by ABB - Installation Products, this connector features a durable PVC insulation with ultraviolet resistance, ensuring long-term performance in outdoor or exposed environments where direct sunlight or harsh weather conditions are present. The same-side port configuration simplifies wiring by allowing all connections to enter from one side, reducing installation complexity and improving accessibility in tight spaces. This connector accommodates a broad wire range from 500 kcmil down to 6 AWG stranded conductors, making it suitable for heavy-duty power distribution, motor control centers, and renewable energy systems. The physical dimensions are optimized for practical installation: 5.26 inches in length, 2.38 inches in width, and 2.75 inches in height. Ideal for applications requiring weather-resistant, high-current terminations, the AMTS50044 is a versatile solution for industrial electrical contractors, utility companies, and OEMs. Its robust construction and straightforward installation process make it a dependable choice for both new installations and maintenance operations in demanding environments.
  • 4-port same-side configuration for simplified wiring
  • UV-resistant PVC insulation for outdoor durability
  • Accommodates wire range: 500 kcmil to 6 AWG stranded
  • Dimensions: 5.26" L x 2.38" W x 2.75" H
  • 5/16" hex size for secure fastening

Specifications

Color
Black
Connection Type
Hex
Material
PVC
Poles
4
Series
AMT
Size
5.26 x 2.38 x 2.75 Inches
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
1.0000 L
Package Weight (Metric)
0.4540 kg
Insulation Piercing Connector 750 MCM - 3/0 AWG Insulation piercing connectors are made for use with copper-copper, copper to aluminum and aluminum to aluminum applications. They are safe to use and are completely insulated, no need to strip wire. They can be installed on energized conductors with no contact at any point. No spacer required between connections. Exclusive "turbo spacer" keeps tap side open while main conductor is being tightened. Watertight and corrosion-free.

IPCS7501

Insulation Piercing Connector 750 MCM - 3/0 AWG Insulation piercing connectors are made for use with copper-copper, copper to aluminum and aluminum to aluminum applications. They are safe to use and are completely insulated, no need to strip wire. They can be installed on energized conductors with no contact at any point. No spacer required between connections. Exclusive "turbo spacer" keeps tap side open while main conductor is being tightened. Watertight and corrosion-free.
Copper C-Tap for 600V Applications, Wire Range Main: 2-1/0, Branch 2-12, Length 1-1/16 Inches, Height 31/32 Inch, Tin Plated, Die Code 50, Die Color Code Orange

54740TP

Copper C-Tap for 600V Applications, Wire Range Main: 2-1/0, Branch 2-12, Length 1-1/16 Inches, Height 31/32 Inch, Tin Plated, Die Code 50, Die Color Code Orange
AMT 8 Port Both Sides PVC Connector, Ultraviolet Resistant, Wire Range 350 kcmil-6 Str, Length 8.34 Inches, Width 3.0 Inches, Height 2.5 Inches, Hex Size 3/8 Inch, Black Insulation

AMTD35068

AMT 8 Port Both Sides PVC Connector, Ultraviolet Resistant, Wire Range 350 kcmil-6 Str, Length 8.34 Inches, Width 3.0 Inches, Height 2.5 Inches, Hex Size 3/8 Inch, Black Insulation
AMT 3 Port Same Side PVC Connector, Ultraviolet Resistant, Wire Range 250 kcmil-6 Str, Length 3.09 Inches, Width 2.13 Inches, Height 2.13 Inches, Hex Size 5/16 Inch

AMTS25063

AMT 3 Port Same Side PVC Connector, Ultraviolet Resistant, Wire Range 250 kcmil-6 Str, Length 3.09 Inches, Width 2.13 Inches, Height 2.13 Inches, Hex Size 5/16 Inch
AMT 4 Port Same Side PVC Connector, Ultraviolet Resistant, Wire Range 250 kcmil-6 Str, Length 4.06 Inches, Width 2.13 Inches, Height 2.13 Inches, Hex Size 5/16 Inch

AMTS25064

AMT 4 Port Same Side PVC Connector, Ultraviolet Resistant, Wire Range 250 kcmil-6 Str, Length 4.06 Inches, Width 2.13 Inches, Height 2.13 Inches, Hex Size 5/16 Inch
Type TC-Aluminum Parallel Tap Insulating Covers for Use with type GP-0 and GT-0 Aluminum Connectors, Black Thermo-Plastic, Rating 90 Degrees C and 600 Volts. Use with 3/4 inch Strip Length. Overall Length 4-31/32 inch, Folded Length 2-1/2 inch.

TC-10

Type TC-Aluminum Parallel Tap Insulating Covers for Use with type GP-0 and GT-0 Aluminum Connectors, Black Thermo-Plastic, Rating 90 Degrees C and 600 Volts. Use with 3/4 inch Strip Length. Overall Length 4-31/32 inch, Folded Length 2-1/2 inch.
Type TC-Aluminum Parallel Tap Insulating Covers for Use with type GP-2 and GT-2 Aluminum Connectors, Black Thermo-Plastic, Rating 90 Degrees C and 600 Volts. Use with 5/8 inch Strip Length. Overall Length 4-1/2 inch, Folded Length 2-1/4 inch.

TC-2

Type TC-Aluminum Parallel Tap Insulating Covers for Use with type GP-2 and GT-2 Aluminum Connectors, Black Thermo-Plastic, Rating 90 Degrees C and 600 Volts. Use with 5/8 inch Strip Length. Overall Length 4-1/2 inch, Folded Length 2-1/4 inch.
Type TC-Aluminum Parallel Tap Insulating Covers for Use with type GP-750 and GT-750 Aluminum Connectors, Black Thermo-Plastic, Rating 90 Degrees C and 600 Volts. Use with 1-1/2 inch Strip Length. Overall Length 9-3/4 inch, Folded Length 4-7/8 inch.

TC-750

Type TC-Aluminum Parallel Tap Insulating Covers for Use with type GP-750 and GT-750 Aluminum Connectors, Black Thermo-Plastic, Rating 90 Degrees C and 600 Volts. Use with 1-1/2 inch Strip Length. Overall Length 9-3/4 inch, Folded Length 4-7/8 inch.

Frequently Asked Questions

What wire sizes does the ABB AMTS50044 connector support?

The ABB AMTS50044 connector supports a wire range from 500 kcmil down to 6 Stranded.

Is the ABB AMTS50044 connector suitable for outdoor use?

Yes, the ABB AMTS50044 connector is constructed with ultraviolet (UV) resistant PVC, making it suitable for outdoor applications.

What are the physical dimensions of the ABB AMTS50044 connector?

The ABB AMTS50044 connector has a length of 5.26 inches, a width of 2.38 inches, and a height of 2.75 inches.

What type of insulation does the ABB AMTS50044 connector have?

The ABB AMTS50044 connector features black insulation.

What hex size is required for the ABB AMTS50044 connector?

A 5/16 inch hex size is required for the ABB AMTS50044 connector.
